Cisco C1101-4P Installation And Connection

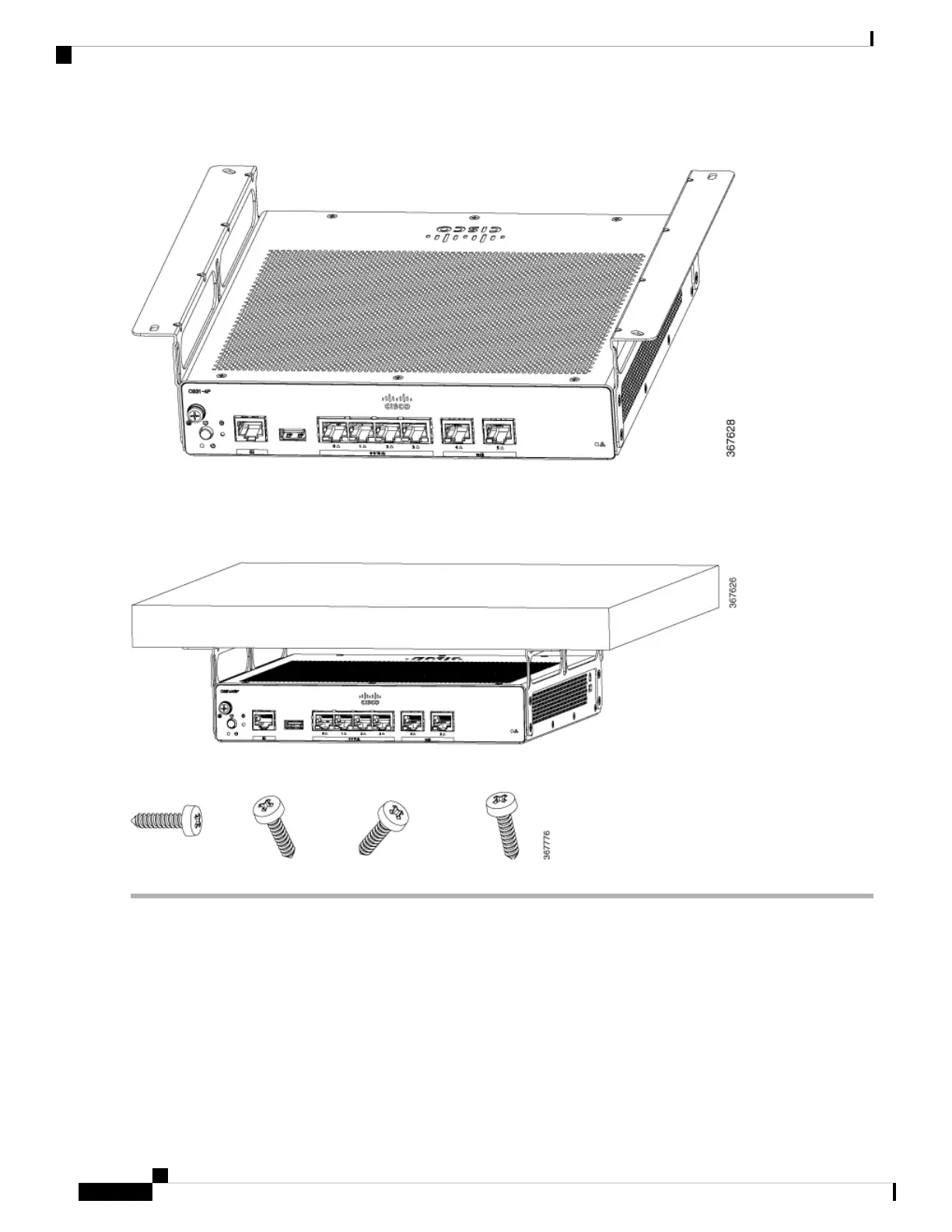

Figure 5: Router with Brackets Attached
Step 2 After the brackets are attached, drill a 2 mm hole under the desk and insert the wooden screws provided. Mount the router
under the desk or shelf using the pan-head wood screws).
Figure 6: Mounting the Router under a Desk or Shelf
Figure 7: Pan-head Wood Screws
Mount Router using DIN Rail Brackets
The router is shipped with DIN Rail brackets that are to be secured on the bottom side of the chassis. Your
chassis installation must allow unrestricted airflow for chassis cooling.
Install and Connect the Router
6
Install and Connect the Router
Mount Router using DIN Rail Brackets

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
