Cisco C1111x-8P

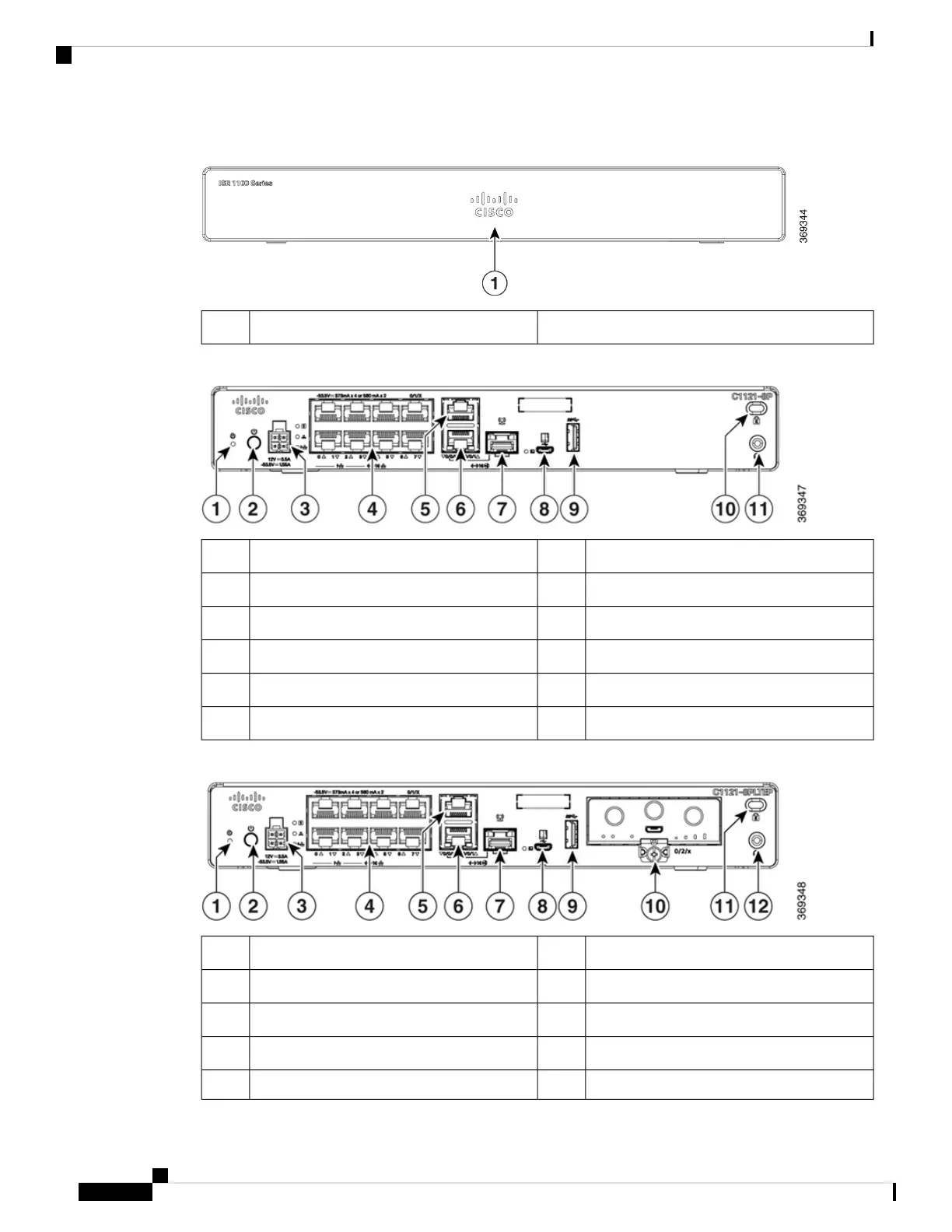

Figure 13: C1121(X)-8P - Bezel View
Non-illuminated Cisco logo1
Figure 14: C1121(X)-8P I/O View
Power switch2Reset button1
Ethernet switch44-pin power connector3
GE WAN 0/0/0 -RJ456RJ-455
Micro-USB console8GE WAN 0/0/0 -SFP7
Kensington lock slot10USB 3.09
Grounding11
Figure 15: C1121-8PLTEP I/O View
Power switch2Reset button1
Ethernet switch44-pin power connector3
GE WAN 0/0/0 -RJ456GE 0/0/15
Micro-USB console8GE WAN 0/0/0 -SFP7
Pluggable10USB 3.09
