Cisco C1111x-8P User Manual

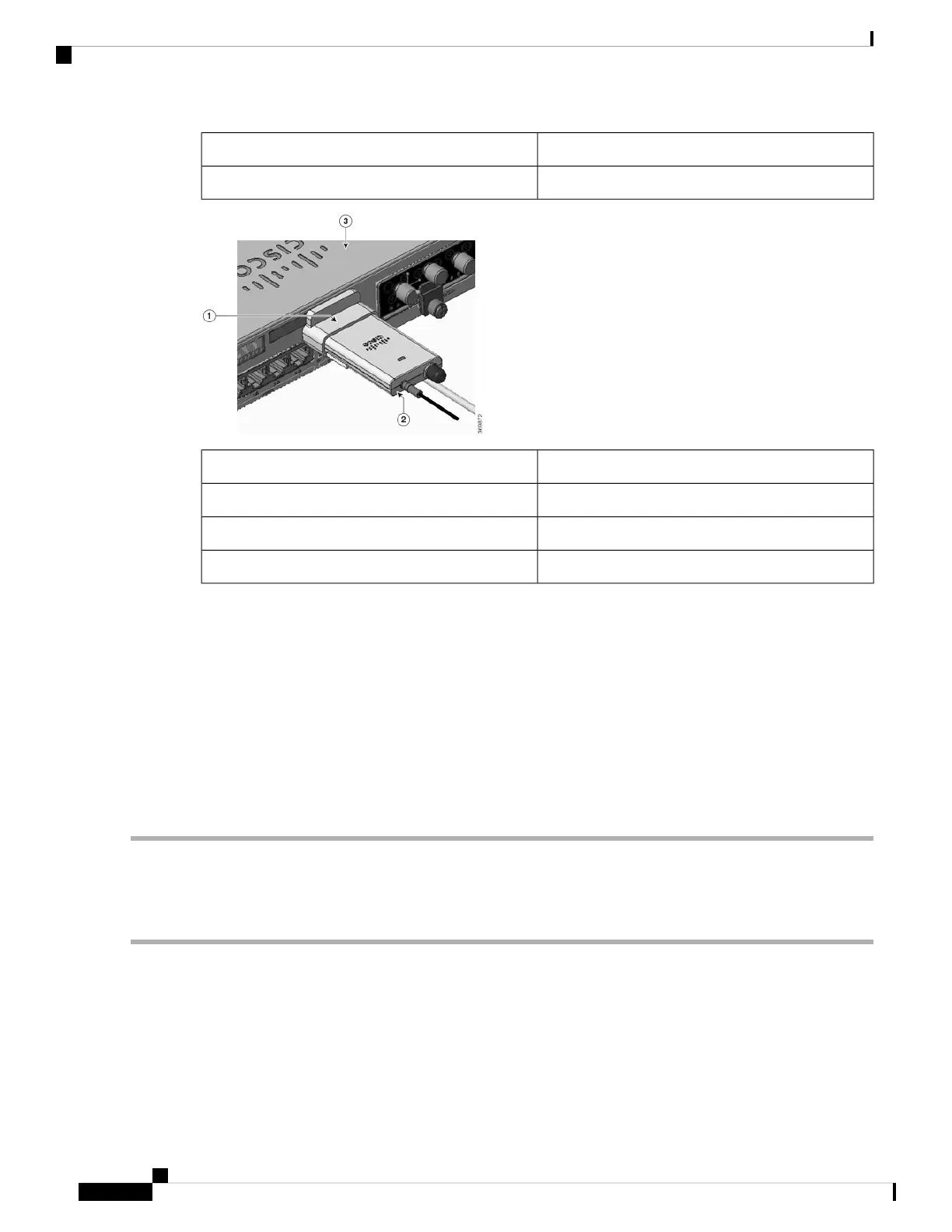

DescriptionNumber
Plug-in direction4
DescriptionNumber
Supporting ring1
Dongle holder with magnet2
Router-C1101-4PLTEPW3
Follow the same procedure to install the USB LTE dongle onto routers with a vertical USB slot.
Antenna Mounting Instructions
This section describes how to mount the antenna on the Cisco 1000 Series Integrated Services Router. The
information is contained in the following sections:
Rack Mount of the Antenna
To install the antenna on a rack, do these steps:
Option A - Rack Mount at a Different Height with the Platform
Step 1 Pick up the R-Brackets (700-121611-01)
Step 2 Place and fix the bracket at an appropriate location on the rack using two screws.
Step 3 Tighten the screw, the recommended torque is 10-12 in-lb.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
76
Install and Upgrade Internal Modules and Field Replaceable Units
Antenna Mounting Instructions

Cisco C1111x-8P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Frequency range	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.1ag
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports	8
Installed SFP modules quantity	4
Fast Ethernet (copper) ports quantity	1
Power over Ethernet (PoE) ports quantity	6
Security algorithms	3DES, 128-bit AES, 256-bit AES, DES
Authentication method	RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512
Routing protocols	VRRP
Data link protocols	HDLC
Supported protocols	IPv4, IPv6, RIP, RIPv2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM SM, SSM, RSVP, ERSPAN, IPSLA, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, HSRP, RADIUS, AAA, AVC, DVMRP, MPLS, IPsec, L2TPv3, BFD
Switching protocols	RFC 2338
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Supported network protocols	ACL, NAT, QoS, BFD, VRF Lite, IP SLA
Antenna type	External
Antennas quantity	2
Product color	Gray
LED indicators	Link, Status
Country of origin	Czech Republic
Flash memory	4000 MB
Certification	UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1, 2
Internal memory type	DRAM
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	66 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	-4 - 149 °C
Operating temperature (T-T)	32 - 104 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Package type	Box
Package depth	508 mm
Package width	342.9 mm
Package height	162.052 mm
Package weight	3455.78 g
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	244 mm
Width	323 mm
Height	44 mm
Weight	1940 g
