Cisco C1111x-8P

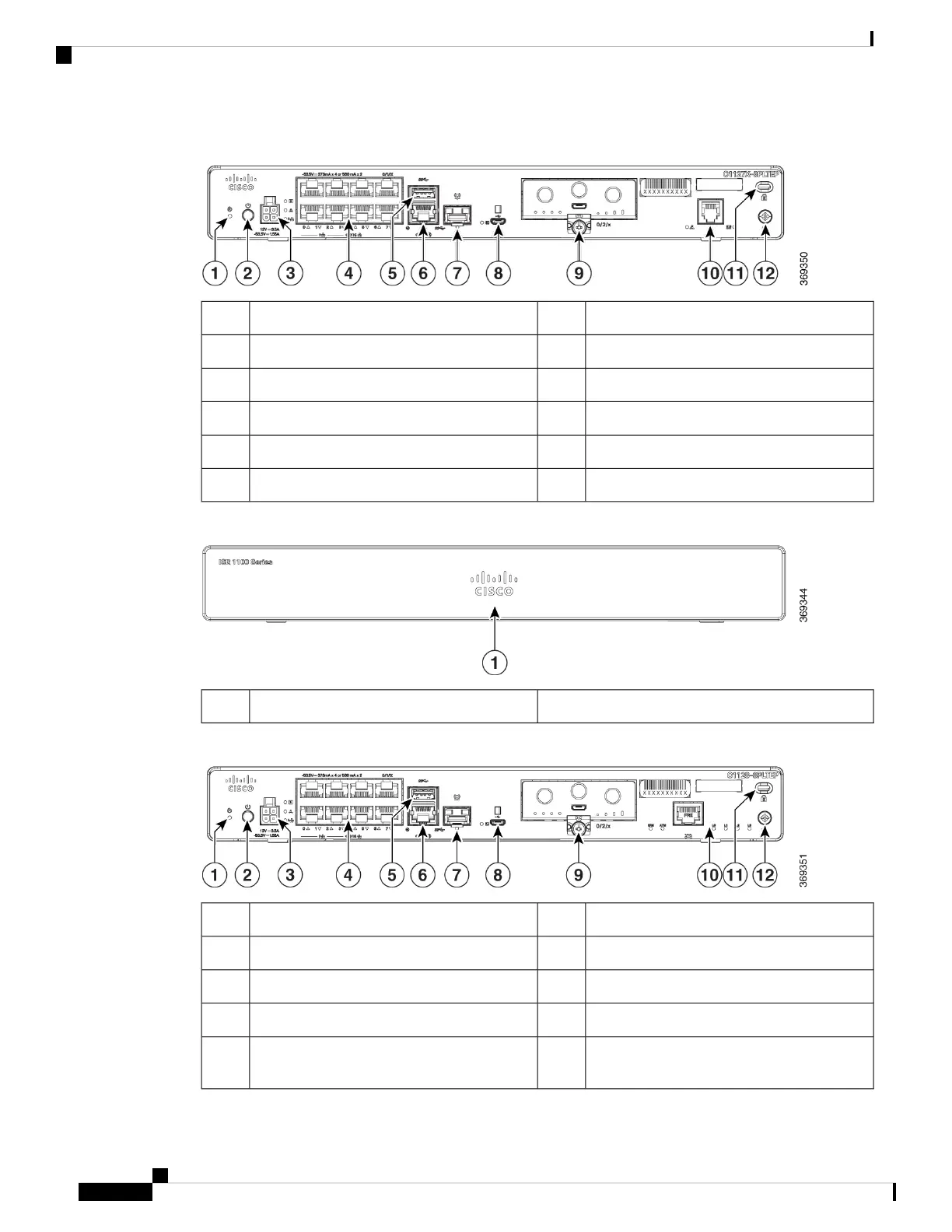

Figure 19: C1127X-8PLTEP IO Panel View
Power switch2Reset button1
Ethernet switch44-pin power connector3
GE WAN 0/0/0 -RJ456RJ-455
Micro-USB console8GE WAN 0/0/0 -SFP7
DSL10Pluggable9
Grounding12Kensington lock slot11
Figure 20: C1128-8PLTEP Bezel View
Non-illuminated Cisco logo1
Figure 21: C1128-8PLTEP I/O Panel View
Power switch2Reset button1
Ethernet switch44-pin power connector3
GE WAN 0/0/0 -RJ456USB 3.05
Micro-USB console8GE WAN 0/0/0 -SFP7
Symmetrical High-speed Digital Subscriber
Lines (SHDSL)
10Pluggable9
