Catalyst Switch Module 3110G and 3110X
The Catalyst Switch Module 3110G and 3110X are stackable, 12- to 18-Gigabit Ethernet port,
Layer 3 switch modules. The number of ports depends on the type of switch module. Up to 14 of the
Gigabit Ethernet ports are internal 1000BASE-X downlink ports that connect to the blade enclosure.
Figure 2 shows the two switch modules, and Table 1 describes the switch module ports.

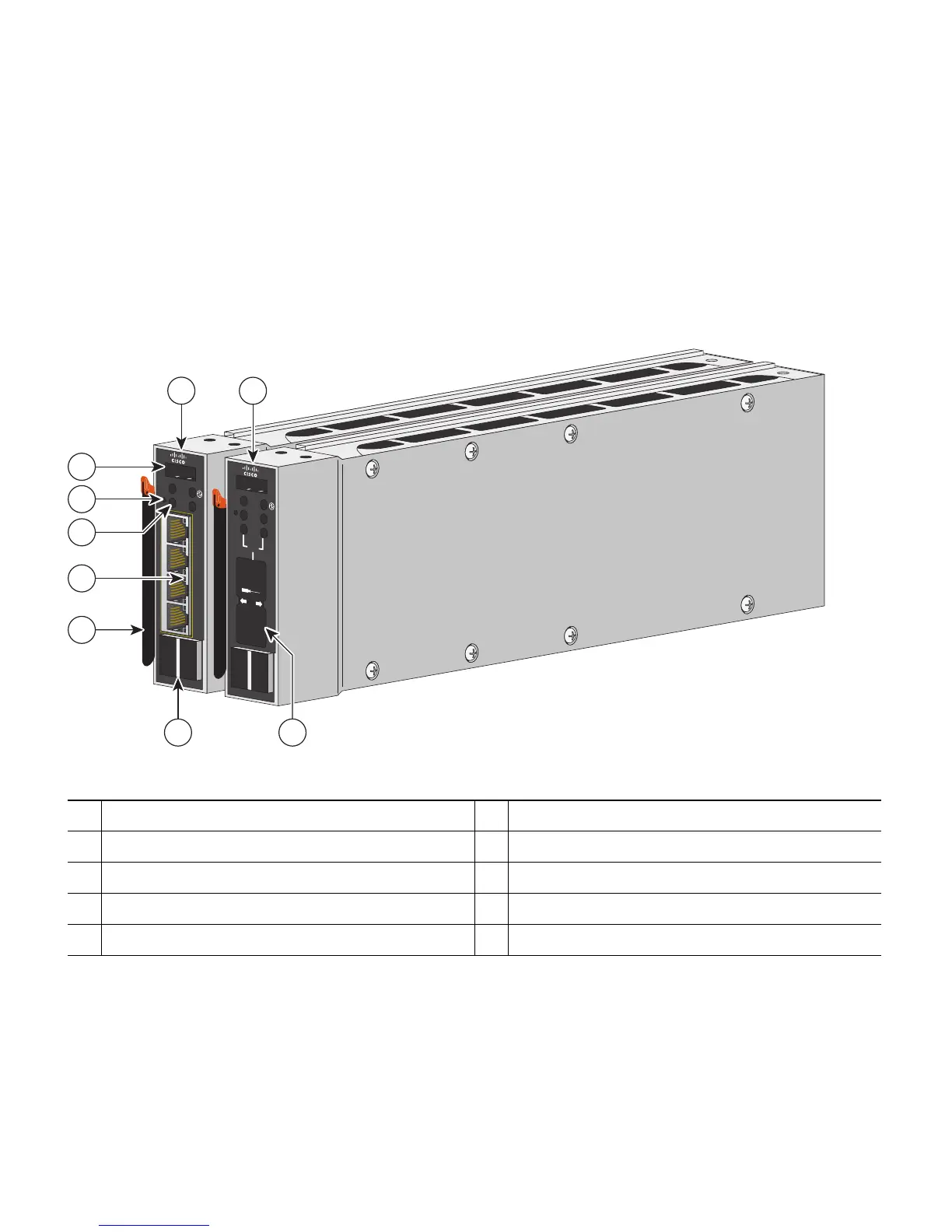

Figure 2 Catalyst Switch Module 3110G and 3110X
1
Catalyst Switch Module 3110G
6
10/100/1000 Ethernet ports
2
Catalyst Switch Module 3110X
7
Switch module LEDs
3
10-Gigabit Ethernet module slot
1
1. For use with Cisco X2 transceiver modules.
8
Mode button
4
StackWise Plus ports
9
Console port
5
Release latch
201895
C
O
N
S
O
L
E
M
O
D
E
M
B
R
M
S
T
LNK
!
ACT
15
LNK
ACT
16
LNK
ACT
17
LNK
1
STA
CK 2
ACT
18
X2
C
O
N
S
O
L
E
M
O
D
E
M
B
R
M
S
T
!
1
STA
CK 2
1
4
9
6
5
8
2
7
3
