6
For more information about the features of the switch module, see the hardware installation guide and
the software configuration guide on Cisco.com.

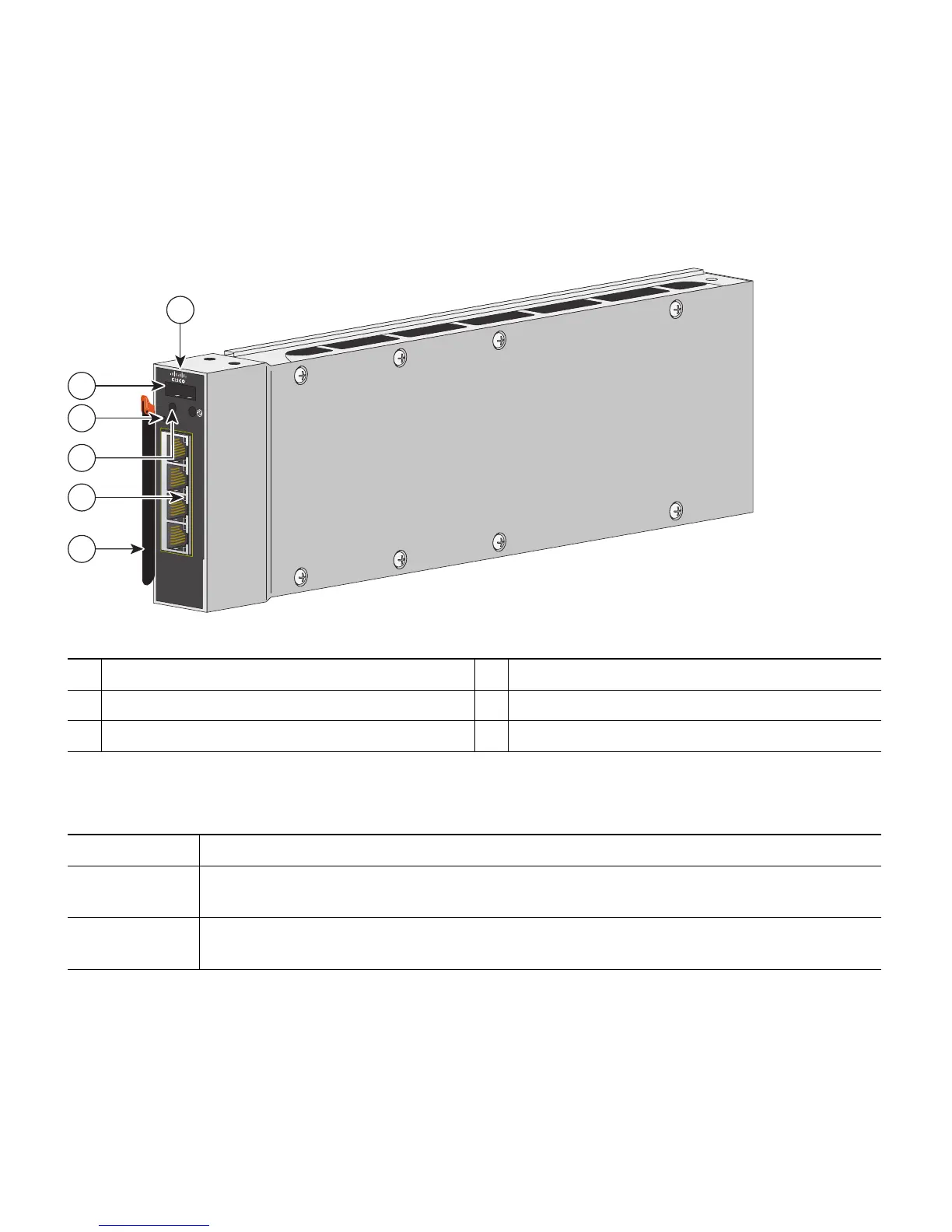

Figure 3 Catalyst Switch Module 3012
1
Catalyst Switch Module 3012
4
Switch module LEDs
2
Console port
5
10/100/1000 Ethernet ports
3
Mode button
6
Release latch
Table 2 Catalyst Switch Module 3012 Port Descriptions
Port Description
Ports 1 to 14
1
Internal Gigabit Ethernet 1000BASE-X downlink ports that connect to the blade
enclosure.
Ports 15 to 18 External 10/100/1000BASE-T copper Gigabit Ethernet uplink ports that support
auto-MDIX and autonegotiation.
270430
C
O
N
S
O
L
E
M
O
D
E
LNK
!
ACT
15
LNK
ACT
16
LNK
ACT
17
LNK
ACT
18
1
2
5
6
3
4
