Cisco Catalyst 3750G User Manual

5
Step 5

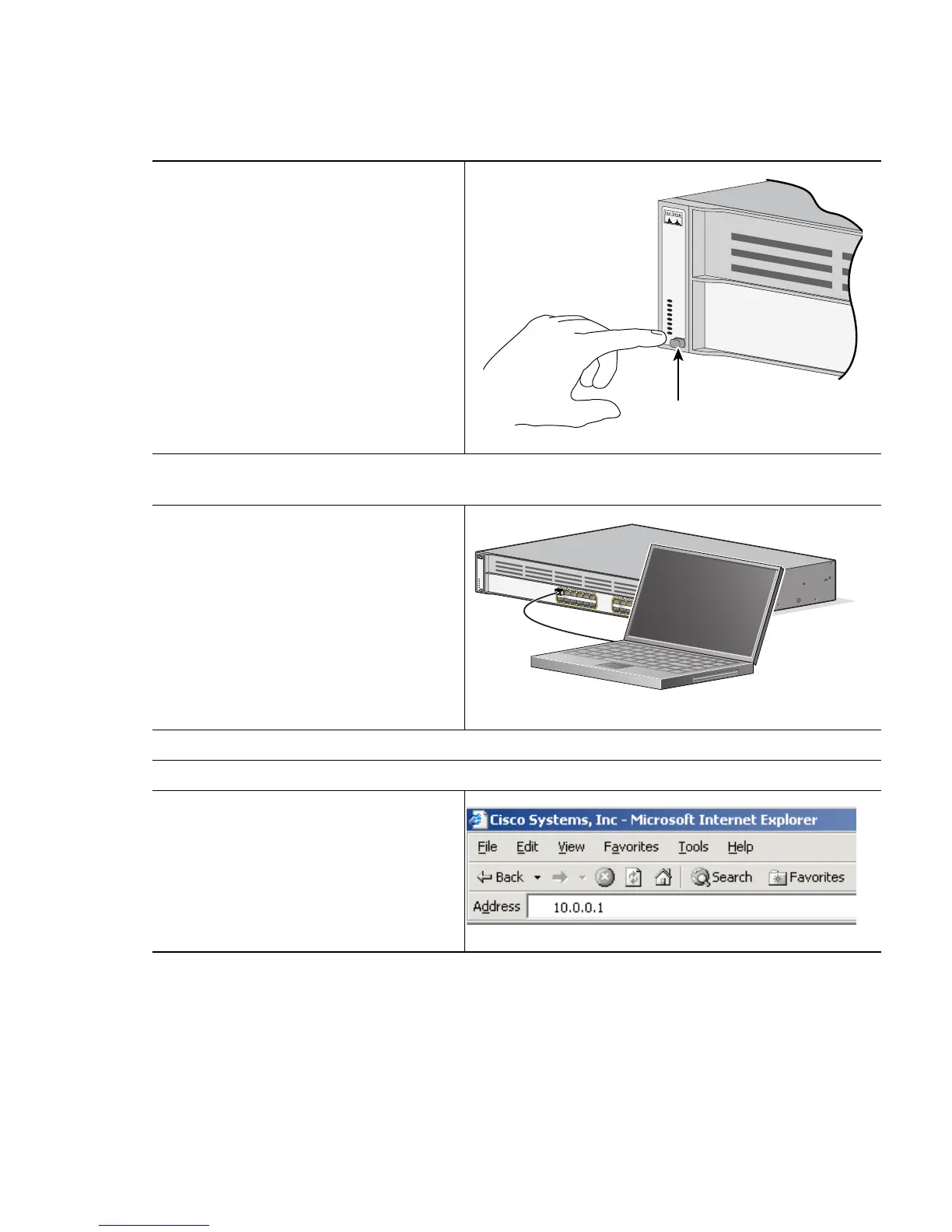

Press and hold the Mode button for
3 seconds. When all of the LEDs
above the Mode button turn green,
release the Mode button.
If the LEDs above the Mode button
begin to blink after you press the
button, release it. Blinking LEDs
mean that the switch has already
been configured and cannot go into
Express Setup mode. For more
information, see the “Resetting the
Switch” section on page 35.
Step 6
Verify that the switch is in Express Setup mode by confirming that all LEDs above the
Mode button are green. (On some switch models, the RPS LED remains off.)
Step 7
Connect a straight-through
Category 5 Ethernet cable (not
provided) to any 10/100/1000
Ethernet port on the switch front
panel and to the Ethernet port on the
PC.
Step 8
Verify that the LEDs on both Ethernet ports are green.
Step 9
Wait 30 seconds.
Step 10
Launch a web browser on your PC.
Enter the IP address 10.0.0.1 in the
web browser, and press Enter.
SYST
RP
S
M
ASTR
S
TA
T
D
UPLX
SPEE
D
ST
ACK
PoE
Mode button
C
a
t
a
l
y
s
t
3
7
5
0
G
SERIES
P
o
E
-
2
4
W
i
r
e
l
e
s
s
L
A
N
C
o
n
t
r
o
l
l
e
r
S
Y
S
T
R
P
S
M
A
S
T
R
S
T
A
T
D
U
P
L
X
S
P
E
E
D
S
T
A
C
K
P
o
E
1X
2X
11X
12X
1
2
3
4
5
6
7
8
9
1
0
11
1
2
13X
14X
23X
24X
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
0
2
1
2
2
2
3
24
2
5
2
6
DHCP-enabled PC

Cisco Catalyst 3750G Specifications

General

Model	Cisco Catalyst 3750G
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
DRAM	128 MB
Flash Memory	16 MB
MAC Address Table Size	12, 000 entries
VLANs	1005
Operating Humidity	10% to 85% non-condensing
Ports	48 10/100/1000 Ethernet ports
Uplink Interfaces	4 SFP Gigabit Ethernet ports
Jumbo Frames	Up to 9216 bytes
Power Supply	AC
Operating Temperature	0 to 45°C
