Catalyst 4948E and Catalyst 4948E-F Switch Installation Guide
OL-21561-02
Chapter 3 Installing the Switch
Rack-Mounting the Chassis
Note Figure 3-2 (top view) shows how to install a chassis in a rack when the chassis has the
rack-mount brackets attached at the front of the chassis. Figure 3-2 (bottom view) shows how to
install a chassis in a rack when the chassis has the rack-mount brackets attached at the rear of
the chassis.

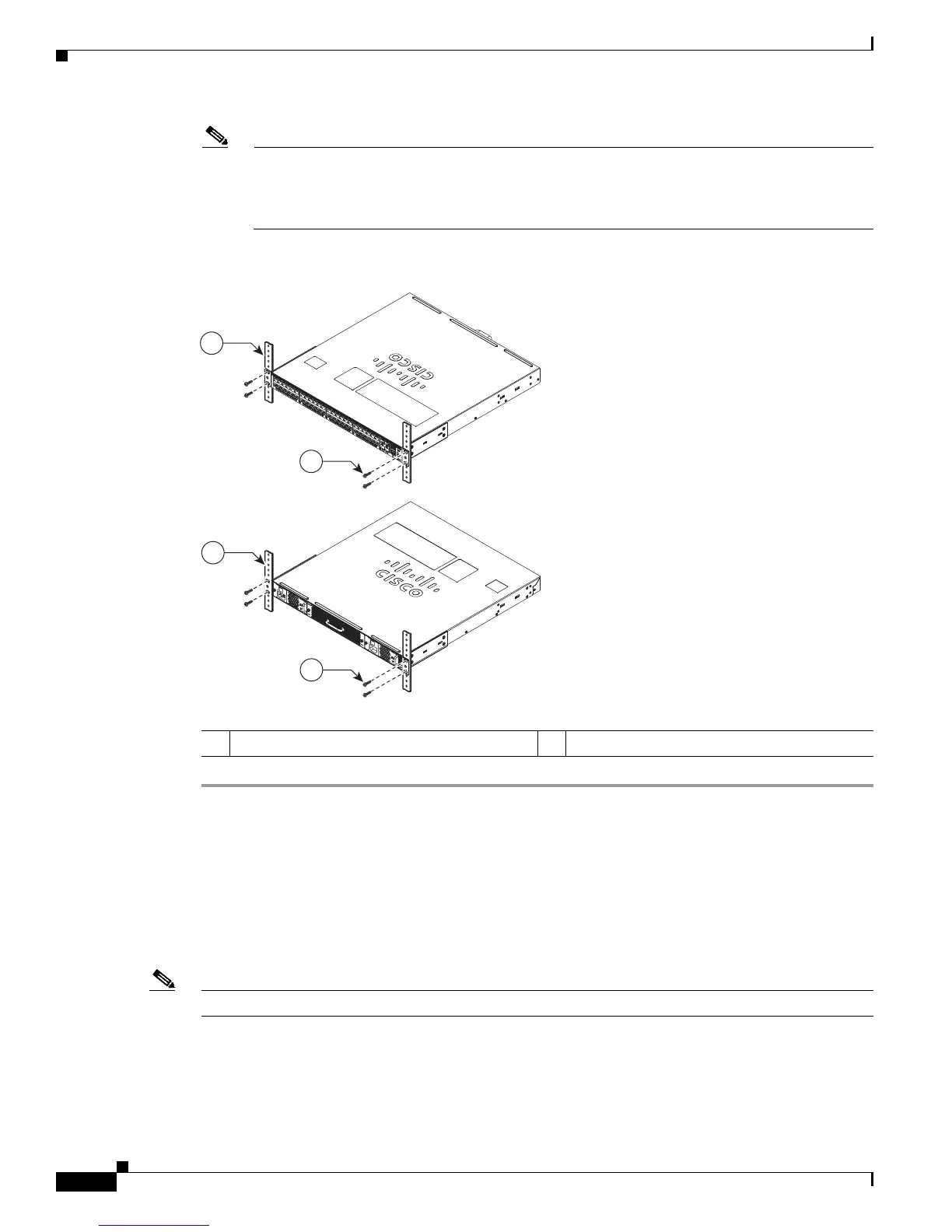

Figure 3-2 Installing the Chassis in the Rack
Installing the Cable Guide (Optional)
One cable guide is provided in the accessory kit. The cable guide attaches to the rack-mount bracket
using a single M4 screw (a threaded M4 hole is provided in the rack-mount bracket). The cable guide is
designed to be used when the rack-mount brackets are attached to the front of the chassis and can be
attached to either the left side or the right side of the chassis.
Note If the chassis is mounted to the rear posts of the equipment rack, the cable guide cannot be installed.
1 12-24 or 10-32 screws (2 per bracket) 2 Equipment rack post
207510
1
2
1
2

Cisco Catalyst 4948E Specifications

General

Model	Catalyst 4948E
Switching Capacity	176 Gbps
Rack Units	1U
Authentication Method	RADIUS, TACACS+
Flash Memory	256 MB
Power Device	Internal power supply
Ports	48 x 10/100/1000
Uplink Ports	4 x 10 Gigabit Ethernet
Power Supply	Dual, hot-swappable
Layer Support	Layer 3
MAC Address Table Size	32000 entries
Jumbo Frame Support	9216 bytes
Routing Protocol	OSPF, EIGRP, BGP, RIP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, SSH, Telnet
Features	VLAN support, QoS, IPv6 support, Access Control Lists (ACLs)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Voltage Required	100-240 VAC
Operating Temperature	0 to 40 °C
Relative Humidity	10 - 95% (non-condensing)
Height	1.72 in
