Chapter 3 Installing the Switch
Rack-Mounting the Chassis
To install the cable guide, follow these steps:
Step 1 Position the cable guide in front of either the left or right rack-mount bracket.
Step 2 Attach the cable guide to either the left or right rack-mount bracket using the single M4 screw provided.
(See Figure 3-3.)

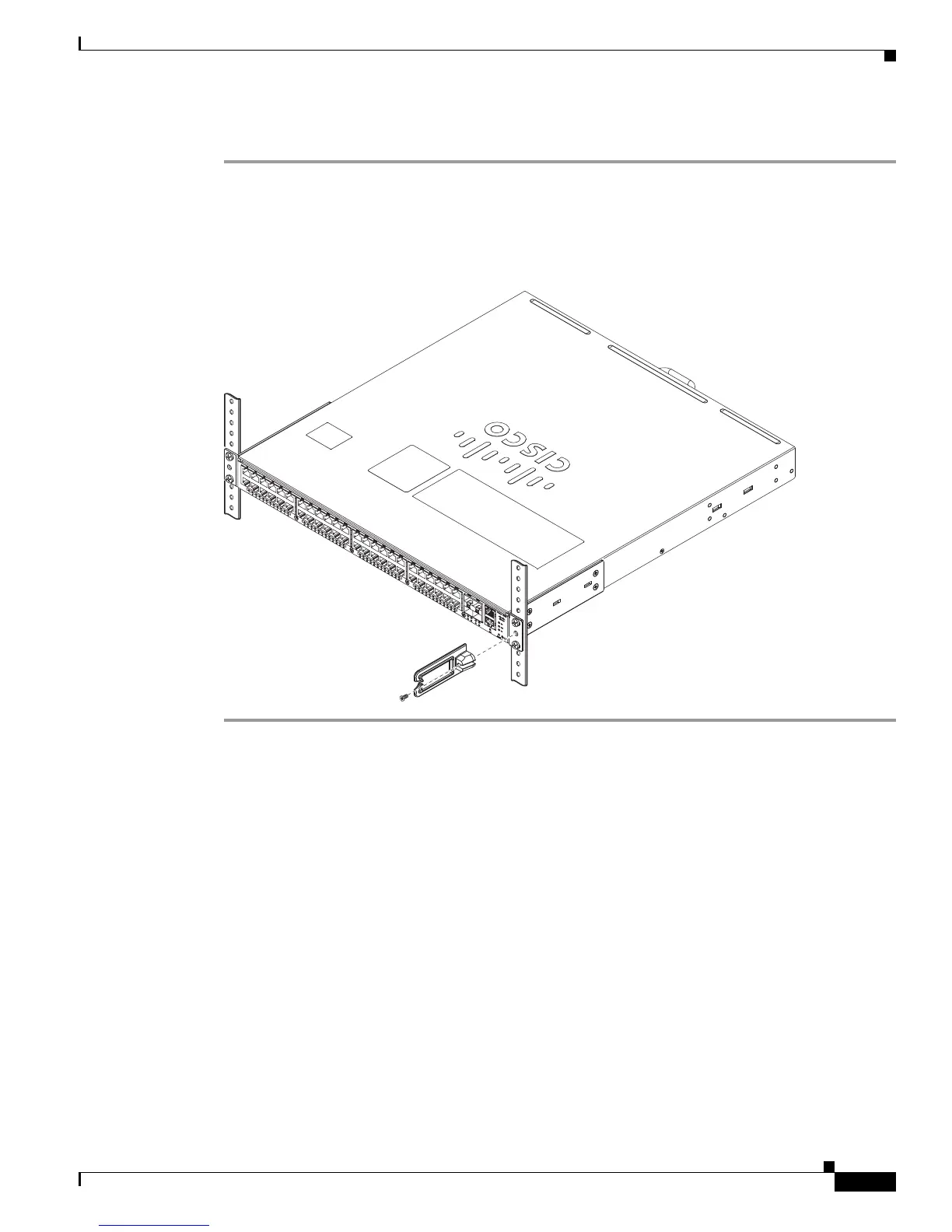

Figure 3-3 Installing the Cable Guide
Installing the Catalyst 4948E-F Switch Chassis with the Optional Panduit Air
Duct Kit
If you are installing the Catalyst 4948E-F switch chassis in a data center that is configured as hot isle
and cold isle, you might need to install the Panduit Air Duct kit, Model CDE2. The kit extends the air
intake from the rear of the chassis to the front of the equipment rack allowing the system to draw in cool
air from the cool isle. To install the air duct assembly, refer to the installation note that ships with the kit.
207511

Cisco Catalyst 4948E Specifications

General

Model	Catalyst 4948E
Switching Capacity	176 Gbps
Rack Units	1U
Authentication Method	RADIUS, TACACS+
Flash Memory	256 MB
Power Device	Internal power supply
Ports	48 x 10/100/1000
Uplink Ports	4 x 10 Gigabit Ethernet
Power Supply	Dual, hot-swappable
Layer Support	Layer 3
MAC Address Table Size	32000 entries
Jumbo Frame Support	9216 bytes
Routing Protocol	OSPF, EIGRP, BGP, RIP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, SSH, Telnet
Features	VLAN support, QoS, IPv6 support, Access Control Lists (ACLs)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Voltage Required	100-240 VAC
Operating Temperature	0 to 40 °C
Relative Humidity	10 - 95% (non-condensing)
Height	1.72 in
