Cisco Catalyst 6500 Series Installation Note

13
Catalyst 6500 Series Distributed Forwarding Card 4 for WS-X68xx, WS-X69xx, and Select WS-X67xx Modules Installation Note
OL-24918-02
Removing a CFC or DFC3 Daughter Card
Step 6 To unseat the CFC daughter card from the Ethernet module, hold each tab at the rear of the CFC daughter
card between your thumb and index finger, and gently press down on both tabs until the connectors are
unseated. (See Figure 3.)
Caution Do not apply too much pressure on the tabs because you might cause damage to the module.

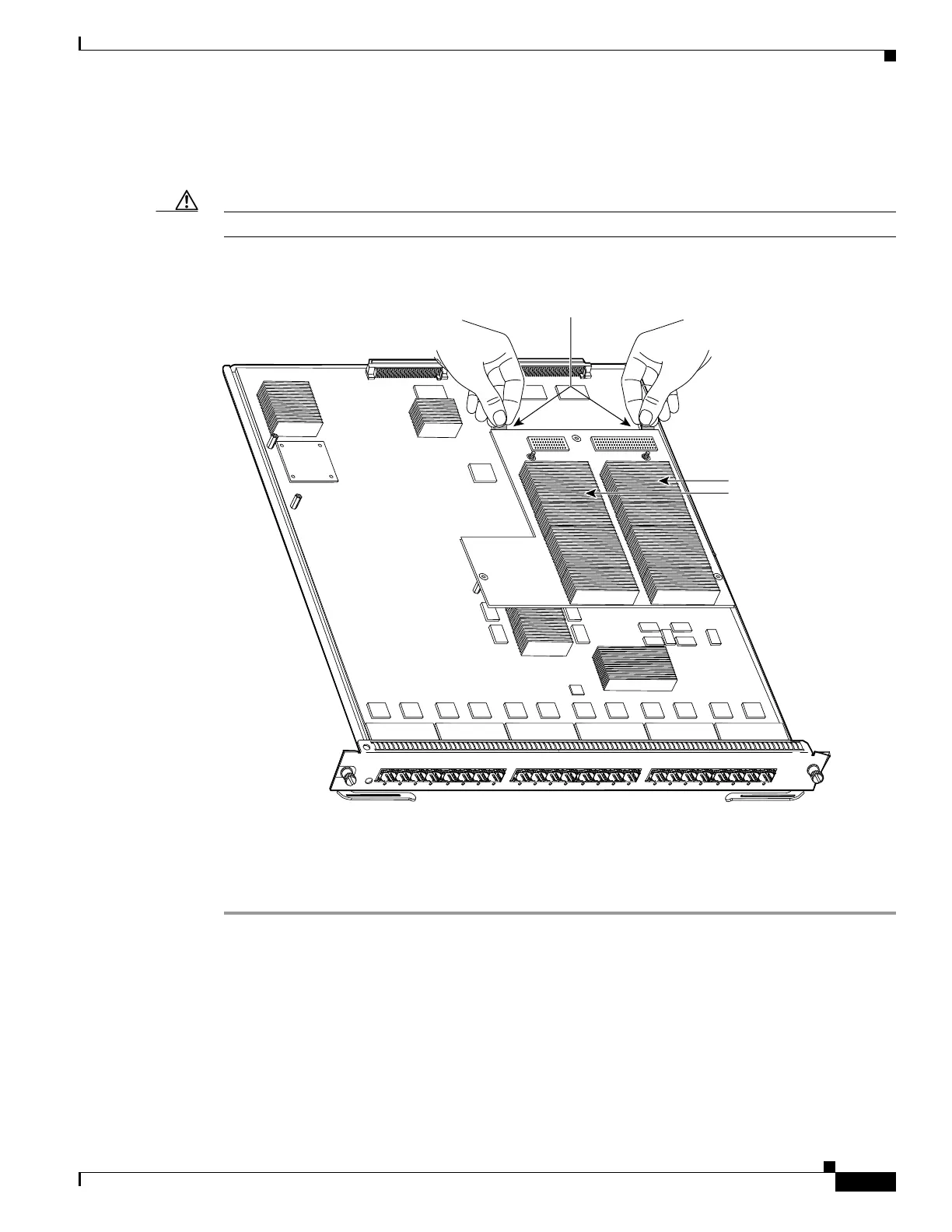

Figure 3 Unseating the CFC Daughter Card Connectors
Step 7
Gently lift the CFC daughter card with both hands and remove the CFC daughter card from the module
and immediately place the CFC daughter card in an antistatic bag.
Step 8 Proceed to the “Installing a DFC4 Daughter Card” section on page 23.
WS-X5530
120046
S
T
AT U
S
W
S
-X
6724-S
FP
24P
O
R
T G
IG
A
B
IT E
TH
E
R
N
E
T - S
FP
1 2 3 4 5 6 7 8 9 1
0
1
1
12 1
3
14 1
5
1
6
71 1
8
1
9
2
0
2
1
22 2
3
2
4
Heat sinks
