Catalyst 6500 Series Distributed Forwarding Card 4 for WS-X68xx, WS-X69xx, and Select WS-X67xx Modules Installation Note
OL-24918-02
Removing a DFC4 Daughter Card

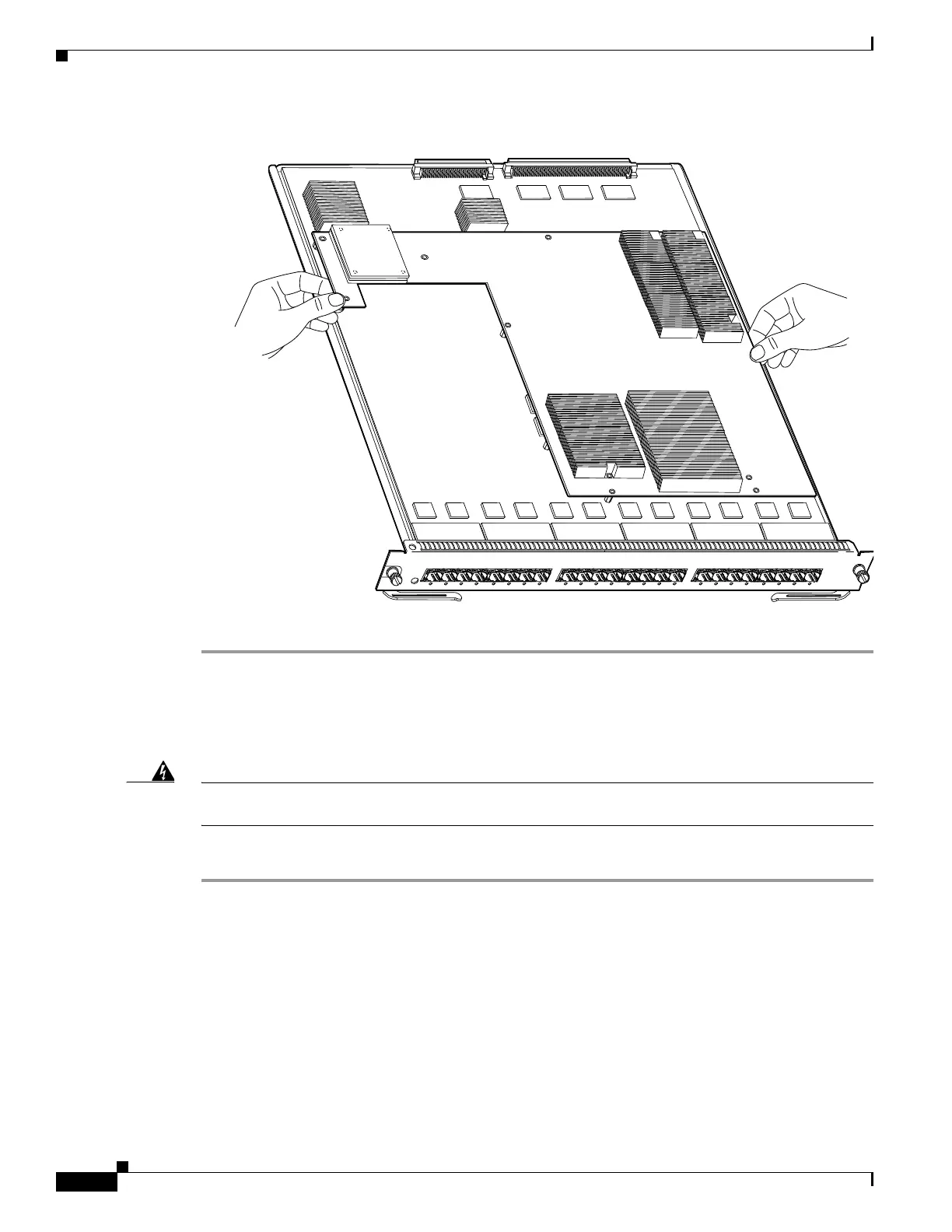

Figure 7 Removing the DFC3 Daughter Card from the Module
Removing a DFC4 Daughter Card
Warning
During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly
touch the backplane with your hand or any metal tool, or you could shock yourself.
Statement 94
To remove the DFC4 daughter card from an Ethernet module, follow these steps:
Step 1 Attach an ESD grounding strap to your wrist and to ground.
Step 2 Remove the Ethernet module from the chassis.
If you are unsure about the correct procedure for removing a module from the switch chassis, refer to
the “Removing an Ethernet Module from the Chassis” section on page 28 for removal instructions.
Step 3 Place the Ethernet module on an antistatic mat with the front of the module facing toward you.
Step 4 Remove the DFC4 daughter card mounting hardware. See Figure 8 for removing the WS-F6K-DFC4-E
or WS-F6K-EXL daughter card mounting hardware. See Figure 9 for removing the WS-F6K-DFC4-A
or WS-F6K-DFC4-AXL daughter card mounting hardware.
WS-X5530
S
TA
T
U
S
W
S
-X
6724-S
FP
24P
O
R
T
G
IG
A
B
IT E
TH
E
R
N
E
T
- S
FP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
6
7
1
18
1
9
20
2
1
22
23
24
Unseat the
DFC power
connector
Lift here
Lift here
