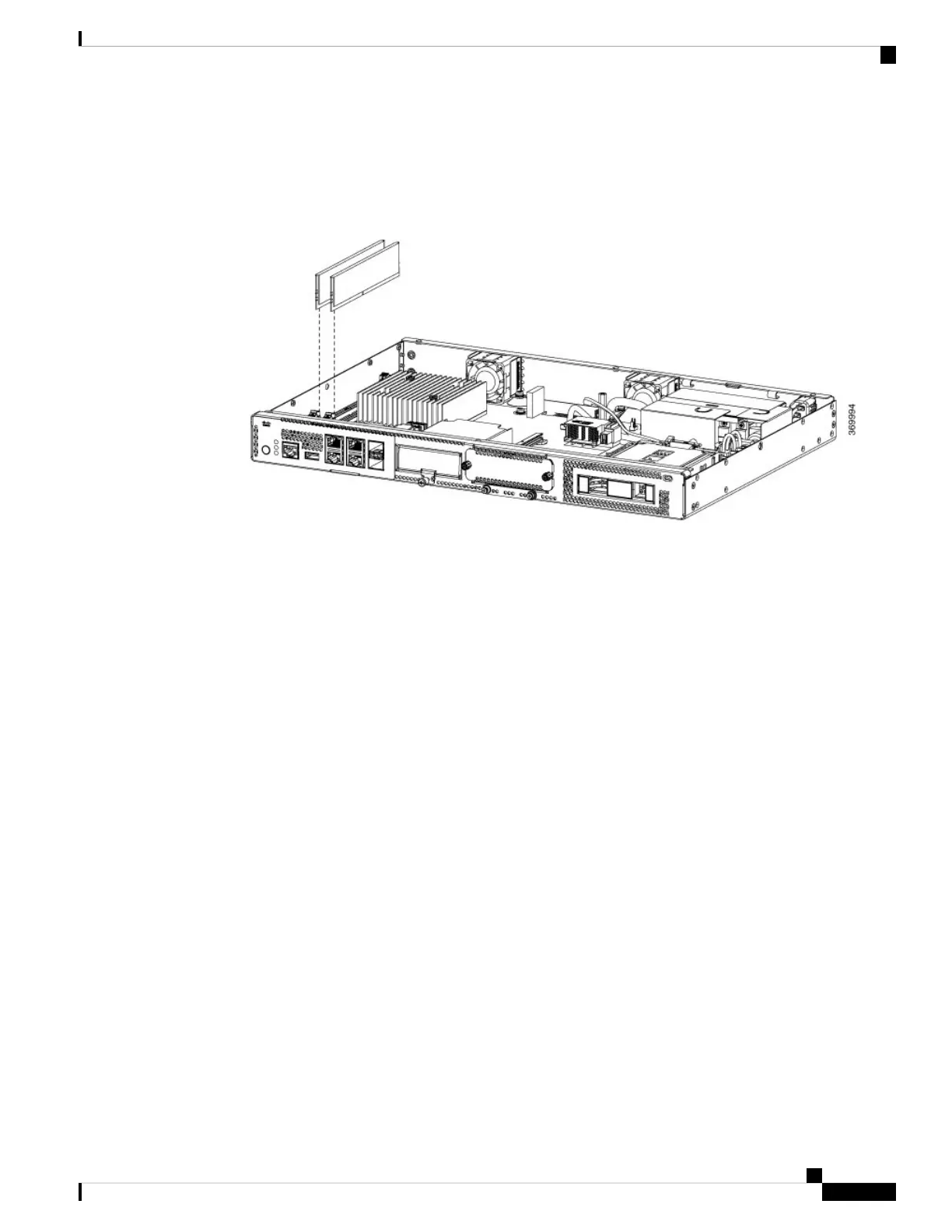

These are the steps to install a DIMM:
1. Remove the chassis cover.
2. Locate the DIMM slot on thedevice. There are two DIMM slots in the chassis and you can install the
DIMM module on either of the slots.
3. Make sure that both latches on the DIMM connector are in the open position.
4. Orient the DIMM so that the polarization notch lines up with the polarization key on the connector.
5. Insert the DIMM into the connector.
6. Replace the chassis cover.
Removing a DIMM
These are the steps to remove a DIMM:
1. Remove the chassis cover.
2. Locate the DIMM module on the device. Refer to the Chassis-Internal section to identify and locate the
DIMM module.
3. Pull the latches away from the DIMM at both ends to lift the DIMM slightly. Pull the DIMM out of the
socket.
Installing and Upgrading Field Replaceable Units
5
Installing and Upgrading Field Replaceable Units
Removing a DIMM
