Table 1: Brackets and Clips for Mounting the AP
DescriptionPart Number
Low-profile bracket: Used for
ceiling-mount installations(This is
the default option.)
AIR-AP-BRACKET-1Brackets
123
Universal bracket: Used for wall or
electrical box installations.
AIR-AP-BRACKET-2
Ceiling grid clip (recessed
mounting)(This is the default
option.)
AIR-AP-T-RAIL-RClips
Ceiling grid clip (flush mounting)AIR-AP-T-RAIL-F
Optional adapter for channel-rail
ceiling grid profile.
AIR-CHNL-ADAPTER
1
Mount the AP using no less than four screw holes on a bracket.
2
AIR-AP-BRACKET-3 is not compatible for use with Cisco Catalyst 9136I series access points.
3
You can also use in-tile mounting options available from third parties. For more information, see the
access point data sheet available on Cisco.com at:
https://www.cisco.com/c/en/us/products/collateral/wireless/catalyst-9100ax-access-points/nb-06-cat-9130-ser-ap-ds-cte-en.html
.
When mounting the AP in areas where there is a possibility of the AP being knocked off the mounting bracket,
use the lock hasp at the back of the AP (see Figure 21: Locking the AP to the Bracket, on page 19 ) to lock
it to the bracket.

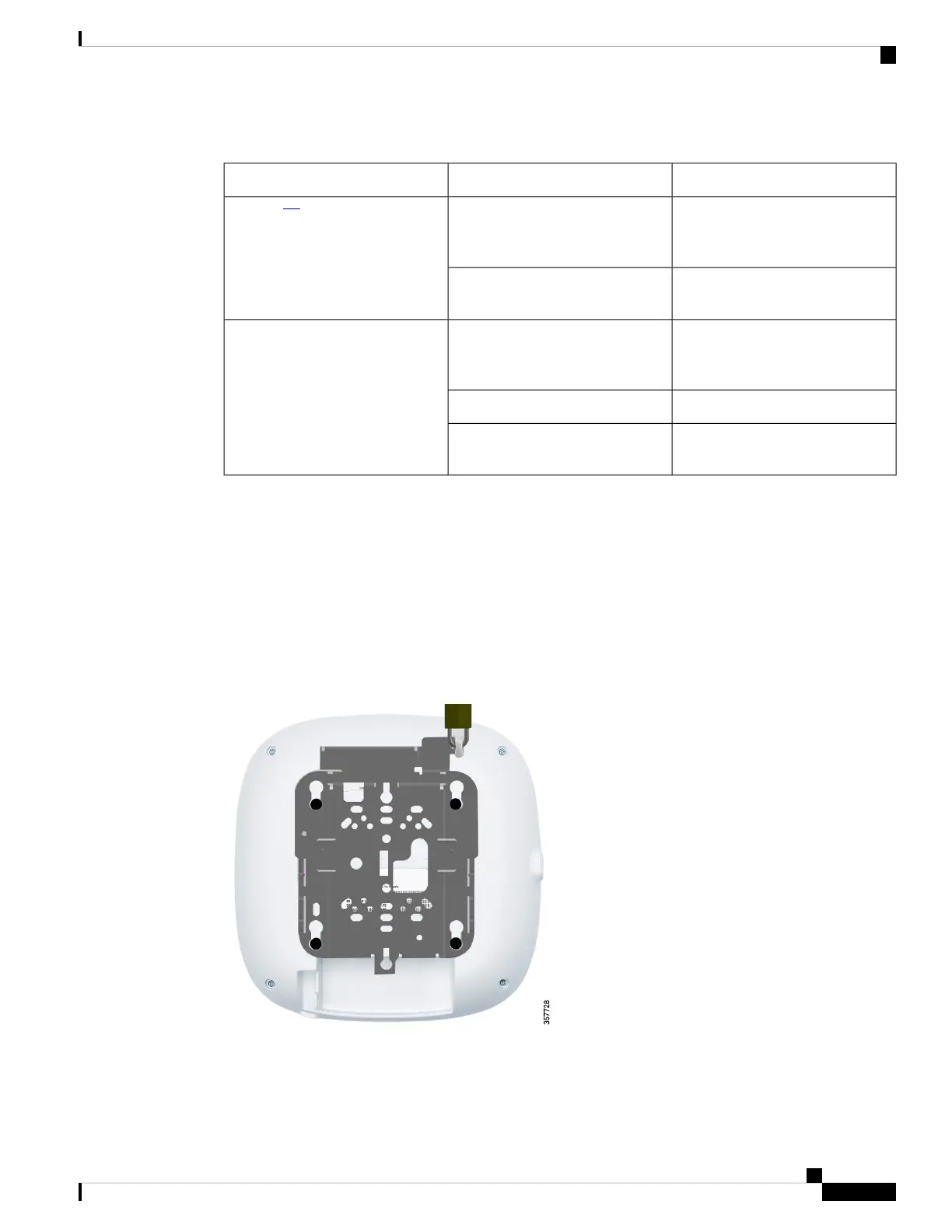

Figure 21: Locking the AP to the Bracket
Cisco Catalyst 9136I Series Access Point Hardware Installation Guide
19
Installation Overview
Mounting the Access Point

Cisco Catalyst 9136I Series Specifications
