Cisco Catalyst 9200CX Compact Series User Manual

• Three 8-18 Phillips pan-head screws
• Two 10-32 Phillips pan-head screws
• Screwdriver
Procedure
Step 1 Place the mounting tray on to the mounting surface.
Step 2 Use a 0.144-in. (3.7 mm) or a #27 drill bit to drill holes three 1/2-inches (12.7 mm) deep in the desk.
Step 3 Insert the three 8-18 Phillips pan-head screws in to the slots on the mounting tray, and tighten them.

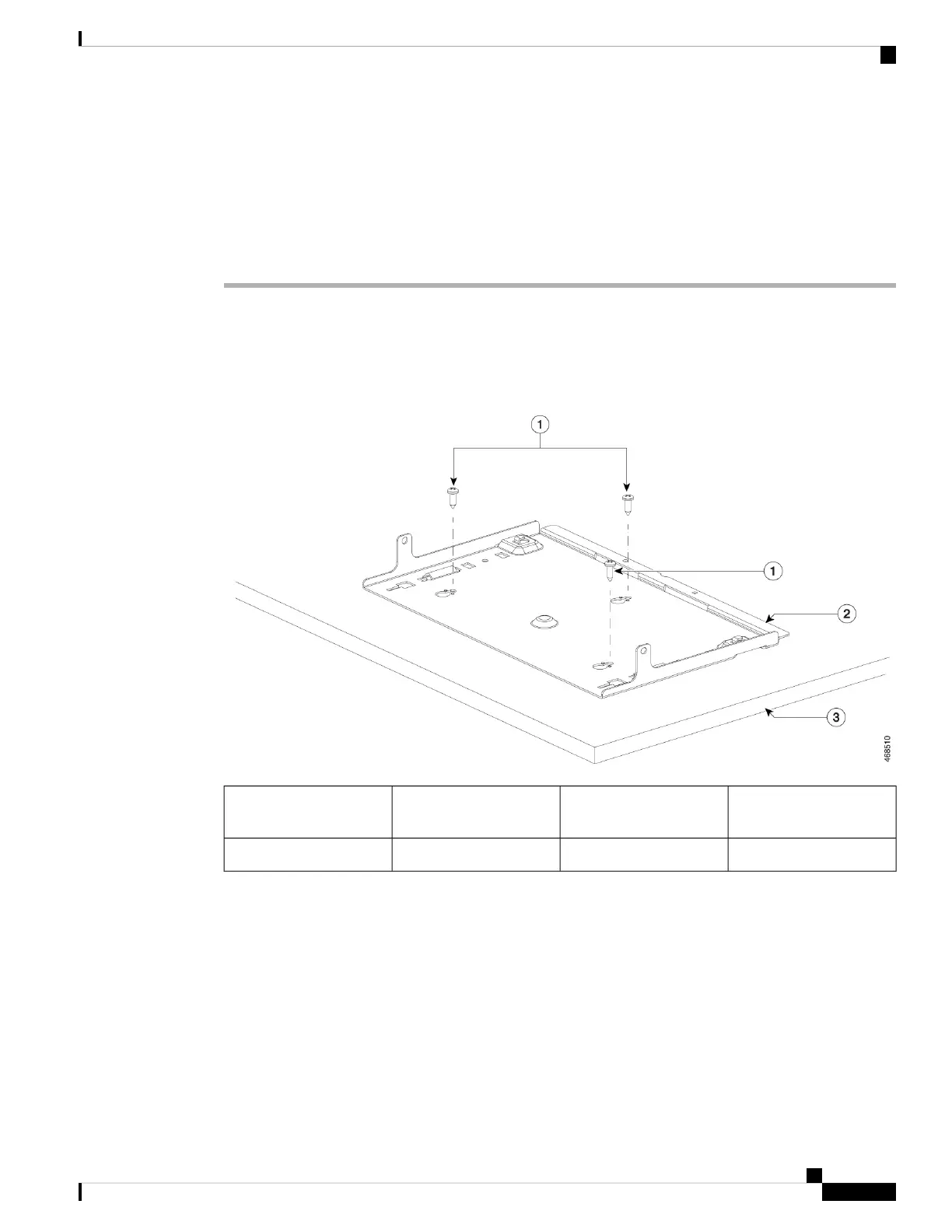

Figure 5: Attaching the Mounting Tray to the Desk or Shelf
Desk3Three 8-18 Phillips
pan-head screws
1
--Mounting tray2
Step 4 Place the switch on the mounting tray, slide it slightly forward so that the mounting tray hooks on both the
sides engage with the switch.
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
25
Installing a Compact Switch
Mounting using the Mounting Tray and Screws

Cisco Catalyst 9200CX Compact Series Specifications

General

Model	Cisco Catalyst 9200CX Compact Series
Software	Cisco IOS XE
Power over Ethernet (PoE)	No
Stacking	Not supported
Weight	5.0 lb (2.3 kg)
Form Factor	Compact
Management	WebUI, CLI, SNMP, Cisco DNA Center
Power Supply	Internal power supply
Memory	4 GB DRAM
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 90% noncondensing
Ports	8, 12, or 24 10/100/1000BASE-T ports
Dimensions	1.73 x 10.5 x 9.45 in. (4.4 x 26.7 x 24 cm)
