Cisco Catalyst 2.4 GHz and 5/6 GHz Dual-Band Polarization-Diverse Directional Patch Antenna (C-ANT9103=)

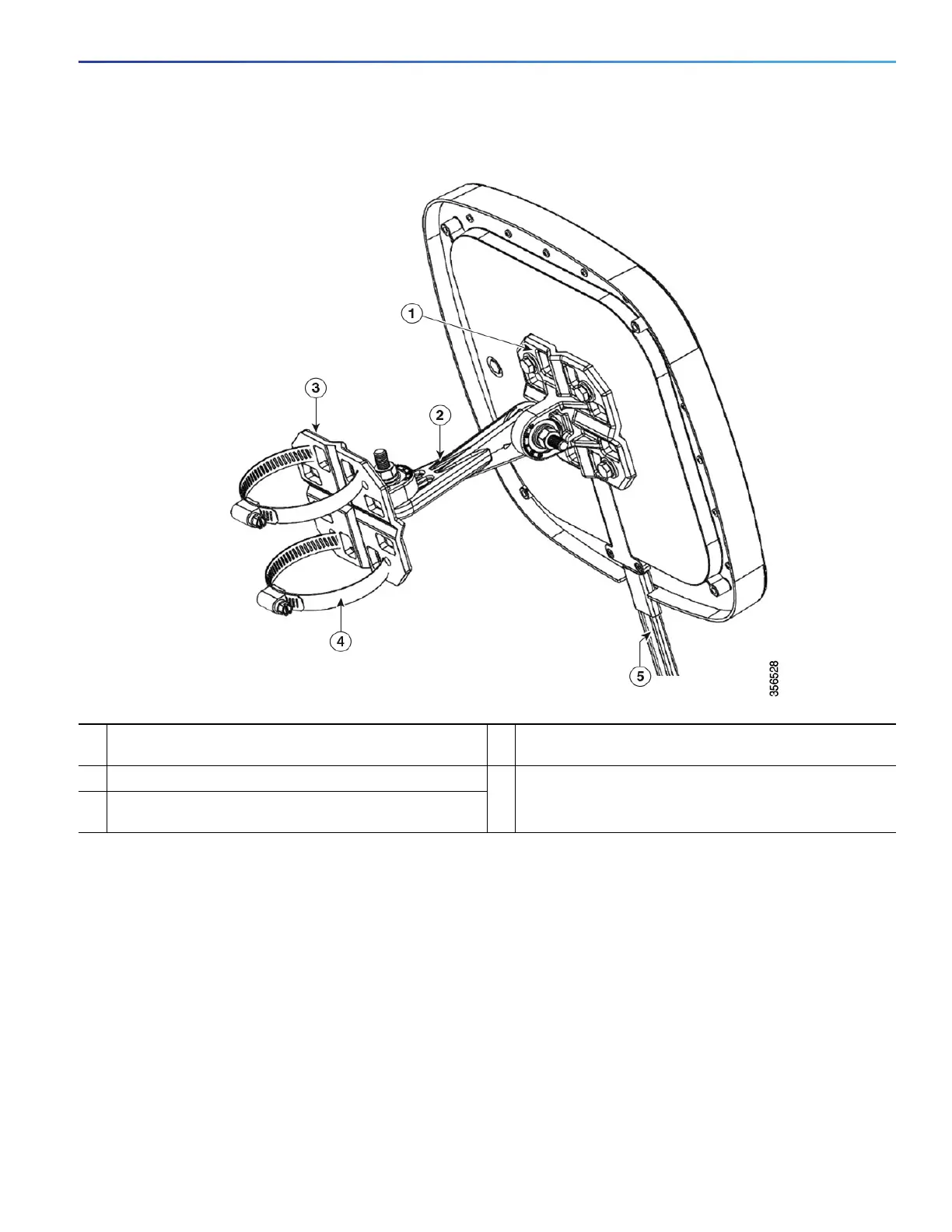

Figure 11 Antenna Bracket Hose Clamp Assembly for Pole Mounting
1
Articulating mount flange attached to the back of the
antenna.
4
Worm-gear-type hose clamp (50–135mm) for mounting
the assembly on a pole or mast.
2
Articulating mount arm.
5
Cables connecting the antenna to an access point.
3
Articulating mount flange that is fastened to the pole or
mast using hose clamps.
