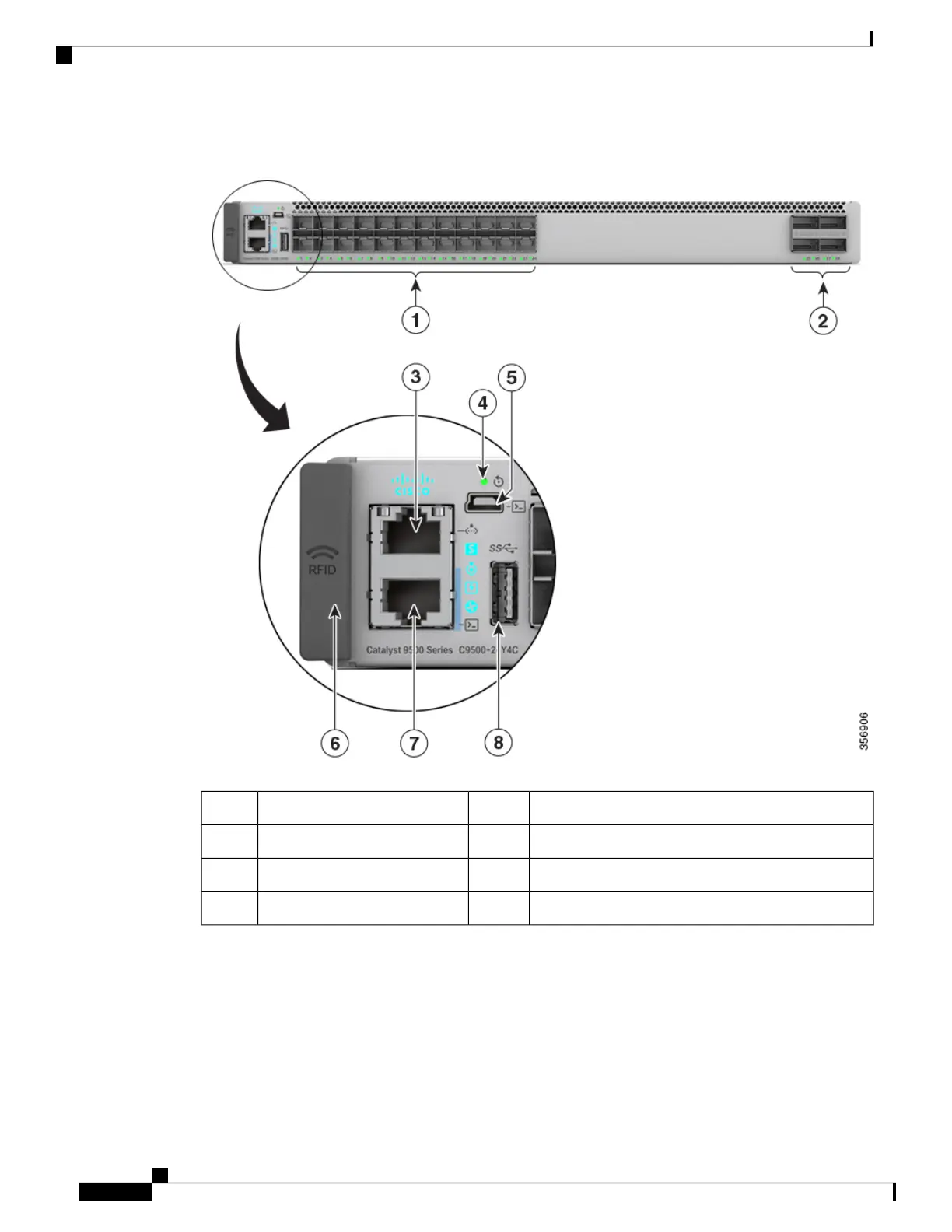

Figure 4: Front Panel of a 24-Port Cisco Catalyst 9500 High Performance Switch (C9500-24Y4C)
USB mini Type B console port524 1G/10G/25G SFP28 ports1
RFID6Uplink ports2
Console port (RJ-45 Serial)7Ethernet management port3
USB 3.0 host port8Reset button4
SFP and QSFP Module Ports
The SFP and QSFP modules provide copper or fiber-optic connections to other devices. The SFP and QSFP
module ports for Cisco Catalyst 9500 Series Switches are as follows :
