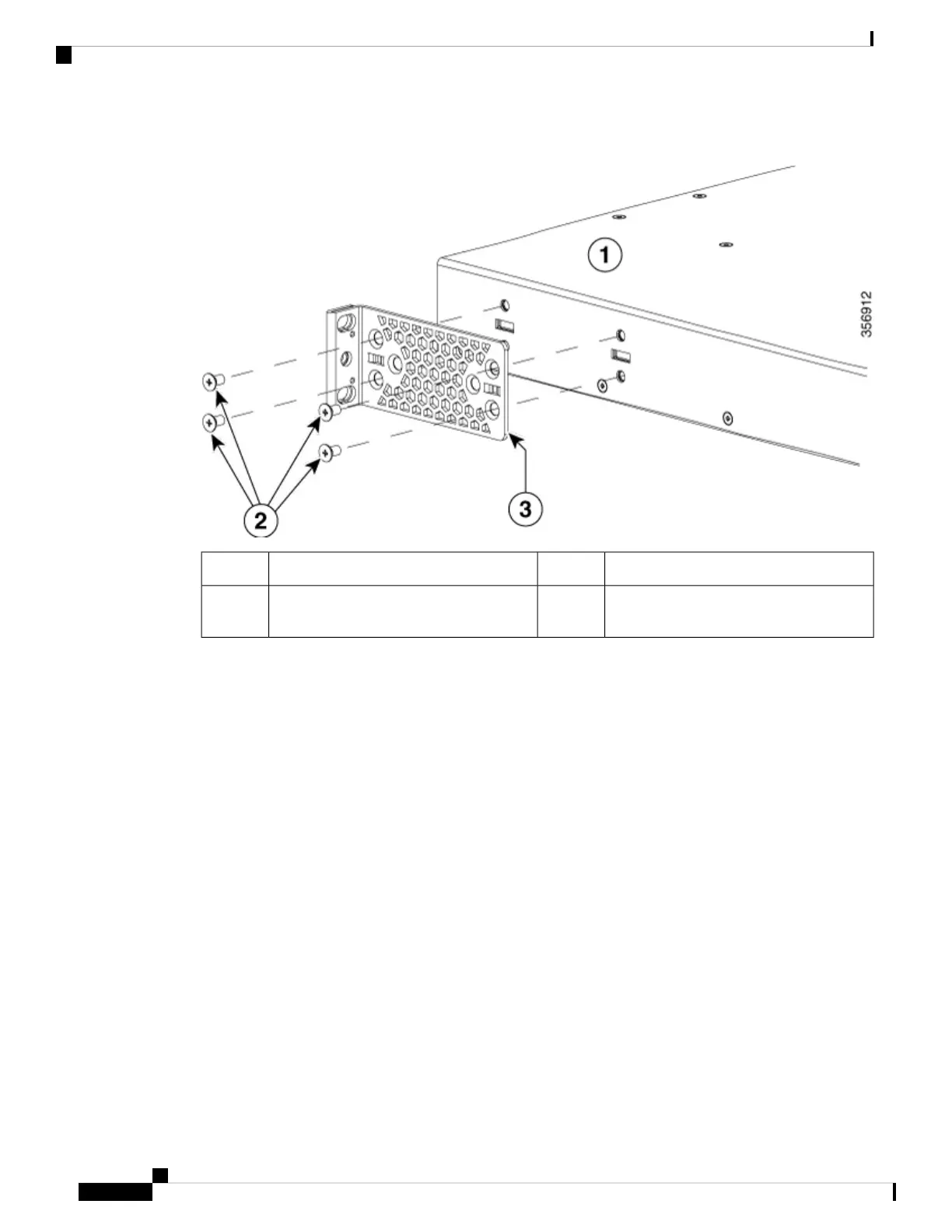

Figure 28: Rear Mounting position of Rack Mounting Brackets
19-inch mounting brackets3Cisco Catalyst 9500 Series switch1
--Number-8 Phillips flat-head 0.312" long
screws
2
For Cisco Catalyst 9500 High Performance Series Switches, use M4.0x6mm Phillips flat-head screws to attach
the long side of the bracket to each side of the switch for the front, middle, or rear mounting positions.
Figure 29: Front Mounting position of Rack Mounting Brackets
The following illustrations used are of a Cisco Catalyst 9500 High Performance Series Switch. Note that the
number of screws used for 9500 High Performance Series Switches are different from Cisco Catalyst 9500
Series Switch. Cisco Catalyst 9500 High Performance Series Switches use 6 screws to install the bracket on
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
48
Installing a Switch
Attaching the Rack-Mount Brackets
