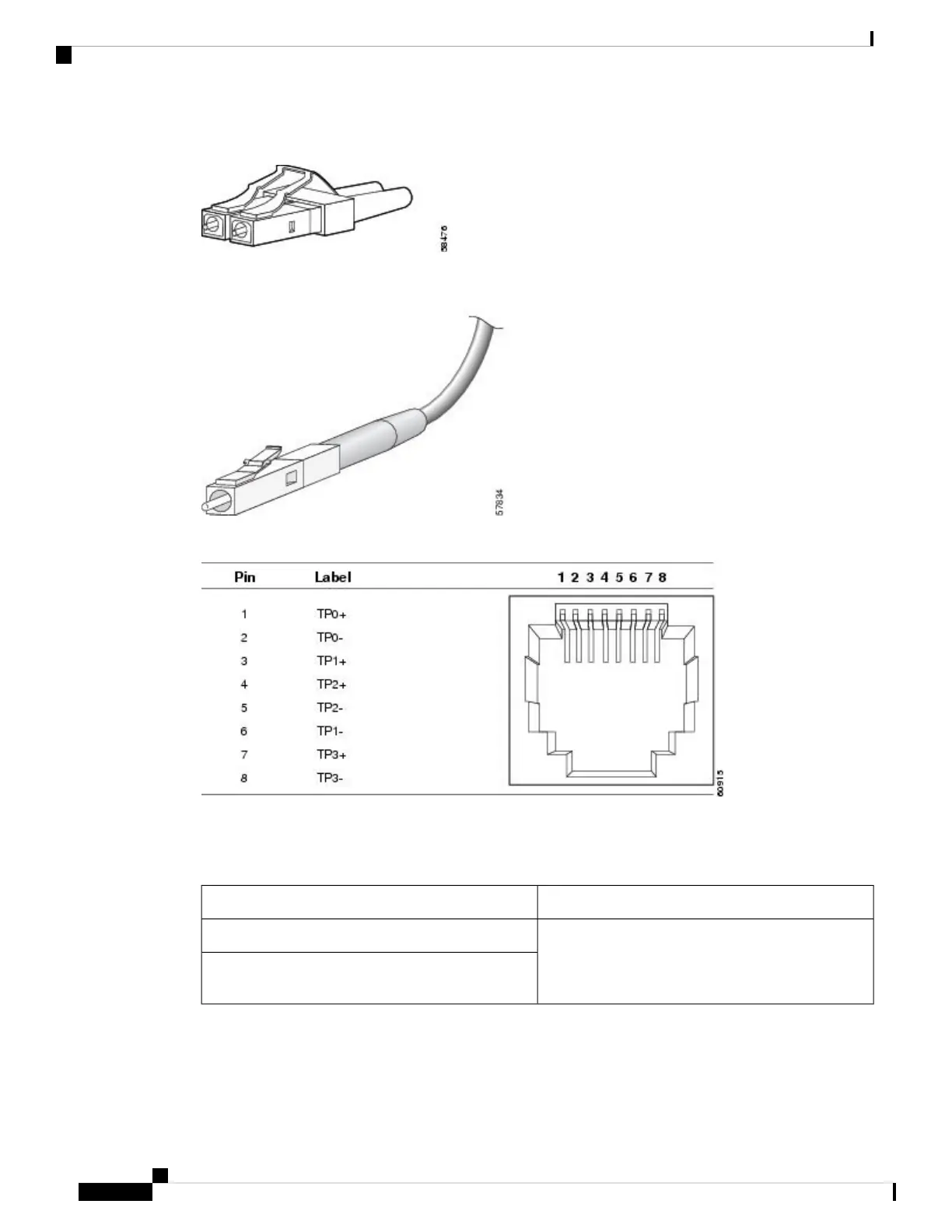

Figure 87: Duplex LC Cable Connector
Figure 88: Simplex LC Cable Connector
Figure 89: Copper SFP Module LC Connector
Console Cables
Supported Console CableSwitch Name
USB Type A to 5-pin mini-Type B
(CAB-CONSOLE-USB)
Cisco Catalyst 9500 Series Switches
Cisco Catalyst 9500 Series High Performance
Switches
The USB console port uses a USB Type A to 5-pin mini-Type B cable and a USB Type A to Type C cable.
These cables are not supplied with the switch; you have to order them separately.
