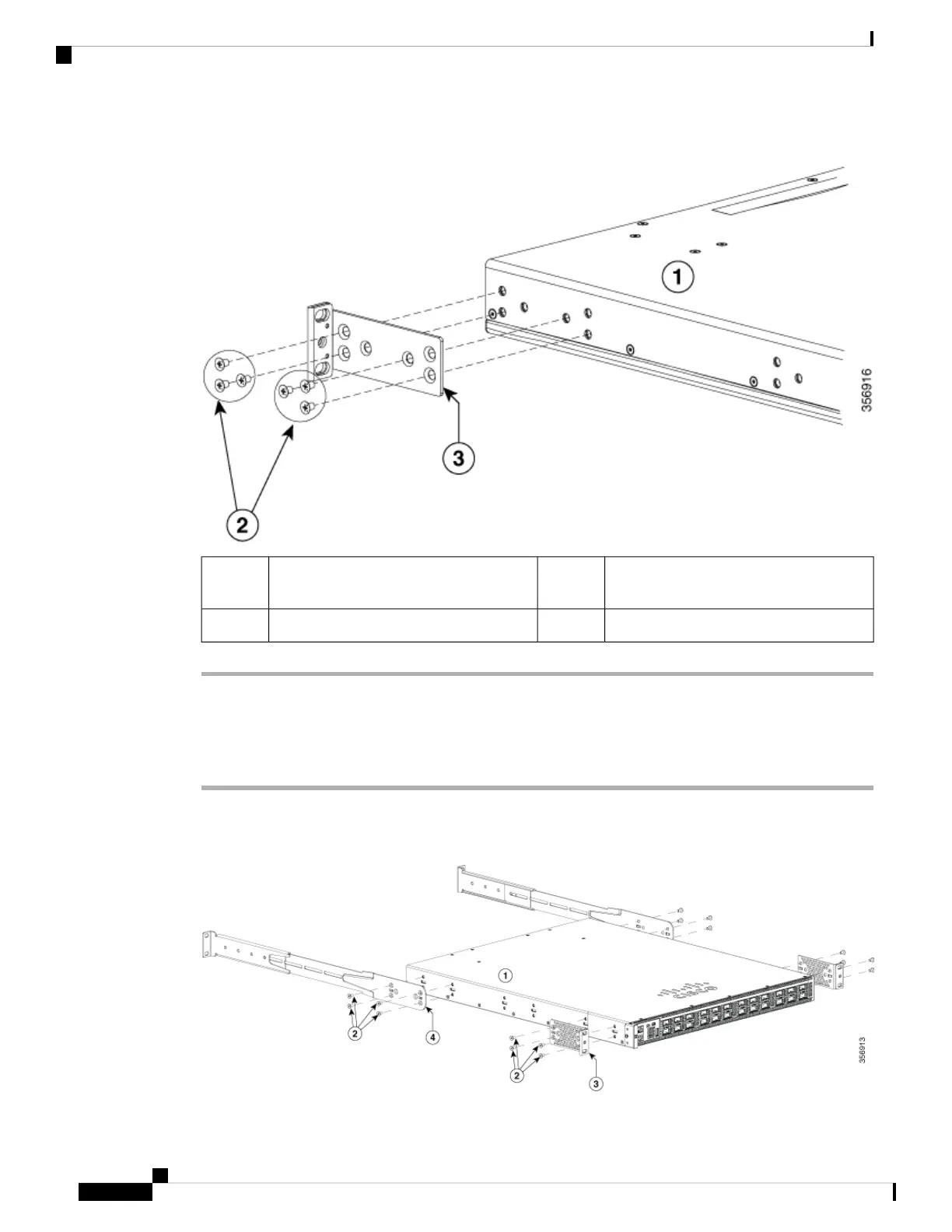

Figure 31: Rear Mounting position of Rack Mounting Brackets
19-inch mounting brackets3Cisco Catalyst 9500 Series High
Performance switch
1
--M4.0x6mm Phillips flat-head screws2
Mounting the Switch in a Rack
Procedure
Step 1 Use the Phillips machine screws to attach the brackets and the extension rail to the switch.
Figure 32: Attaching the Extension Rail on a Cisco Catalyst 9500 Series Switch
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
50
Installing a Switch
Mounting the Switch in a Rack
