19-inch mounting brackets3Cisco Catalyst 9500 Series switch1
Extension rails and - - brackets4Number-8 Phillips flat-head 0.312" long
screws
2

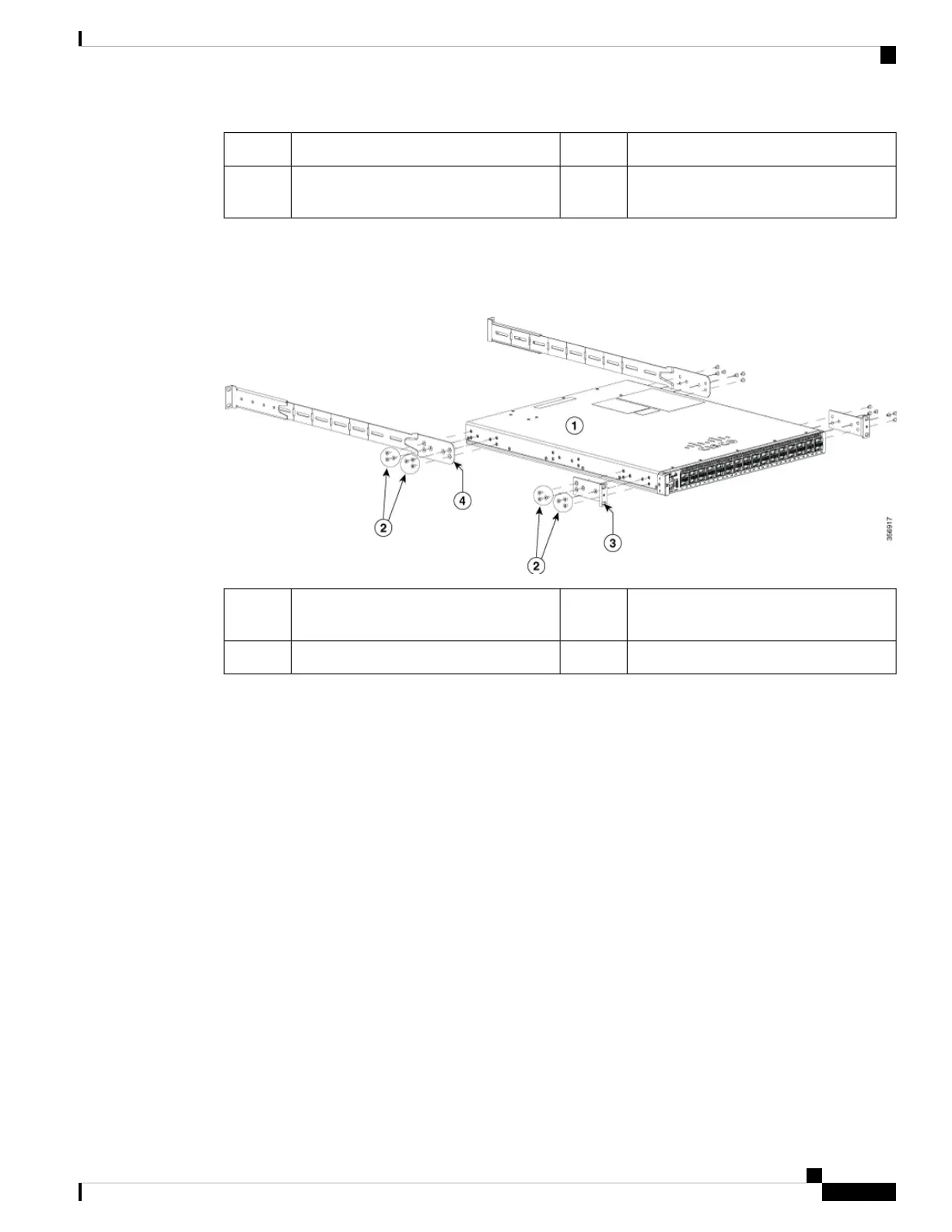

Figure 33: Attaching the Extension Rail on a Cisco Catalyst 9500 High Performance Series Switch
Method to attach the extension rail on Cisco Catalyst 9500H Series Switches and Cisco Catalyst 9500 Series
switches is similar. The only difference is that a C9500 switch uses 4 screws to attach the extension rail on
to one side of the switch, whereas a C9500H switch uses 6 screws.
19-inch mounting brackets3Cisco Catalyst 9500 Series High
Performance switch
1
Extension rails and brackets4M4.0x6mm Phillips flat-head screws2
Step 2 Use the black Phillips machine screw to attach the cable guide to the left or right bracket.
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
51
Installing a Switch
Mounting the Switch in a Rack
