RFID Tag
The chassis has a built-in, front-facing, passive RFID tag that uses UHF RFID technology and requires an
RFID reader with compatible software. It provides auto-identification capabilities for asset management and
tracking. The RFID tags are compatible with the Generation 2 GS1 EPC Global Standard and are ISO 18000-6C
compliant. They operate in the 860- to 960-MHz UHF band. For more information, see Radio Frequency
Identification (RFID) on Cisco Catalyst 9000 Family Switches White Paper.
Console Ports
The console ports connect the switch to a PC running Microsoft Windows or to a terminal server.
• RJ-45 console port (EIA/TIA-232). The RJ-45 console port connection uses an RJ-45-to-DB-9 female
cable.
• USB mini-Type B console port (5-pin connector).
• USB-C console port
If you use the USB mini-Type B or USB-C console ports, the Cisco Windows USB device driver must be
installed on any PC connected to the console port (for operation with Microsoft Windows). Mac OS X or
Linux do not require special drivers.
The 4-pin mini-Type B connector resembles the 5-pin mini-Type B connectors. They are not compatible. Use
only the 5-pin mini-Type B.

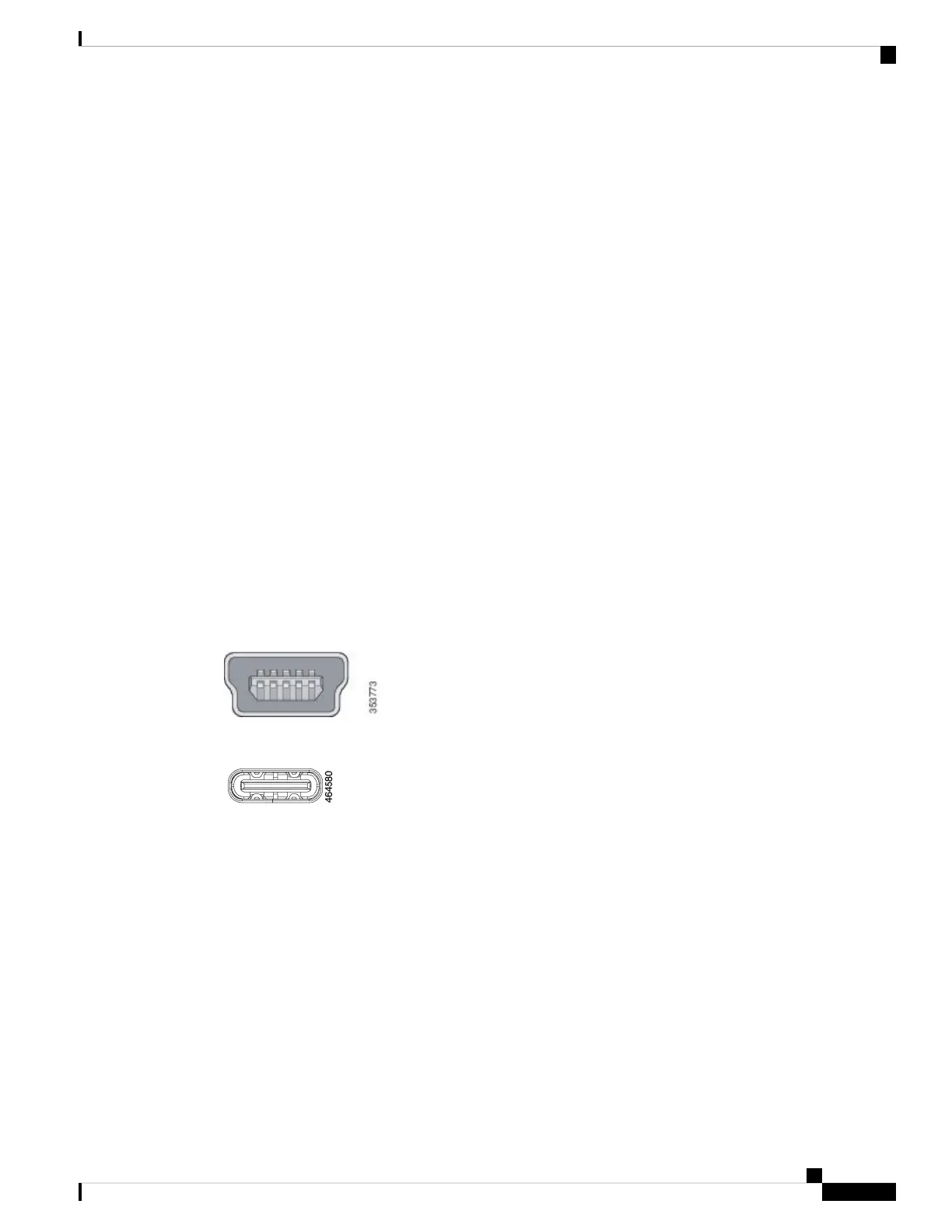

This illustration shows a 5-pin mini-Type B USB port.
Figure 13: USB Mini-Type B Port
Figure 14: USB-C Console Port
With the Cisco Windows USB device driver, you can connect and disconnect the USB cable from the console
port without affecting Windows HyperTerminal operations.
The console output always goes to both the RJ-45 and the USB console connectors, but the console input is
active on only one of the console connectors at any one time. The USB console takes precedence over the
RJ-45 console. When a cable is connected into the USB console port, the RJ-45 console port becomes inactive.
Conversely, when the USB cable is disconnected from the USB console port, the RJ-45 port becomes active.
You can use the command-line interface (CLI) to configure an inactivity timeout which reactivates the RJ-45
console if the USB console has been activated and no input activity has occurred on the USB console for a
specified time.
After the USB console deactivates due to inactivity, you cannot use the CLI to reactivate it. Disconnect and
reconnect the USB cable to reactivate the USB console. For information on using the CLI to configure the
USB console interface, see the Software Configuration Guide for Catalyst 9500 Switches.
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
17
Product Overview
RFID Tag
