C9500-16X

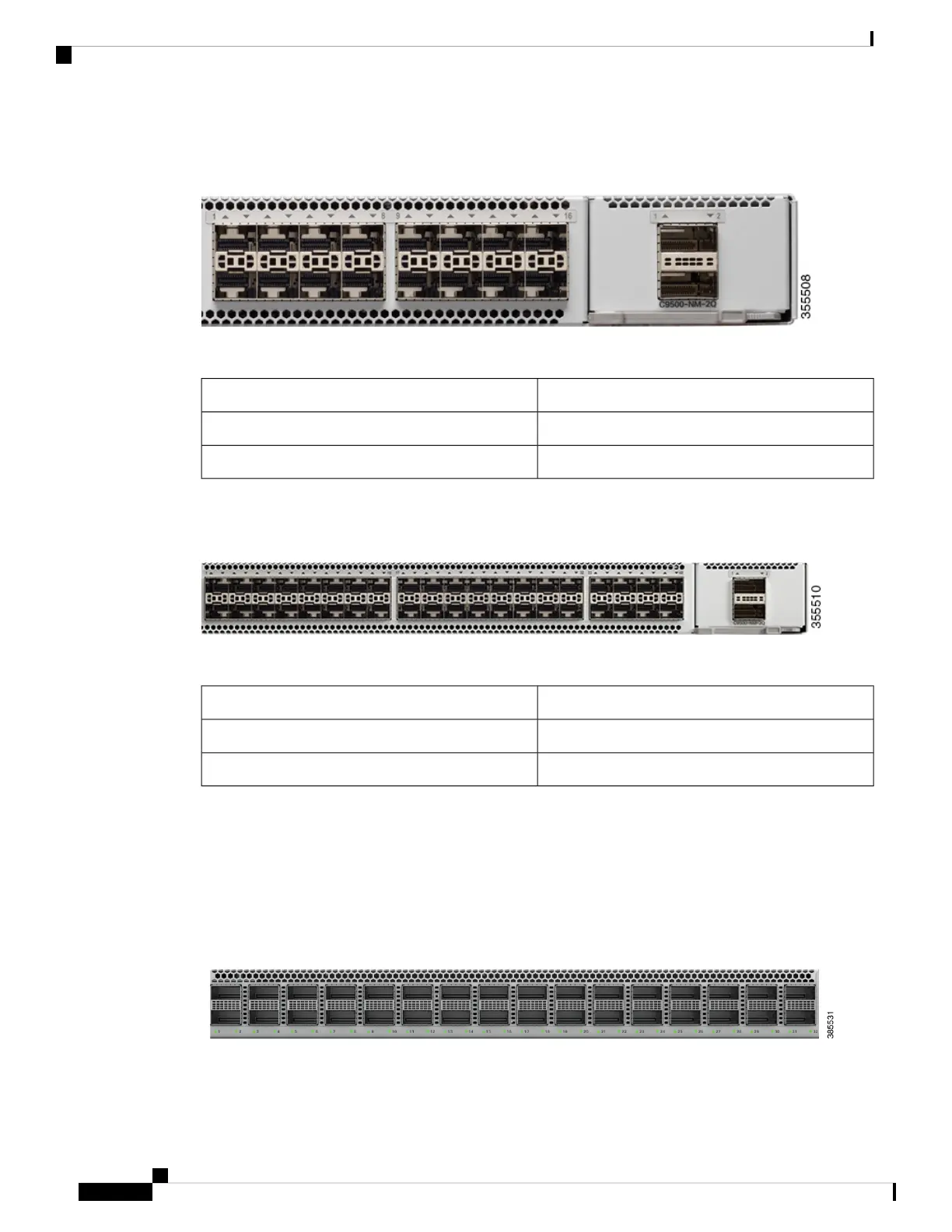

Figure 7: 10G native port numbering
Table 6: Port mapping for C9500-16X
Configurable 10-Gigabit ports with Breakout Cable40-Gigabit Uplink ports
1, 2, 3, and 417
5, 6, 7, and 818
C9500-40X
Figure 8: 10G native port numbering
Table 7: Port mapping for C9500-40X
Configurable 10-Gigabit ports with Breakout Cable40-Gigabit Uplink ports
1, 2, 3, and 441
5, 6, 7, and 842
Port Mapping for Cisco Catalyst 9500 Series High Performance Switches
The following figures show how the ports are numbered on different Cisco Catalyst 9500 Series High
Performance Switches.
C9500-32C
Figure 9: Native Port Numbering for C9500-32C
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
14
Product Overview
Port Mapping for Cisco Catalyst 9500 Series High Performance Switches

Cisco Catalyst C9500-40X Specifications

General

Model	C9500-40X
Category	Switch
Product Series	Catalyst 9500
Rack Units	1 RU
Stacking	StackWise Virtual
Software	Cisco IOS XE
DRAM	16 GB
Flash Memory	16 GB
Input Voltage	100 to 240 VAC
Power Consumption	400W
Ports	40 x 10GE
Uplink Ports	4 x 40G/100G QSFP28
Forwarding Rate	1, 440 Mpps
Dimensions	1.73 x 17.5 x 21.52 in. (4.4 x 44.5 x 54.7 cm)
