the port mapping between 40G and 10G ports for the switches when configuring 40G ports to operate as four
10G ports using breakout cables.
C9500-12Q

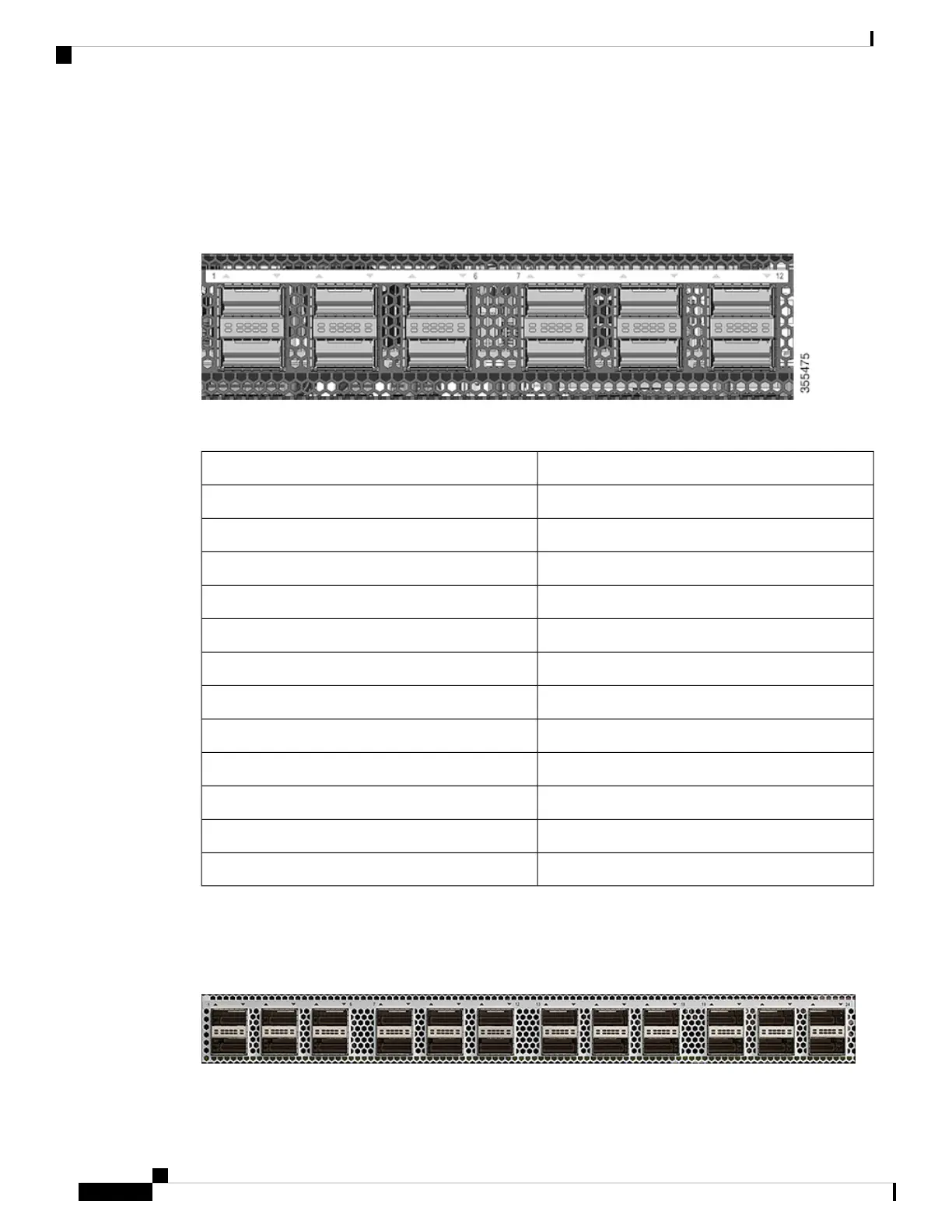

Figure 5: 40G native port numbering
Table 4: Port mapping for C9500-12Q
Configurable 10-Gigabit ports with Breakout Cable40-Gigabit native ports
1, 2, 3, and 41
5, 6, 7, and 82
9, 10, 11, and 123
13, 14, 15, and 164
17, 18, 19, and 205
21, 22, 23, and 246
25, 26, 27, and 287
29, 30, 31, and 328
33, 34, 35, and 369
37, 38, 39, and 4010
41, 42, 43, and 4411
45, 46, 47, and 4812
C9500-24Q
Figure 6: 40G native port numbering
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
12
Product Overview
Port Mapping for Cisco Catalyst 9500 Series Switches

Cisco Catalyst C9500-48Y4C Specifications

General

Total 10/25 Gigabit Ethernet ports	48
Total 40/100 Gigabit Ethernet ports	4
Switching capacity	3.2 Tbps
DRAM	16 GB
Flash	16 GB
Rack units	1 RU
Redundant power supply	Yes
Product Type	Switch
Form Factor	Rack-mountable
Jumbo Frame Support	Yes
Model	C9500-48Y4C
Operating System	Cisco IOS XE
Storage Temperature	-40 to 158°F (-40 to 70°C)
Product Series	Cisco Catalyst 9500
Operating Temperature	32 to 104°F (0 to 40°C)
Relative Humidity	5 to 95% (non-condensing)
Forwarding rate	1.2 Bpps
