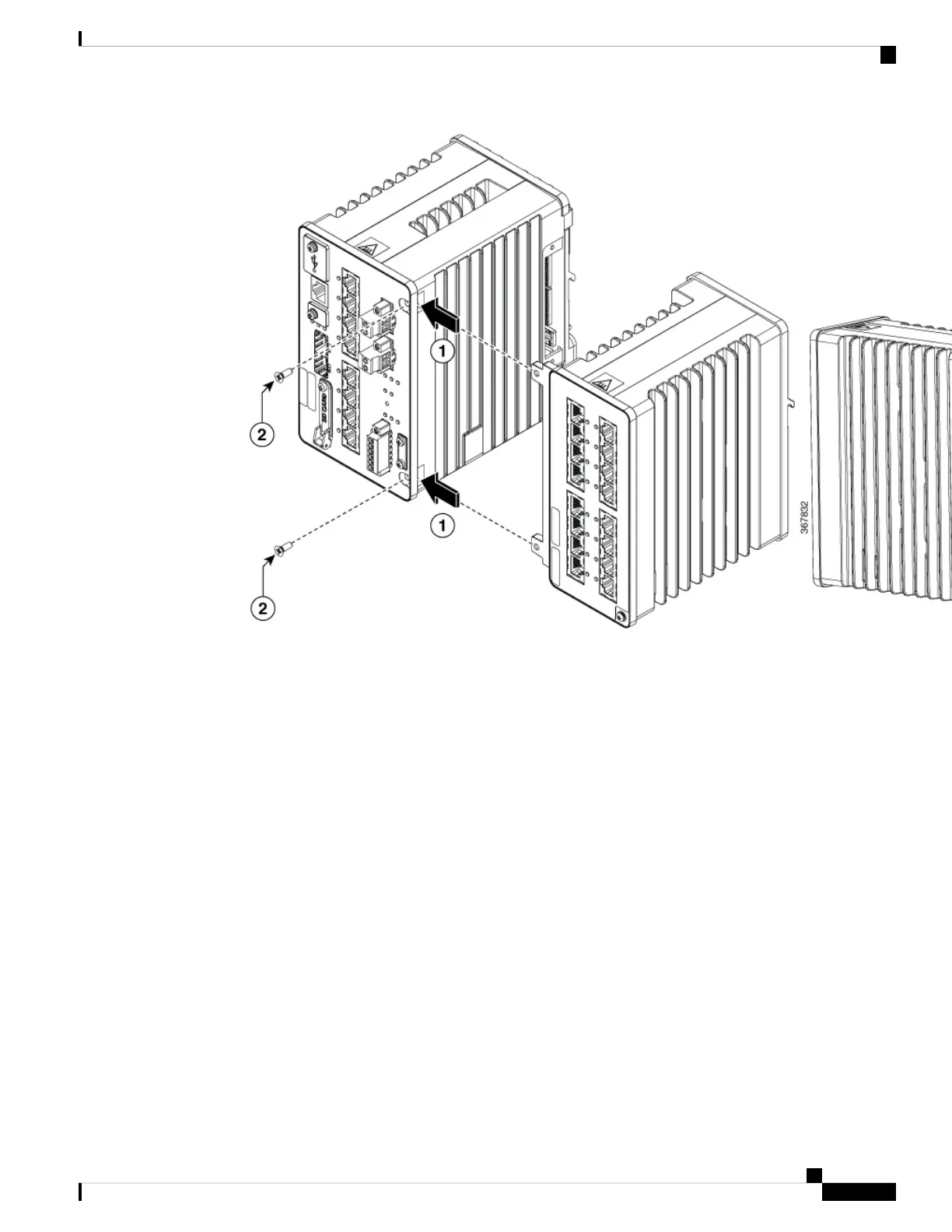

4. Secure the 4 flathead phillips screws with 5-6 in-lbs torque
Connecting to Power
Tools and Equipment
Obtain these necessary tools and equipment:
• Ratcheting torque flathead screwdriver that exerts up to 18 in-lb (2.03 N-m) of pressure.
• For the protective ground connector, obtain a single or pair of stu size 6 ring terminals (such as
Hollingsworth part number R3456B or equivalent).
• Crimping tool (such as Thomas & Bett part number WT4000, ERG-2001, or equivalent).
• 10-gauge copper ground wire.
• For DC power connections, use UL- and CSA-rated, style 1007 or 1569 twisted-pair copper appliance
wiring material (AWM) wire.
• Wire-stripping tools for stripping 10- and 14-gauge wires.
• A number-2 Phillips screwdriver.
• A flat-blade screwdriver.
Switch Installation
9
Switch Installation
Connecting to Power
