XPS = expandable power system.

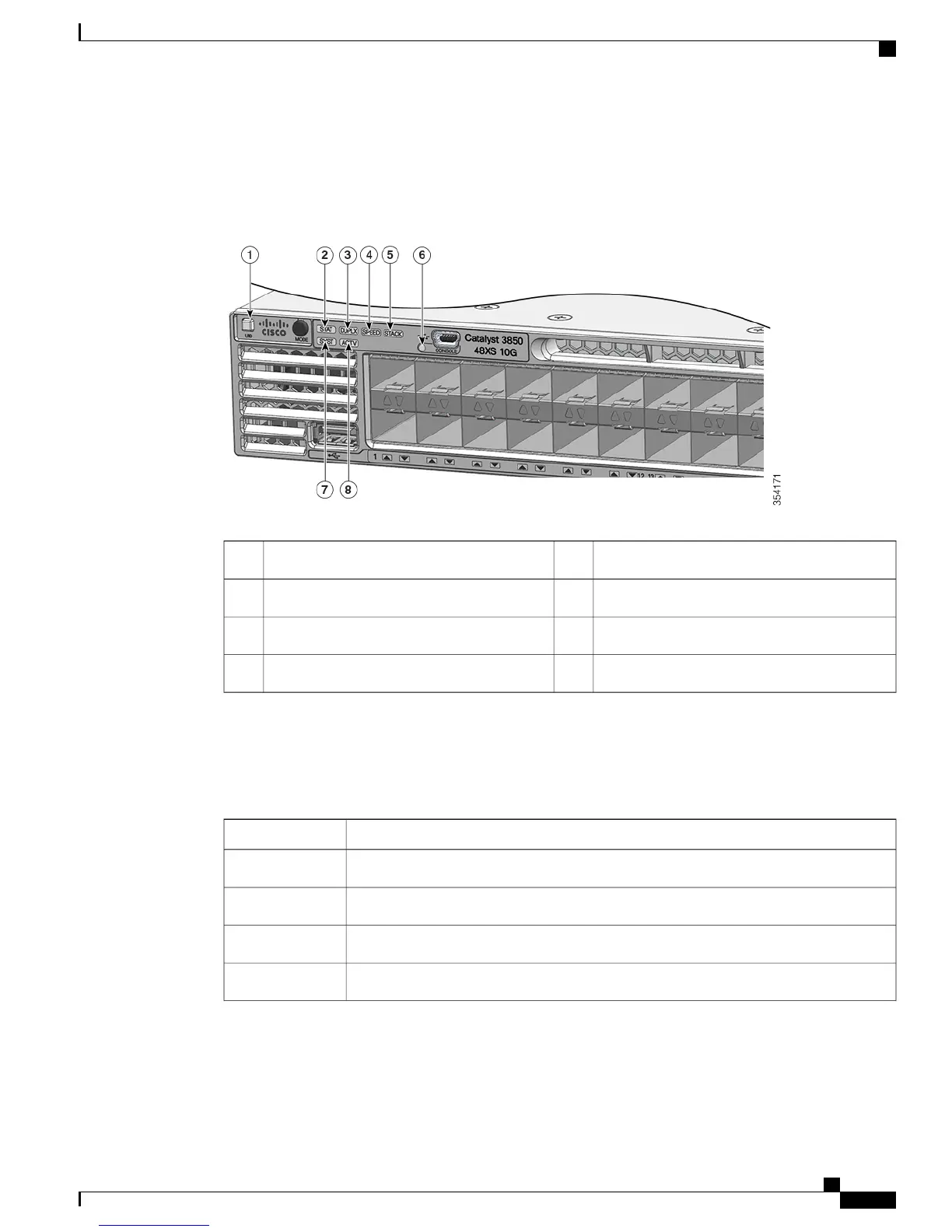

Figure 8: Switch Front Panel LEDs for the WS-C3850-48XS Switches
STACK5UID (blue beacon)1
USB mini-Type B console port LED6STAT (status)2
SYST (system)7DUPLX (duplex)3
ACTV (active)8SPEED4
SYST LED
Table 3: SYST LED
System StatusColor
System is not powered on.Off
System is operating normally.Green
POST in progress.Blinking green
System is receiving power but is not functioning properly.Amber
Catalyst 3850 Switch Hardware Installation Guide
OL-26779-05 15
Product Overview
LEDs
