Step 6
Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure an adequate
chassis ground.

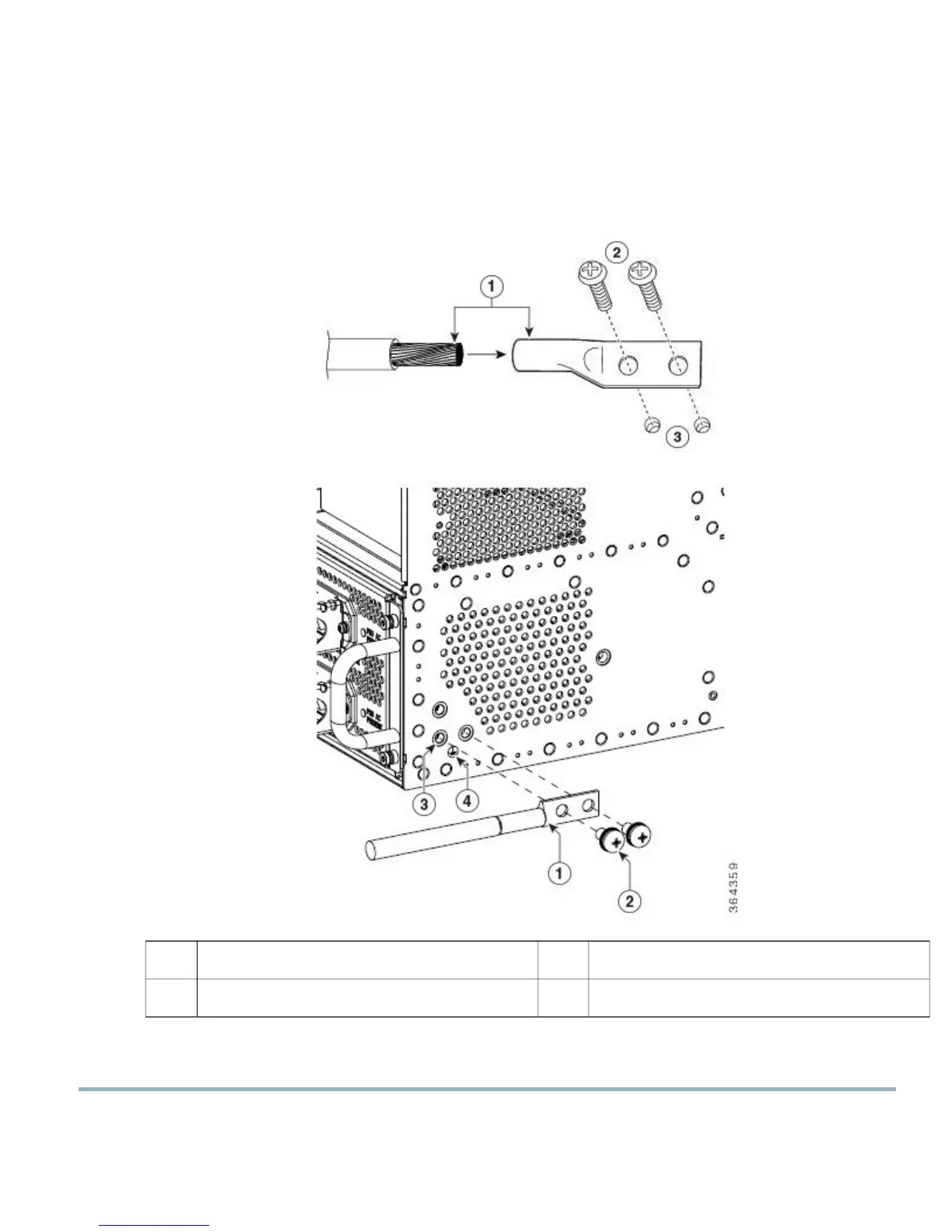

Figure 11: Chassis Ground Connection
Earth ground lug holes on the chassis3Chassis earth ground lug and lead wire1
Earth ground symbol4¼-20 Grounding screws2
The grounding lug can be mounted horizontally (as shown) or vertically depending on site preference.
