Cisco CBS Series Get To Know

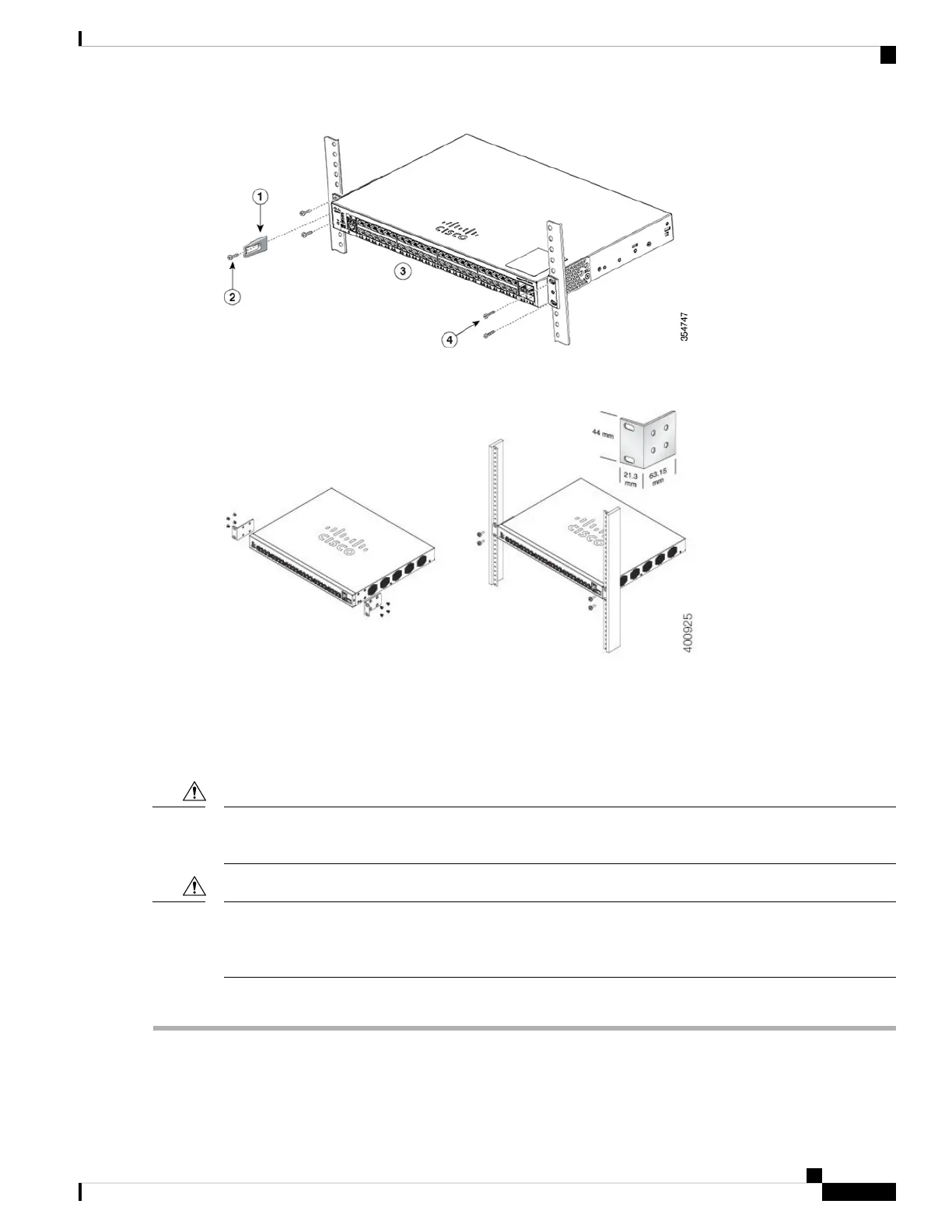

Supplied rack mounting for switch models with front mounting position. The mounting ears sit flush to the
front panel.
Wall Mounting a Switch
You can mount the switches on a wall, using wall studs or to a firmly attached plywood mounting backboard.
Read these instructions carefully before beginning installation. Failure to use the correct hardware or to follow
the correct procedures could result in a hazardous situation to people and damage to the system.
Caution
Do not wall-mount the switch with its front panel facing up. Following safety regulations, wallmount the
switch with its front panel facing down or to the side to prevent airflow restriction and to provide easier access
to the cables.
Caution
To wall-mount a 24-port switch using brackets:
Step 1 Attach a 19-inch bracket to one side of the switch.
Step 2 Repeat the previous step to attach the other bracket to the opposite side of the switch.
Get To Know Your Switch
3
Get To Know Your Switch
Wall Mounting a Switch

Cisco CBS Series Specifications

General

Category	Switch
Port Speed	10/100/1000 Mbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Dimensions	Varies by model
Weight	Varies by model
Series	CBS Series
Management	Web-based, CLI
Layer	Layer 2
PoE	Available on some models (PoE and PoE+)
Uplink	SFP
Mounting	Desktop or rack-mountable
Switching Capacity	Varies by model
Forwarding Rate	Varies by model
VLAN Support	Yes
QoS	Yes
Security Features	ACLs, 802.1X authentication, Port Security
Management Interface	Web GUI
MAC Address Table Size	Varies by model
Jumbo Frame Support	Yes
Energy Efficiency	Energy Efficient Ethernet (EEE)
Ports	Varies by model (8, 16, 24)
