Cisco CBS Series User Manual

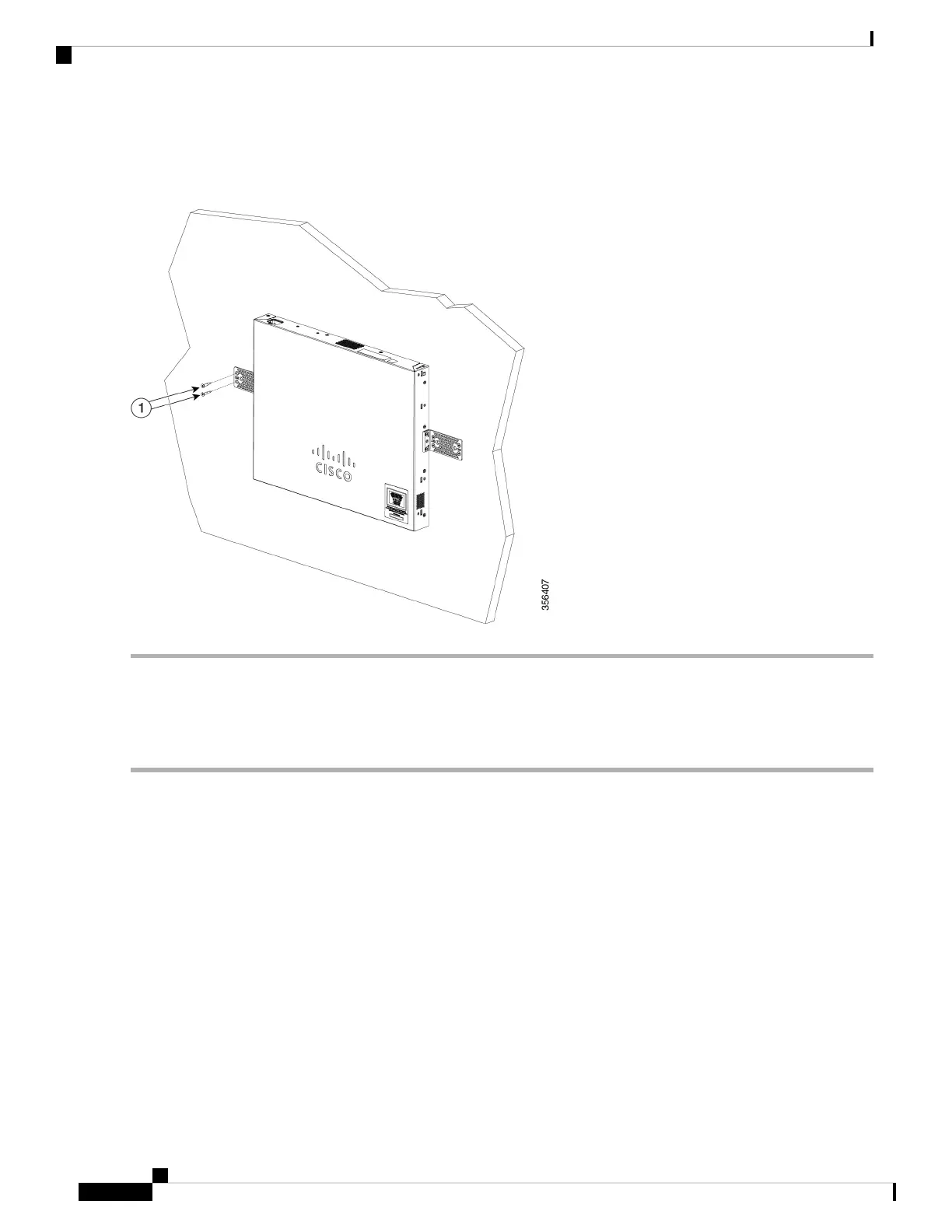

Step 3 After the brackets are securely attached, mount the switch with the front panel facing down. Make sure that the switch
is attached securely to wall studs or to a firmly attached plywood-mounting backboard. Wall-mounting a 24-port switch.
Wall-mounting a 24-port
Wall Mount an 8 Port Switch
To wall-mount a 8-port switch using mounting screws, follow these steps:
Step 1 Locate the screw template. The template is used to align the mounting screw holes.
Step 2 Position the screw template so that the edge that is marked as CABLE SIDE ENTRY faces toward the floor. Make sure
that the switch is attached securely to wall studs or to a firmly attached plywoodmounting backboard.
Step 3 Peel the adhesive strip off the bottom of the screw template.
Step 4 Attach the screw template to the wall.
Step 5 Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the two screw template slots.
Step 6 Insert two screws in the slots on the screw template, and tighten them until they touch the top of the screw template.
Installing the mounting screws on the wall
Figure 3 Installing the mounting screws on the wall
Get To Know Your Switch
4
Get To Know Your Switch
Wall Mount an 8 Port Switch

Cisco CBS Series Specifications

General

Category	Switch
Port Speed	10/100/1000 Mbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Dimensions	Varies by model
Weight	Varies by model
Series	CBS Series
Management	Web-based, CLI
Layer	Layer 2
PoE	Available on some models (PoE and PoE+)
Uplink	SFP
Mounting	Desktop or rack-mountable
Switching Capacity	Varies by model
Forwarding Rate	Varies by model
VLAN Support	Yes
QoS	Yes
Security Features	ACLs, 802.1X authentication, Port Security
Management Interface	Web GUI
MAC Address Table Size	Varies by model
Jumbo Frame Support	Yes
Energy Efficiency	Energy Efficient Ethernet (EEE)
Ports	Varies by model (8, 16, 24)
