Back Panel Description
Back Panel Description

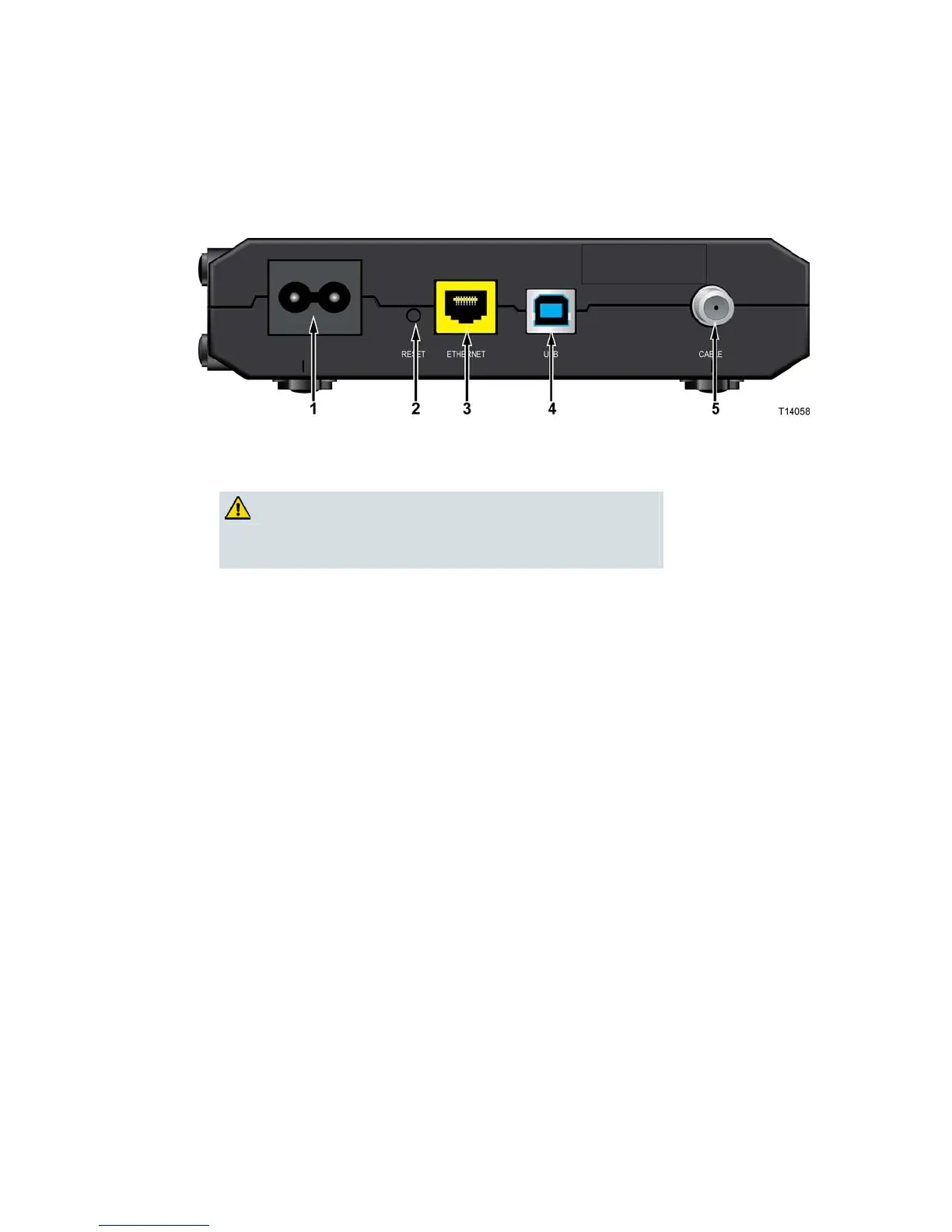

The following illustration describes the back panel components of the
DPQ2160/EPQ2160 cable modem.
1 100-240 VAC—Connects the cable modem to the DC output of the AC power
cord that is provided with your cable modem. Only use the AC power cord that
is provided with your cable modem
CAUTION:
Avoid damage to your equipment. Only use the AC
power cord that is provided with your cable modem.
2 RESET—Reset-to-Default button (Factory Reset)
Note: This button is for maintenance purposes only. Do not use unless told to do
so by your service provider.
3 ETHERNET—RJ-45 Ethernet port connects to the Ethernet port on your PC
4 USB—12 Mbps USB port connects to the USB port on your PC
5 CABLE—F-Connector connects to an active cable signal from your cable service
provider
