Cisco EPC3212 User Manual

8 Part Number 4021203 Rev A
CE Compliance
CE Compliance

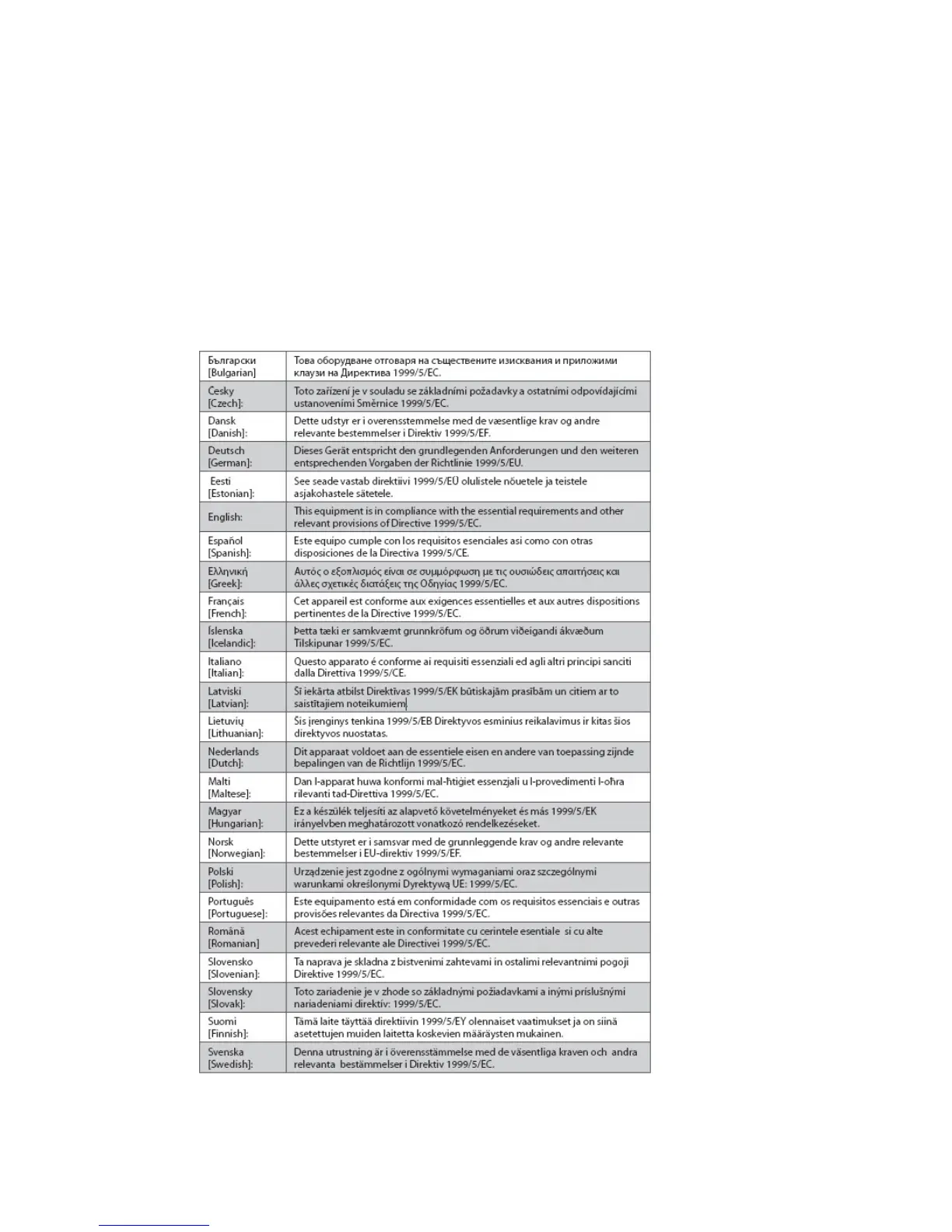

Declaration of Conformity with Regard to the EU Directive 1999/5/EC
(R&TTE Directive)
This declaration is only valid for configurations (combinations of software, firmware and
hardware) supported or provided by Cisco Systems for use within the EU. The use of
software or firmware not supported or provided by Cisco Systems may result in the
equipment no longer being compliant with the regulatory requirements.

Cisco EPC3212 Specifications

General

DC-in jack	Yes
Modem (RJ-11) ports	2
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
LED indicators	Link, Power
Cables included	LAN (RJ-45), USB
Internal	No
Modulation	128-QAM, 16-QAM, 32-QAM, 64-QAM, 8-QAM, QPSK
Frequency range	0.005 - 0.065 GHz
Power consumption (typical)	9.6 W

Weight and Dimensions

Weight	390 g
Dimensions (WxDxH)	176 x 145 x 50 mm
