Cisco Firepower 1100 Series Hardware Installation Guide

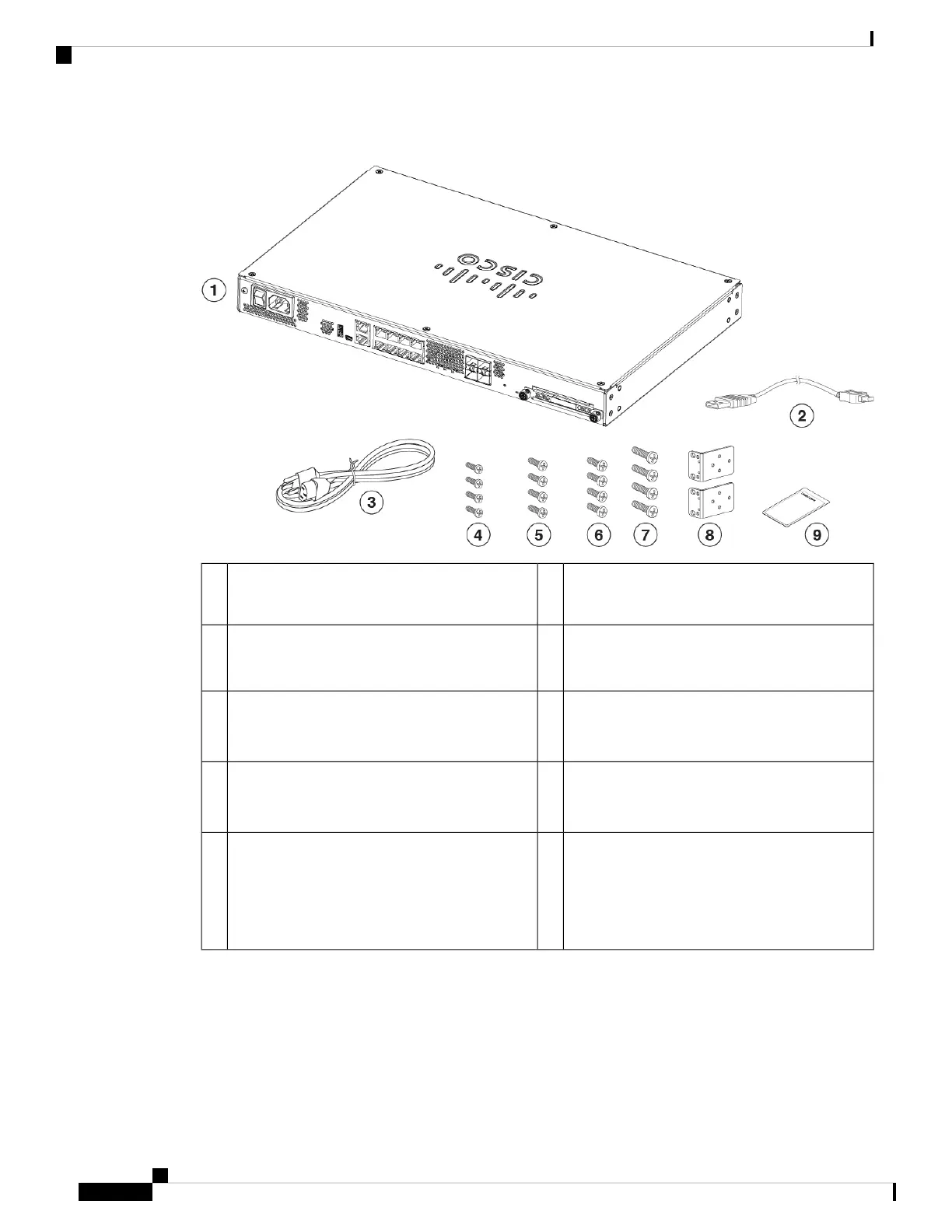

Figure 2: Firepower 1100 Package Contents
USB console cable
Type A to Mini Type B (part number 53-1977-01)
2Chassis1
Four 10-32 x 0.75-inch Phillips screws (part
number 48-0441-01) for securing the chassis to
your rack
4Power cord3
Four M6 x 1 x1 9-mm Phillips screws (part
number 48-101022-01) for securing the chassis
to your rack
6Four 12-24 x 0.75-inch Phillips screws (part
number 48-0440-01) for securing the chassis to
your rack
5
Tow rack-mount brackets (part number
700-117078-01)
8Four M4 x 8-mm Phillips screws (part number
48-0451-01) for securing the rack-mounting
bracket to the chassis
7
—Cisco Firepower 1100
This document has a URL pointing to the
hardware installation guide, a URL pointing to
the regulatory and safety guide, and a QR code
and URL pointing to the Getting Started Guide.
9
QR Code Sticker
The QR code sticker on the rear panel of the chassis points to the Firepower Easy Deployment Guide for
Cisco Firepower 1000 or 2100 Firewalls that explains low touch provisioning (LTP). LTP allows anyone to
