Cisco Firepower 1100 Series Hardware Installation Guide

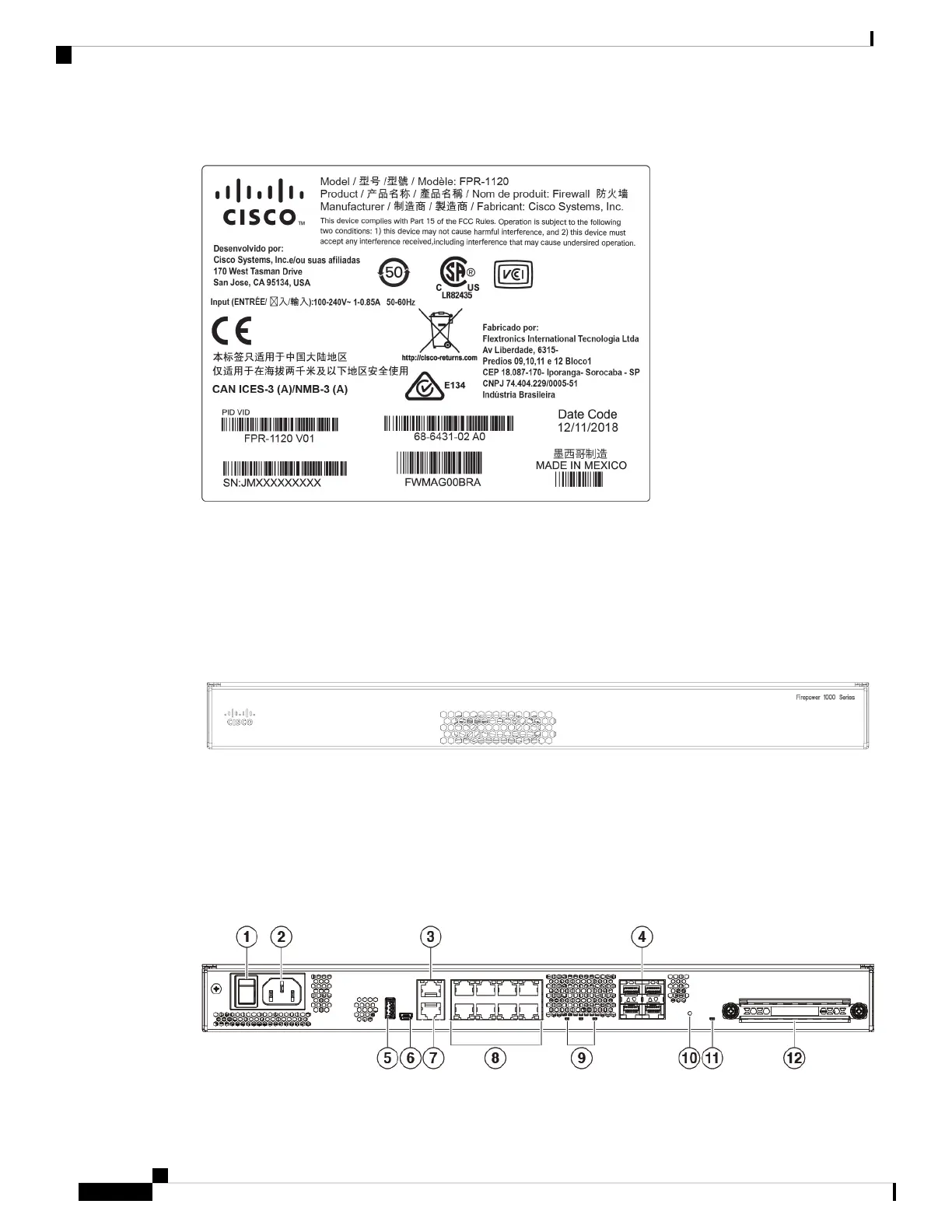

Figure 5: Compliance Label on the Chassis
Front Panel
The following figure shows the front panel of the Firepower 1100. Note that there are no connectors or LEDs
on the front panel.
Figure 6: Firepower 1100 Front Panel
Rear Panel
The following figure shows the rear panel of the Firepower 1100. See Rear Panel LEDs, on page 9 for a
description of the LEDs. See Features, on page 1 for a description of each feature.
Figure 7: Firepower 1100 Rear Panel
Cisco Firepower 1100 Series Hardware Installation Guide
8
Overview
Front Panel
