For the 2110/2120, install the three 8-32" screws into each side of the chassis, and align the inner rail so that
the three slots on the rail line up with the screws on the chassis.

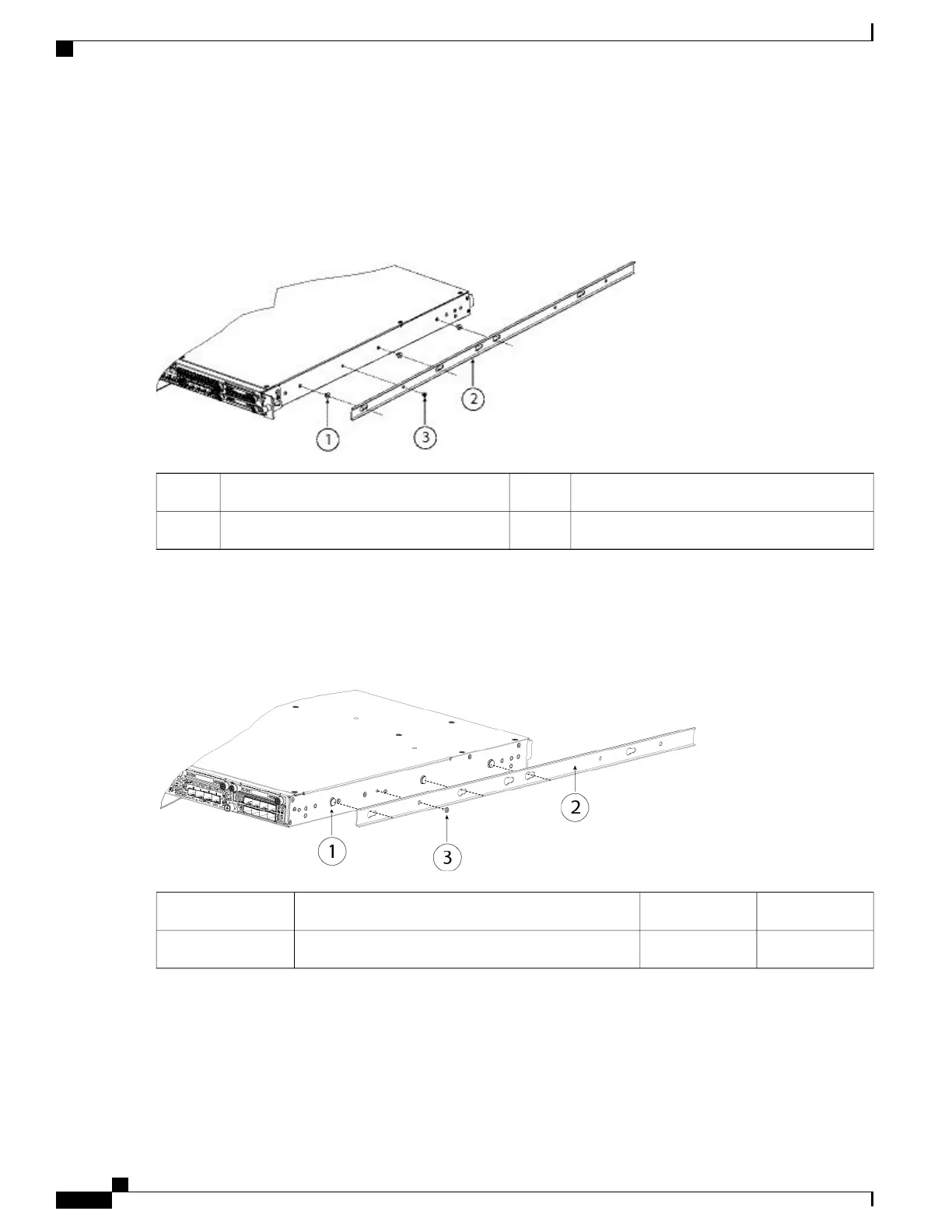

Figure 15: Installing the Screws on the 2110/2120 Chassis and Lining up the Inner Rail
Inner rail28-32" screw1
M3X6mm screw (1 per side)3
•
For the 2130/2140, align the inner rail so that the three slots on the rail line up with the three pegs on the side
of the chassis.
Figure 16: Lining up the Inner Rail with the Pegs on the 2130/2140 Chassis
Inner rail2Mounting peg on the chassis for the keyed slot1
M3X6mm screw (1 per side)3
c) Set the keyed slots over the screws/pegs, and then slide the rail toward the front to lock it in place on the screw/pegs.
The rear key slot has a metal clip that locks over the screw/peg.
d) Using one M3X6mm screw, secure the inner rail to the side of the chassis to prevent sliding.
