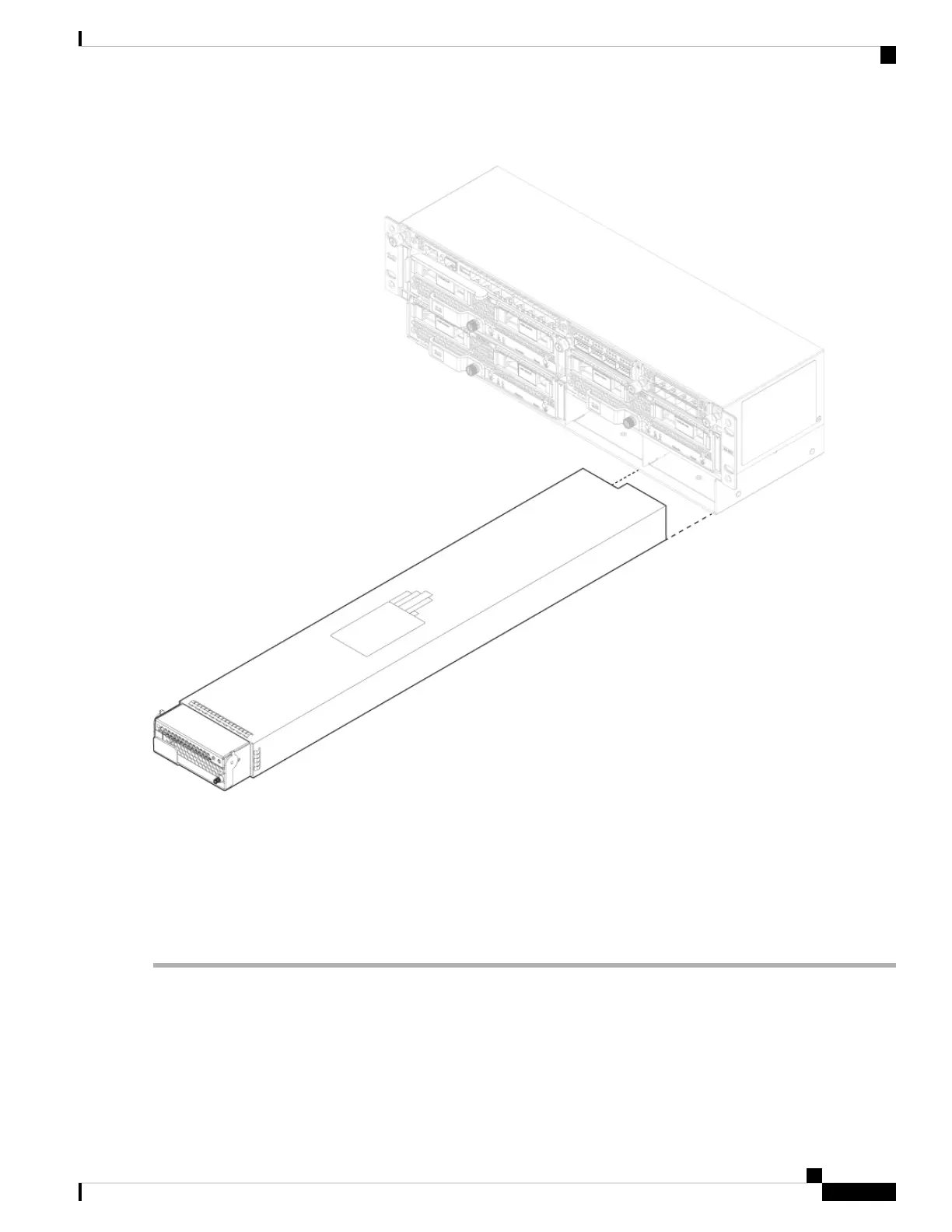

Figure 9: Remove and Replace the Power Supply Module
Step 4 To install a new power supply, place the handle of the power supply module in the up position.
Step 5 Hold the power supply module with both hands and slide it into the power supply module bay.
Step 6 Gently push the power supply module into the chassis until it is fully seated, and press the handle down.
Step 7 Tighten the captive screw on the right.
Step 8 Verify the power supply module is operating correctly by checking the power supply module LED. See Power Supply
Modules for more information.
