Figure 14 Connecting the Console Cable
4. Configure the baud rate and character format of the PC or terminal to match the console port characteristics:
— 9600 baud
— 8 data bits
— 1 stop bit
— No parity
— None (flow control)
5. Connect power to the switch as described in Connecting to Power, page 37.
The PC or terminal displays the bootloader sequence.
6. Press Enter to display the setup prompt.
7. Follow the steps in the Completing the Setup Program, page 100.
USB Mini-Type B Console Port
If you are connecting the switch USB-mini console port to a Windows-based PC for the first time, install a USB driver.
See Installing the Cisco Microsoft Windows XP, 2000, Vista, 7, 8, and 10 USB Device Driver, page 99 for more
information.
To remove the cover from the USB mini-type B console port:
1. Use a Phillips screwdriver to loosen the captive screw on the USB mini-type B console port cover. See Figure 15 on
page 35.

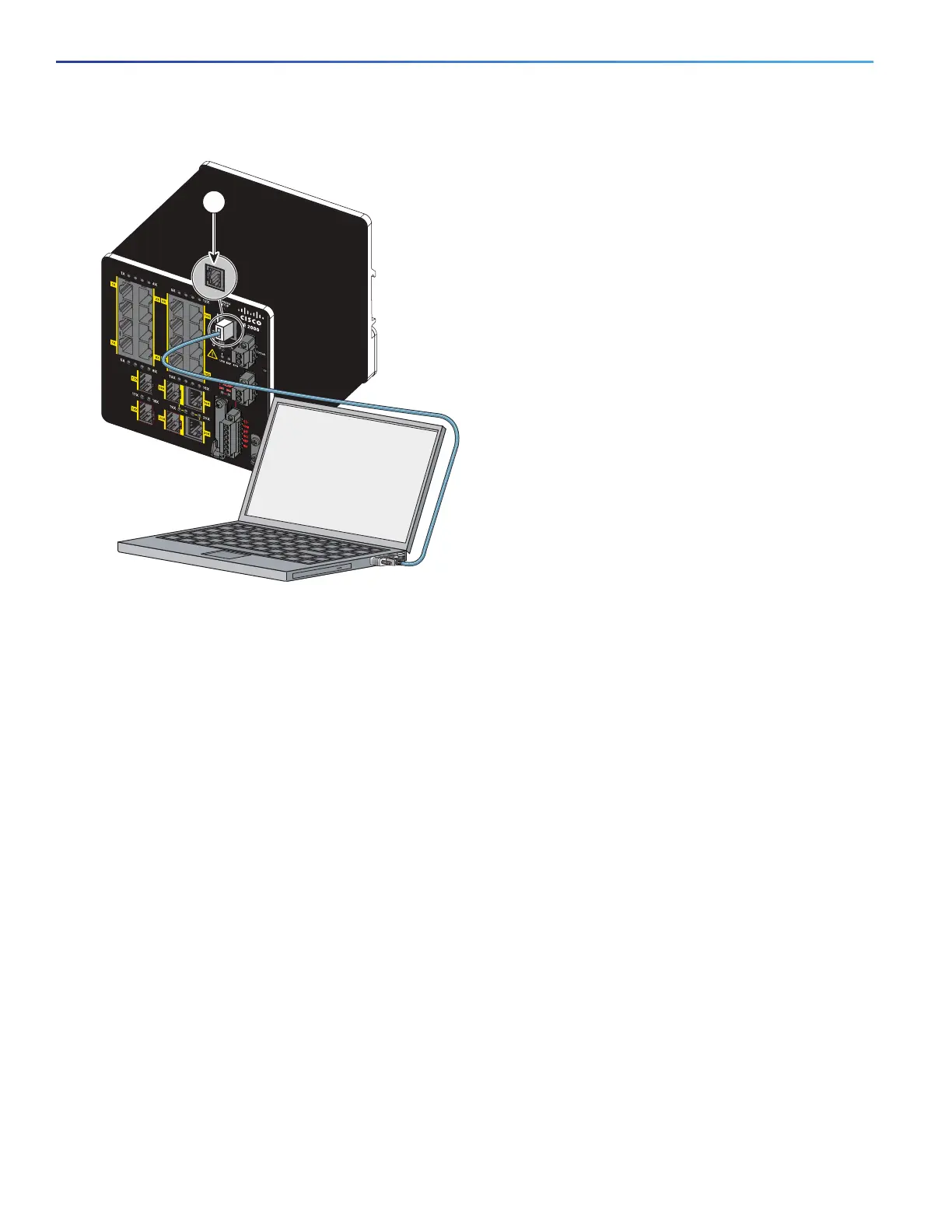

1 RJ-45 console port 2 Console cable (RJ-45-to-DB-9 adapter cable)
