Cisco IE-2000-8TC-G-L User Manual

35
2. Remove the cover.

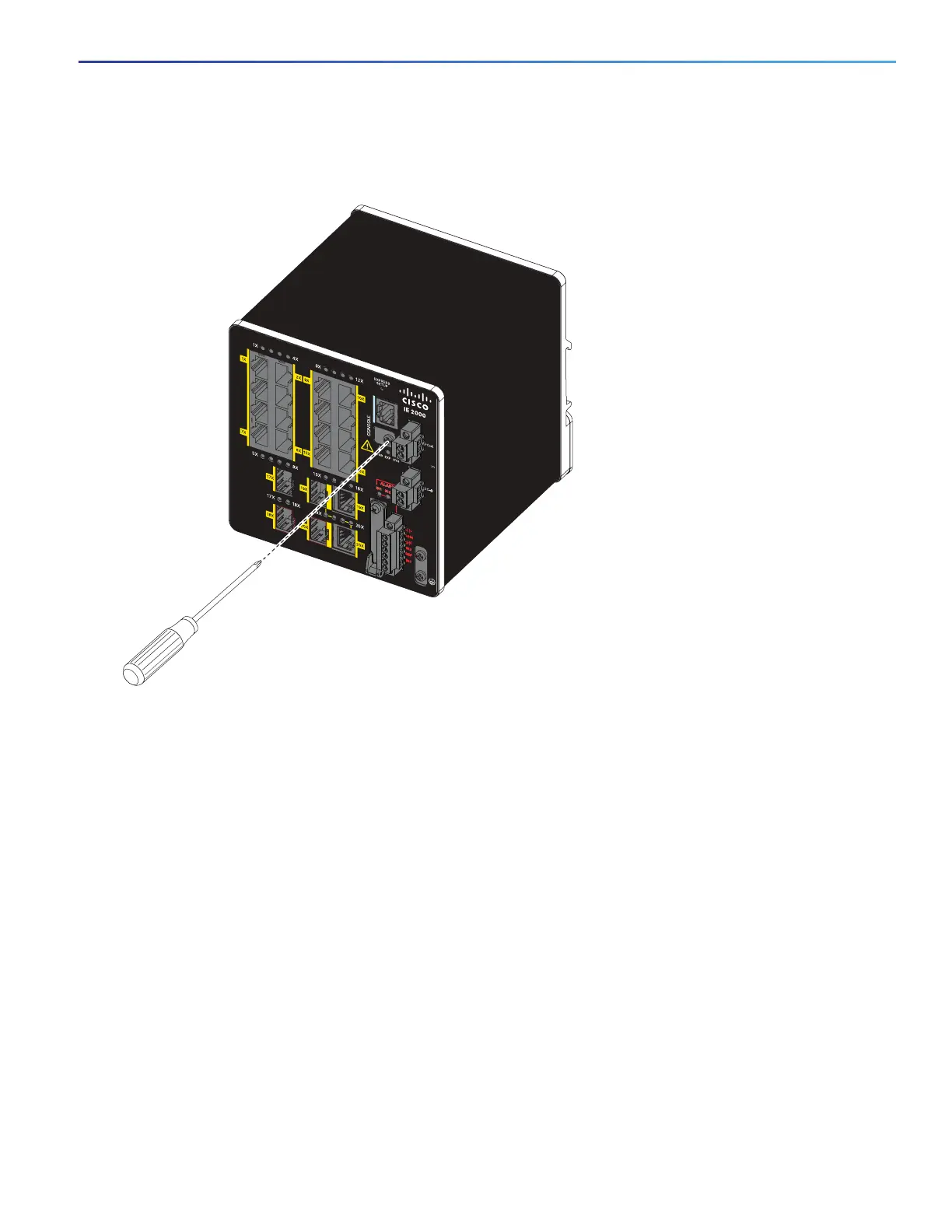

Figure 15 Removing the USB Mini-Type B Console Port Cover
3. Connect a USB cable to the PC USB port.
4. Connect the other end of the cable to the switch mini-B (5-pin connector) USB-mini console port. See Figure 16 on
page 36.
16TC
±12/24/48
0.5-3.0A
332703

Cisco IE-2000-8TC-G-L Specifications

General

Brand	Cisco
Model	IE-2000-8TC-G-L
Category	Switch
Language	English
