47

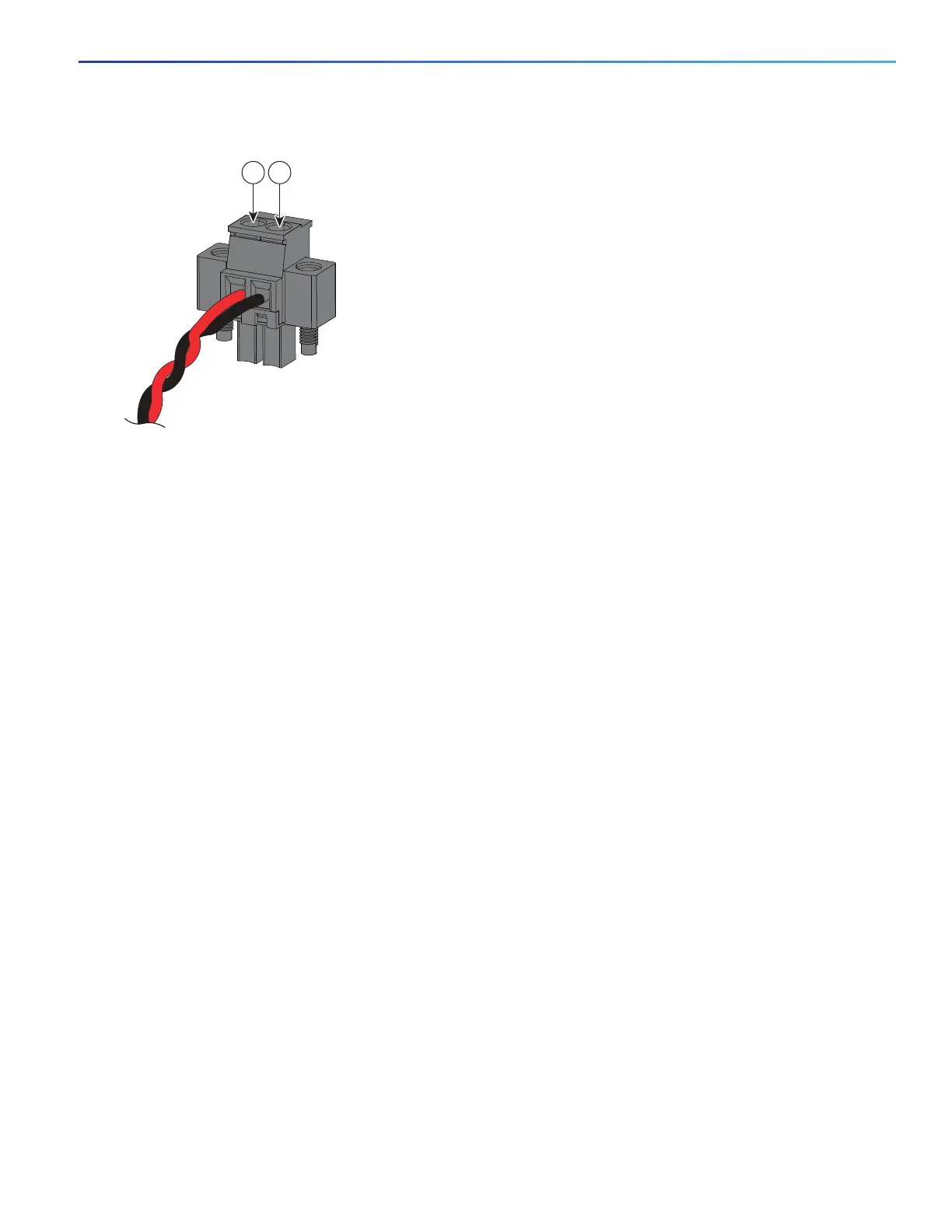

Figure 25 Inserting Wires in the Power Connector
7. Use a ratcheting torque flathead screwdriver to torque the power connector captive screws (above the installed wire
leads) to 2 in-lb (0.23 N-m). See Figure 26 on page 48.
Note: Do not over-torque the power connector’s captive screws. The torque should not exceed 2 inch-lbs (0.23
N-m).
1 Power source positive connection 2 Power source return connection
