65

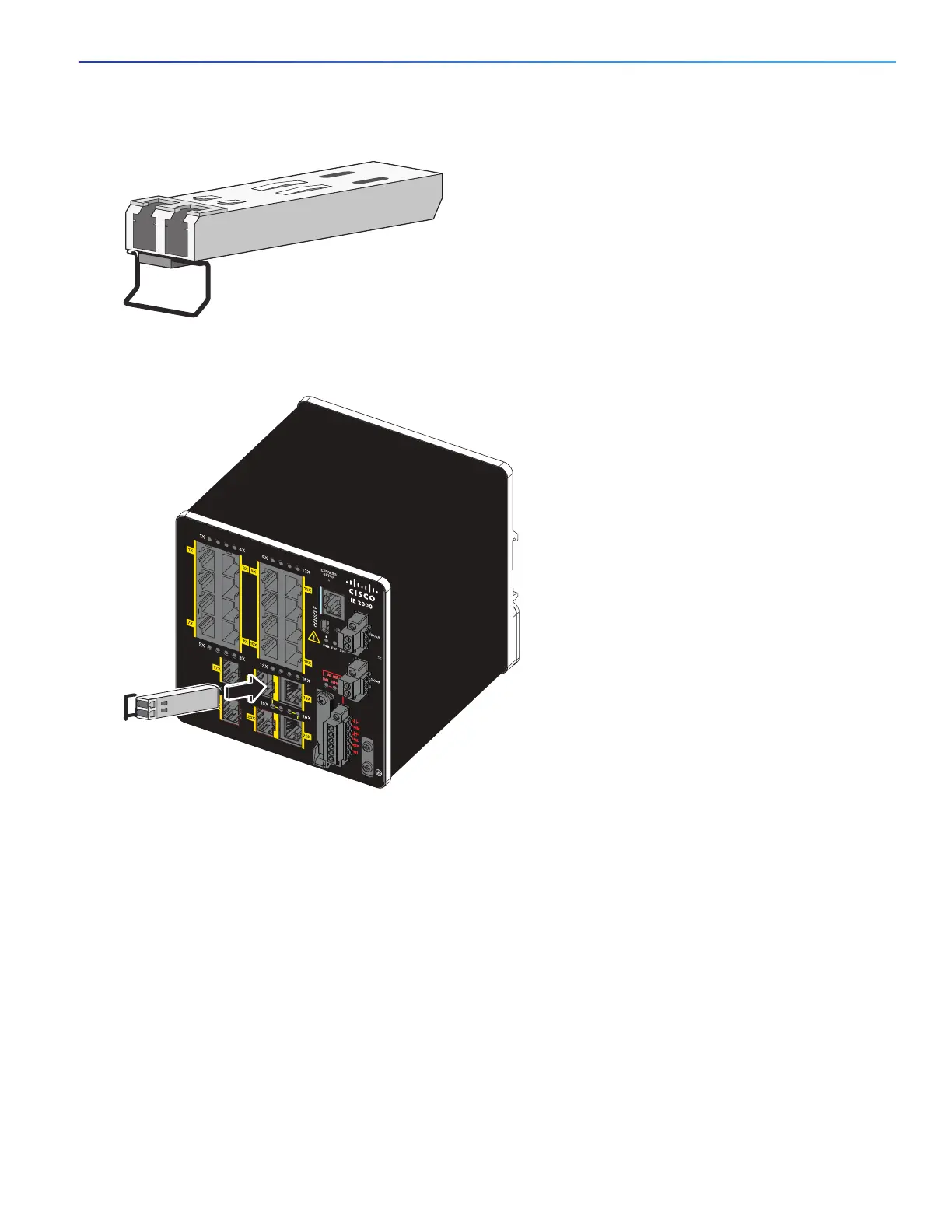

Figure 39 LC SFP Module with Open Bale-Clasp Latch
Figure 40 Installing an SFP Module into an SFP Module Slot
Installing LC SFP Modules
To insert an LC SFP module into the SFP module slot:
1. Attach an ESD-preventive wrist strap to your wrist and to a grounded bare metal surface.
2. Find the send (TX) and receive (RX) markings that identify the correct side of the SFP module.
On some SFP modules, the send and receive (TX and RX) markings might be replaced by arrows that show the
direction of the connection, either send or receive (TX or RX).
3. Align the SFP module sideways in front of the slot opening.
4. Insert the SFP module into the slot until the connector on the module snaps into place in the rear of the slot. See
Figure 40 on page 65.
5. Remove the dust plugs from the SFP module optical ports and store them for later use.
16TC
±12/24/48
0.5-3.0A
331559
