Description/ActivityIconDescription/ActivityIcon
Red, Green, and Blue User Configurable
LED
VPN
Off — No VPN tunnel
Steady Green — At least one VPN tunnel is up
RJ45 Fast Ethernet Ports -Link Status 0:1
Off — No link
Steady Green — Link is up
Flashing — Transmitting and Receiving
data
Gigabit Ethernet Combo Port
Off — No Link
Solid Green — Copper Link up, no activity
Flashing Green — Copper Link up, with activity
Solid Amber — SFP Link up, no activity
Flashing Amber — SFP Link up, with activity
Digital I/O
Off - InactiveSolid Yellow- Active
mSATA Storage
Off - Not powered on or no activityFlashing Green -
mSATA being accessed

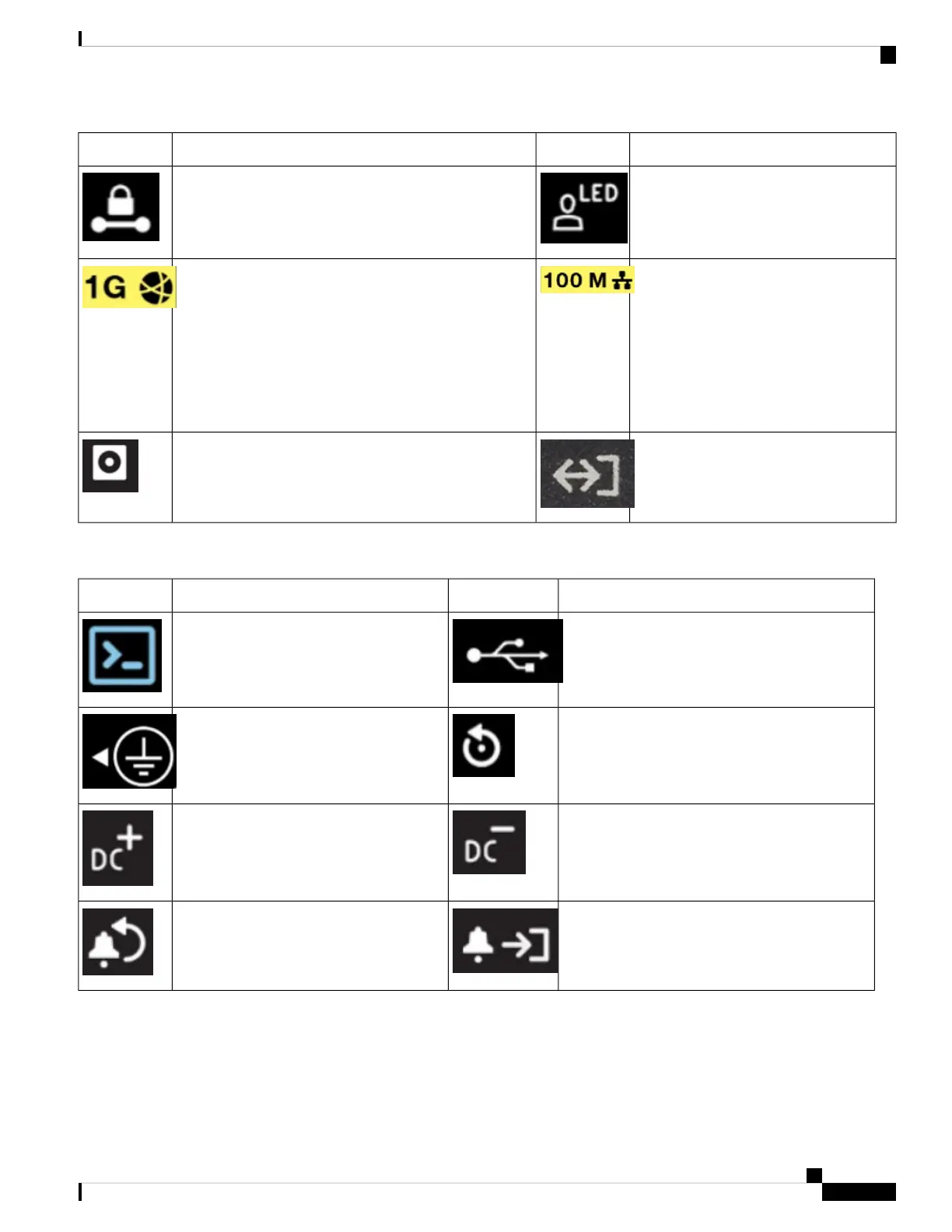

Table 8: Icons only
DescriptionIconDescriptionIcon
USB 2.0 Type A Port for Storage and NetworkingUSB 2.0 Console Mini-B Connector
Reset ButtonGrounding point (located on side of device)
DC Power ReturnDC Power Input (12V to 48V)
Alarm INAlarm Return
Product Overview
13
Product Overview
Front Panel Icons and LEDs

Cisco IR1101 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
SIM card slot	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1Q
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
USB version	2.0
USB ports quantity	2
Combo SFP ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output voltage	12 - 48 V
Power source type	DC
Power consumption (typical)	9.8 W
Operating altitude	-152.4 - 1524 m
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, 2nd edition; CAN/CSA C22.2 No. 60950-1, 2nd edition, EN 60950-1, 2nd edition; CB to IEC 60950-1, 2nd edition
Flash memory	8000 MB
Storage media	Flash
Internal memory	4096 MB
Internal memory type	DRAM
Electromagnetic compatibility	47 CFR Part 15 B, EN 55032:2015, CISPR 32 Edition 2, CNS13438: 2006, EN 300 386 V1.6.1, ICES-003 Issue 6: 2016, KN 32: 2015, TCVN 7189: 2009, V-2/2015.04, V-3/2015.04, AS/NZ CISPR32, EN 61000-4-2, 3, 4, 5, 6, 8, 9, 16, 17, 18, and 29, CISPR24: 2010 + A1: 2015, EN 300 386 V1.6.1, EN 55024: 2010 + A1: 2015, EN 55035:2017, KN35: 2015, TCVN 7317:2003, QCVN 18:2014
Product color	Black
Routing protocols	BGP, EIGRP, HSRP, RIP-1, RIP-2
Data link protocols	IPv4, IPv6
Supported protocols	SCADA, DNP3, T101-104, Raw Socket TCP, UDP
Mobile network generation	Not supported
VPN support	Cisco Easy VPN Solution client and server NAT transparency Dynamic Multipoint VPN (DMVPN) Tunnel-less Group Encrypted Transport VPN Flex VPN
Firewall security	Cisco IOS
Security algorithms	256-bit AES, HTTPS, IPSec, SSL/TLS
Authentication method	Secure HTTP (HTTPS), FTP, Telnet Authentication Proxy
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	124.9 mm
Width	132.5 mm
Height	60 mm
Weight	1020 g
