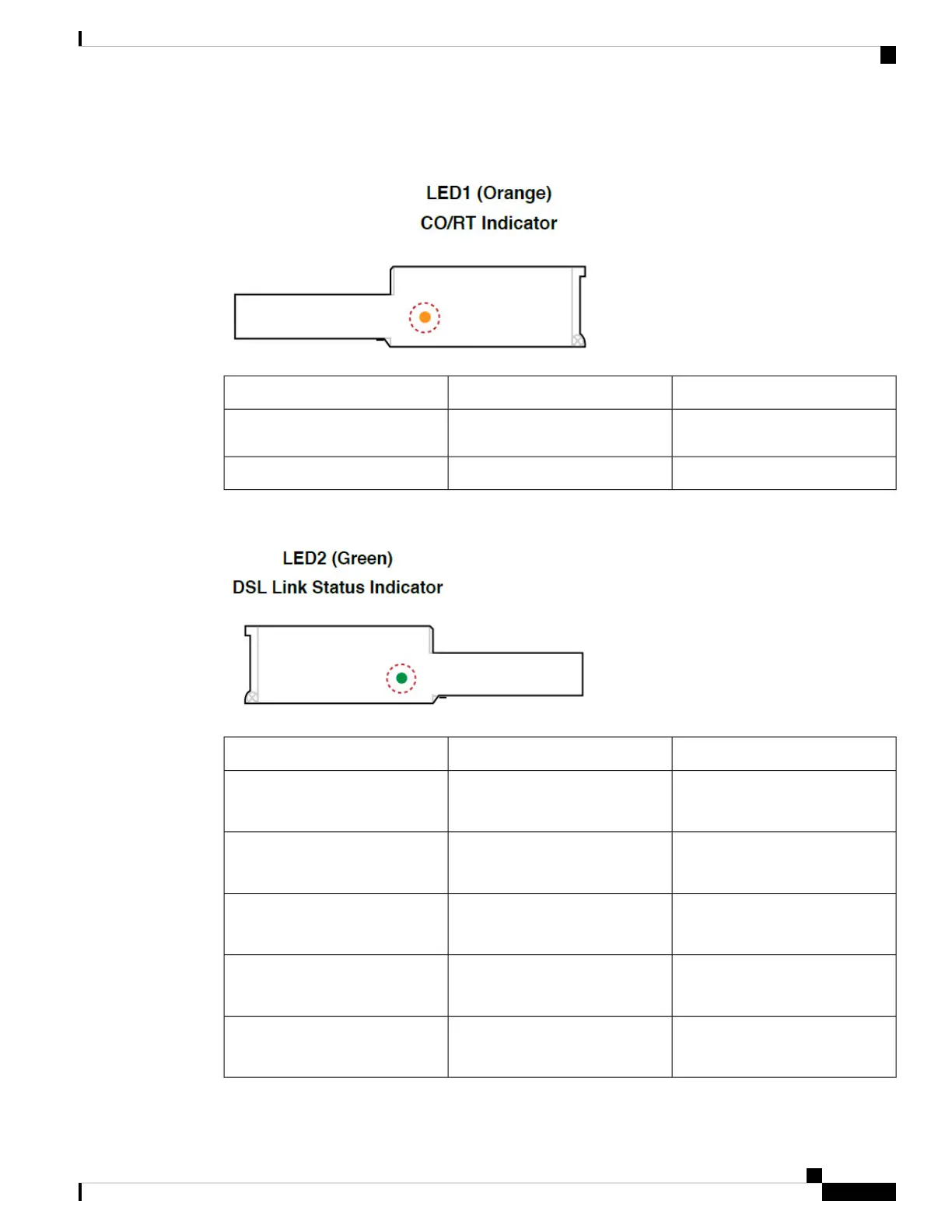

Figure 16: LED 1
DescriptionStateIndicator LED
CPE side (expected to be ON when
used on an IR router)
OnLED 1 (Orange)
Central office side (not supported)OffLED 1 (Orange)
Figure 17: LED 2
DescriptionStateIndicator LED
No DSL Connection
Possibly a bad cable, link, etc...
OffLED 2 (Green)
xDSL Status LED
IdleSlow FlashLED 2 (Green)
xDSL Status LED
TrainingFast FlashLED 2 (Green)
xDSL Status LED
ShowtimeSteadyLED 2 (Green)
xDSL Status LED
Packet TransmitExtremely Rapid FlashLED 2 (Green)
xDSL Status LED
