Getting Started
TROUBLESHOOTING TIP:
Most minor issues can be resolved by rebooting your Set-Top Box.
This can be accomplished in either of the following ways:
1. Unplug the power cord (#12) and wait 20 seconds.
2. Reconnect the cord. System will start the reboot process.
This may take up to five minutes.
3. Press the Menu button on your remote control.
4. Scroll to Settings and press OK.
5. Scroll down to Restart System and press OK. The system will
start the reboot process. This may take up to five minutes.

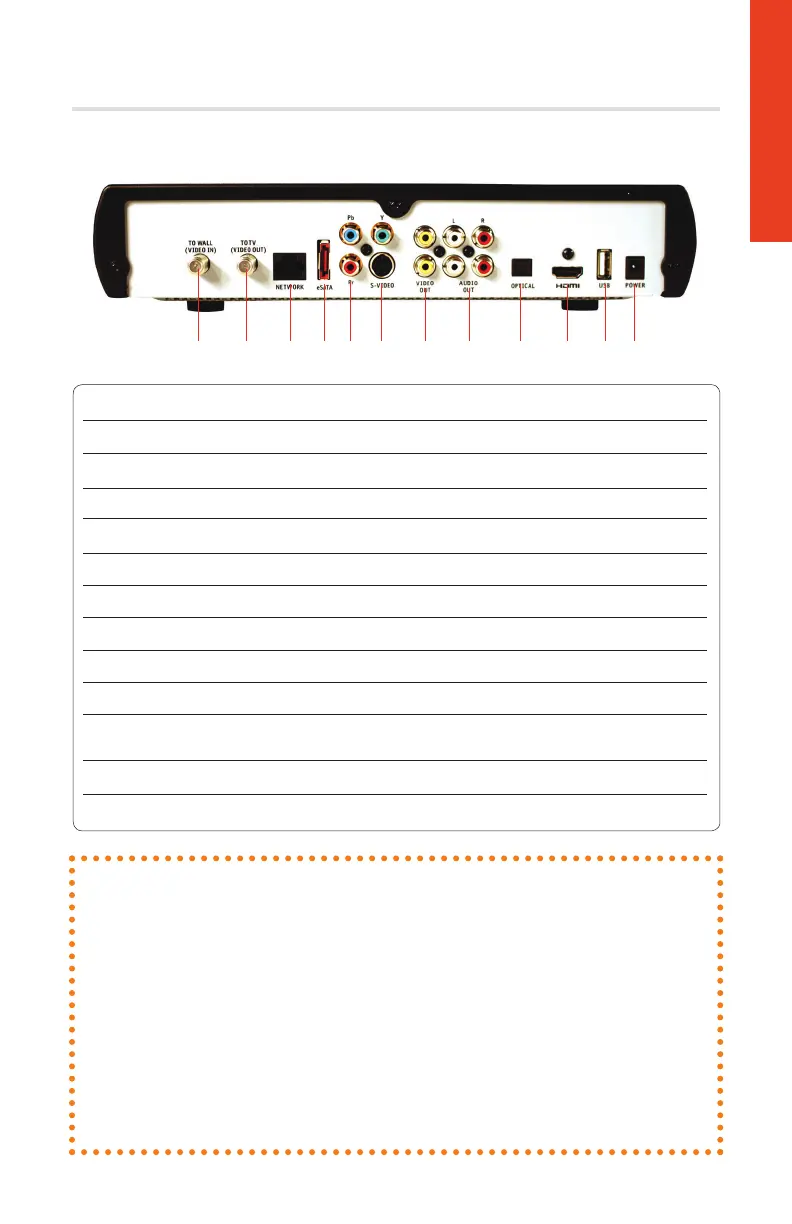

Rear Panel
Item Description Function
1 To Wall (Video In) Coax input for home video network
2 To TV (Video Out) Coax output for TV or VCR
3 Network Ethernet Port
4 eSATA eSATA connector not currently supported, reserved for future use
5 Y PB PR Components to connect video output to an HDTV
6 S-Video Video output for VCR or TV with S-Video connections
7 Video Out RCA output to connect to TV, VCR, DVD recorder or other device
8 Audio Out L & R Left and Right RCA stereo audio output
9 Optical S/PDIF audio output to a digital home theater receiver menu
10 HDMI Input for high-definition TV or home theater receiver
with HDMI connection
11 USB USB 2.0 connector, not currently supported, reserved for future use
12 Power +12V DC DC power adaptor connection
1 113 5 6 9 102 7 8 124
