LightStream 1010 ATM Switch PCMCIA Flash Memory Card Installation Guide 3
Installing and Removing the Flash Memory Card in an ASP

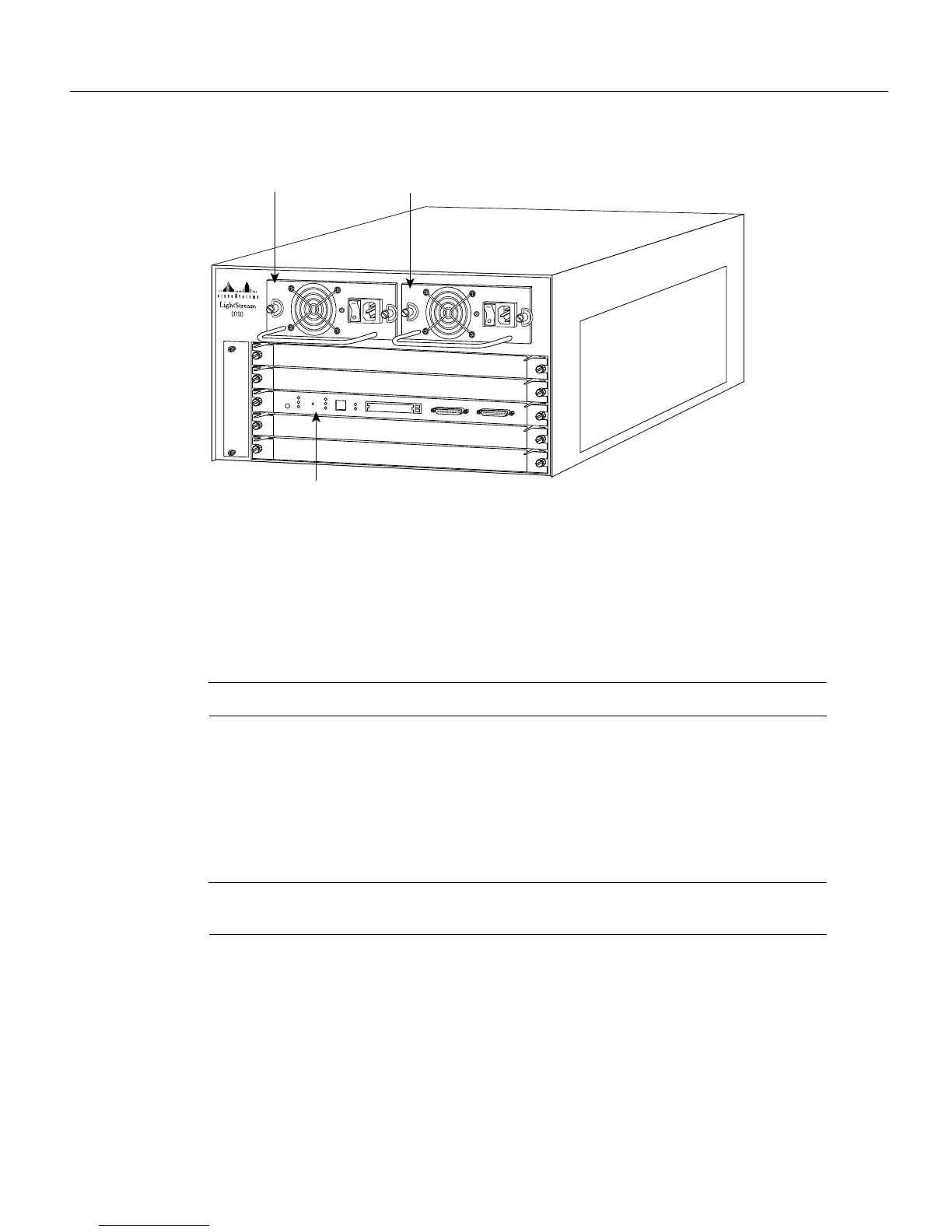

Figure 1 LightStream 1010 ATM Switch Front View
Installing and Removing the Flash Memory Card in an ASP
The ASP has two PCMCIA slots—slot 0 and slot 1—into which you can install a Flash memory
card. Slot 0 is on the bottom and slot 1 on the top (see Figure 2–a). Both slots can be used at the same
time. The following procedure is a generic one and can be used for a Flash memory card in either
slot position.
Note The Flash memory card can be inserted and removed with the power on.
Following is the procedure for installing and removing a Flash memory card:
Step 1 Face the front panel of the ASP, which should appear as shown in Figure 1 and hold the
Flash memory card with the connector end of the card toward the slot. The label should face
up as shown in Figure 2–a.
Note The Flash memory card is keyed and cannot be seated the wrong way. The eject button will
not pop out if the card is not properly inserted.
H5596
Power supply 0
Power supply 1
ATM switch processor
PS1
PS2
FAN
LINK
SLOT 2
SLOT 1
PCMCIA
EJECT
AUX
CONSOLE
Enet
RX
TX
RESET
SWITCH/PROCESSOR
