Chapter 3: Getting to Know the Voice Gateway
The Front Panel
The Front Panel
The Voice Gateway’s LEDs, which inform you about network activities, are located on the front panel.
Power Green. The Power LED lights up when the Voice Gateway is powered on and connected to
the Internet. It flashes when the Voice Gateway is not connected to the Internet. The LED
also flashes when the Voice Gateway is booting up or upgrading its firmware.
ETHERNET Green. The ETHERNET LED lights up when there is an active connection through the
ETHERNET port. If the LED is flashing, then there is traffic moving through that port.
PHONE Green. The PHONE LED is solidly lit when a telephone or fax machine has an active or
registered connection to your Internet Telephony Service Provider (ITSP) through the PHONE
port. It flashes when the phone is being used or is off the hook.
LINE Green. The LINE LED lights up when the a telephone or fax machine has an active
connection to traditional phone service through the LINE port.
Proceed to “Chapter 4: Getting Started.”

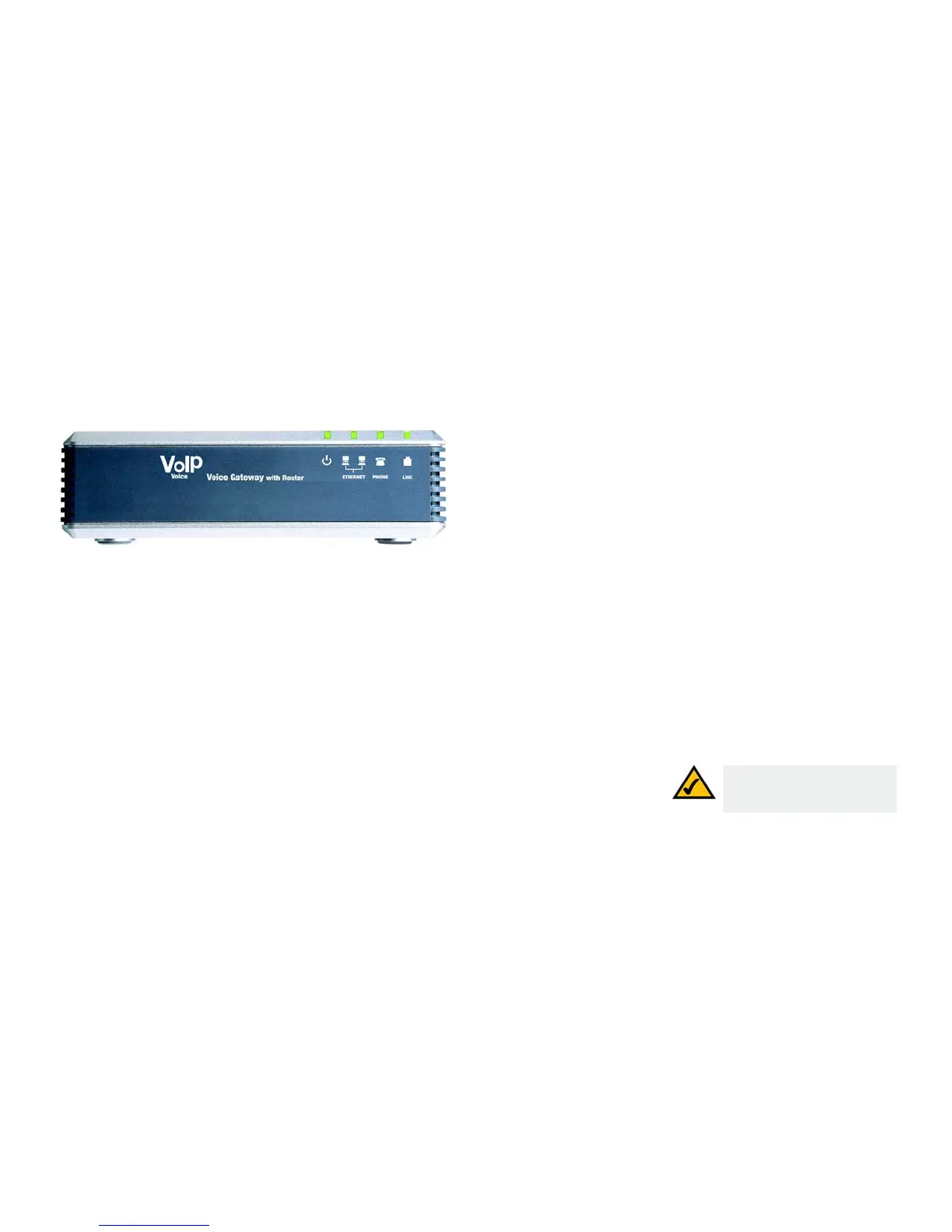

Figure 3-2: Front Panel
NOTE: The LINE port will be
active only if you have
traditional phone service.
To Next Page
