Cisco MDS 9000 Series Rack Installation

1-4
Cisco MDS 9250i Multiservice Fabric Switch Hardware Installation Guide
OL-29583-01
Appendix 1 Rack Installation
Installing and Removing the Brackets
Installing the Shelf Bracket Kit into a Four-Post EIA Rack
Figure 1-1 shows the installation of the shelf bracket kit into a four-post EIA rack.

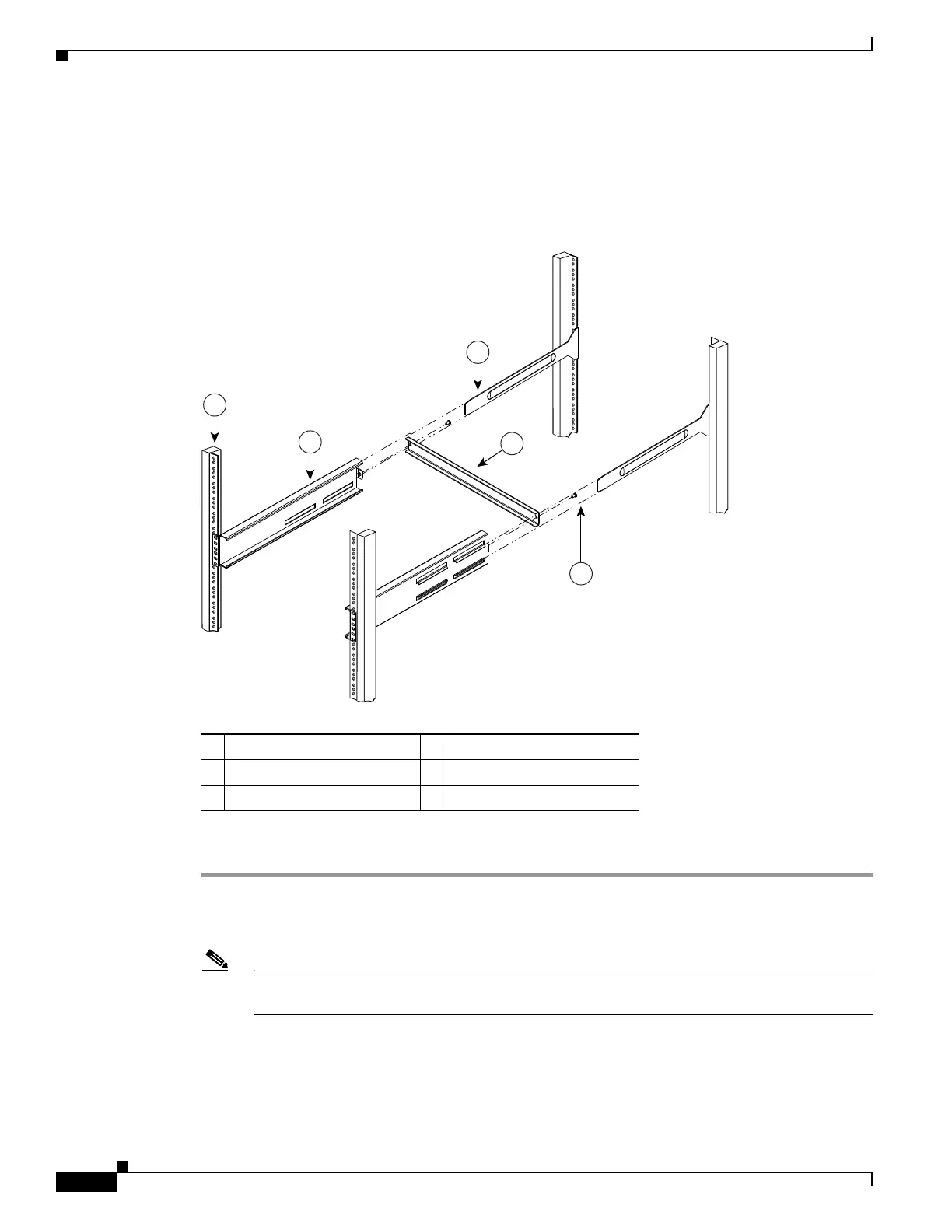

Figure 1-1 Installing the Shelf Bracket Kit into an EIA Rack
To install the shelf bracket in an EIA rack, follow these steps:
Step 1 Position a shelf bracket inside the rack-mounting rails as shown in Figure 1-1. Align the screw holes at
the front of the shelf bracket with the holes in the front rack-mounting rail. Attach the shelf bracket to
the front rack-mounting rail using a minimum of four 12-24 or 10-24 screws.
Note The bottom hole of the shelf bracket should align with the bottom hole of a rack unit on the
rack-mounting rail (the hole immediately above the 1/2-in. spacing).
Step 2 Repeat with the other shelf bracket.
Step 3 Verify that the shelf brackets are at the same height (using the level or tape measure as desired).
1 Rack-mounting rail (4x) 4 Crossbar
2 Shelf bracket (2x) 5 10-32 screws (2x)
3 Slider rail (2)
1
2
3
5
4
105087

Cisco MDS 9000 Series Specifications

General

Category	Switch
Operating System	Cisco NX-OS
Ports	Varies by model
Protocols	Fibre Channel (FC), Fibre Channel over IP (FCIP), iSCSI
Redundancy	Redundant supervisors, power supplies, and fans
Management	Cisco Data Center Network Manager (DCNM), CLI, SNMP
Virtualization Support	VSANs (Virtual SANs)
Security Features	Fibre Channel Security Protocol (FC-SP)
Hot Swappable Components	power supplies, fans
Power Supply Options	AC and DC options available
