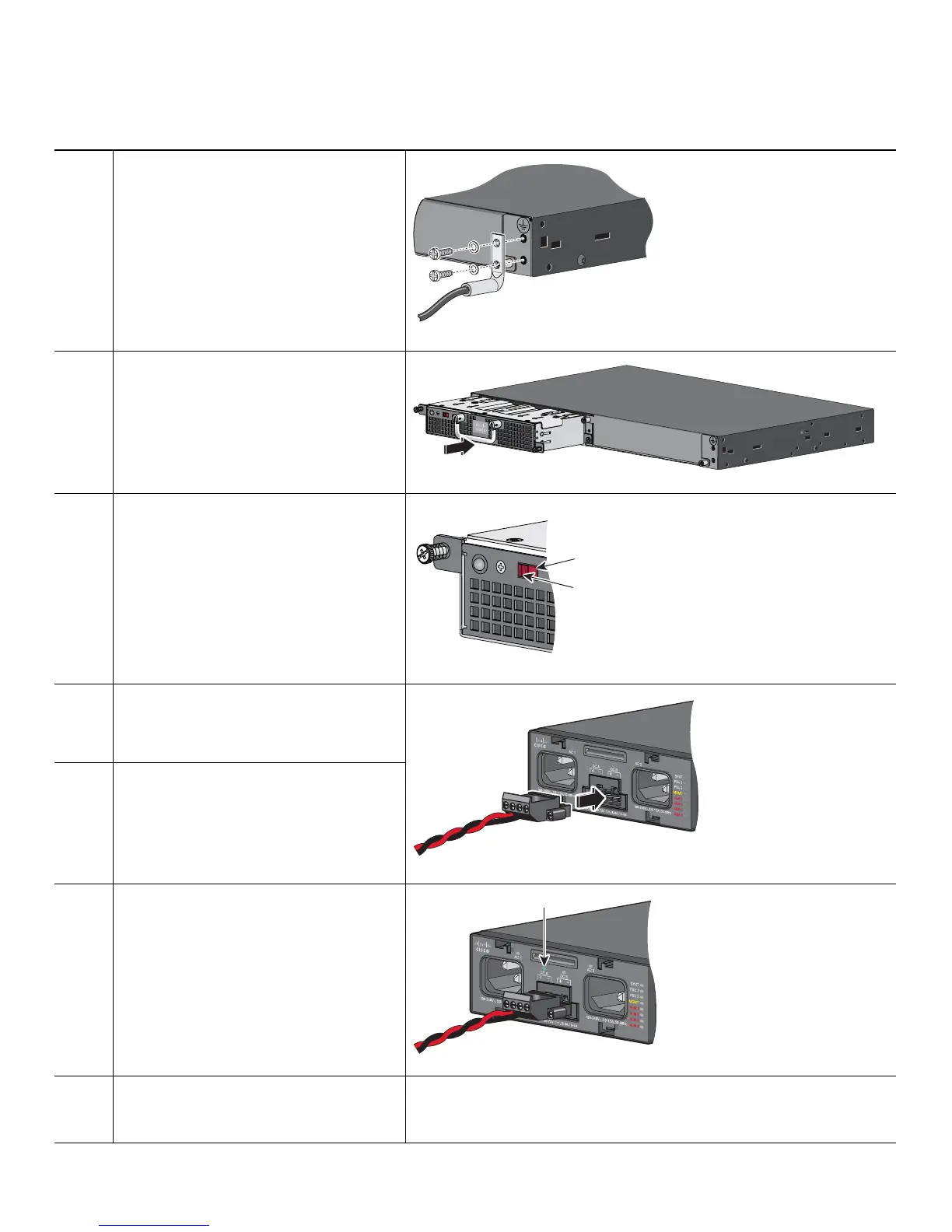

Install the DC Power-Supply Module
Step 1
Attach the ground lug to a ground wire
(connected to a ground connection), and
attach the ground lug to the switch rear
panel.
Step 2
Insert the power-supply module in the
rear-panel slot, and align and tighten the
retainer screws.
Step 3
Set the DC voltage selector on the
power-supply module:
• Telecom: –48 VDC
• Industrial: +24 VDC
Step 4
Use 16-gauge copper wire to connect the
DC input power source and connect it to
the DC power connector on the switch
front panel.
Step 5
Turn on the power.
Step 6
On the switch front panel, verify that the
DC power-supply LED is green for that
module.
Step 7
If installing only one power supply, enter
this command to suppress alerts:
If installing two, no commands are needed.
switch# no power-supply dual dc-feed
switch# end
250451
250450
PSU OK
+24V -48V
D
C
250452
PSU OK
+24V -48V
250453
250454

Cisco ME 3400E Specifications

General

Category	Switch
Form Factor	Rack-mountable
RAM	128 MB
Flash Memory	32 MB
Power Device	Internal power supply
Model	ME 3400E
Management	Yes
Remote Management Protocol	SNMP, Telnet
Jumbo Frame Support	Yes
Routing Protocol	Static routing
Features	VLAN support, IGMP snooping, Quality of Service (QoS), Port Security
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x
Power Supply	AC 120/230 V (50/60 Hz)
Dimensions (H x W x D)	4.4 cm x 44.5 cm x 30 cm
Operating Temperature	0 to 45°C
Relative Humidity	10 - 95% (non-condensing)
Power over Ethernet	Optional (PoE models available)
Weight	4.8 kg
Storage Temperature	-25 to 70°C
