Chapter 2 Switch Installation
Installing the Switch
Attaching Brackets for 23-Inch Racks

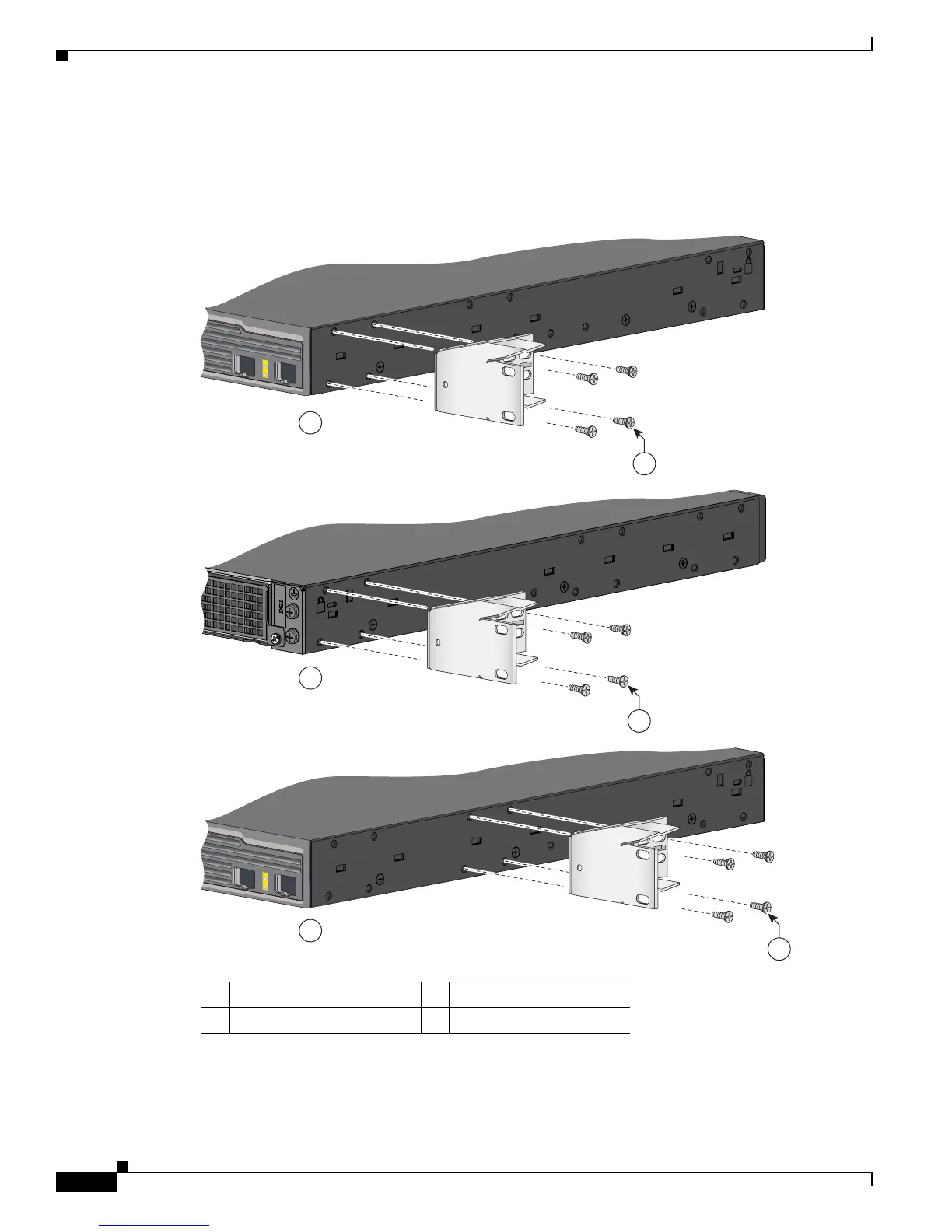

Figure 2-3 shows how to attach brackets for the 23-inch racks on the switch.
Figure 2-3 Attaching Brackets for 23-Inch Racks
1 Phillips flat-head screws 3 Rear-mounting position
2 Front-mounting position 4 Mid-mounting position
1
2
1
2
2
3
4
207496
1
1
1
