Cisco ME 3600X Installation Guide

B-3
Cisco ME 3800X and ME 3600X Switch Hardware Installation Guide
OL-22168-01
Appendix B Connector and Cable Specifications
Connector Specifications

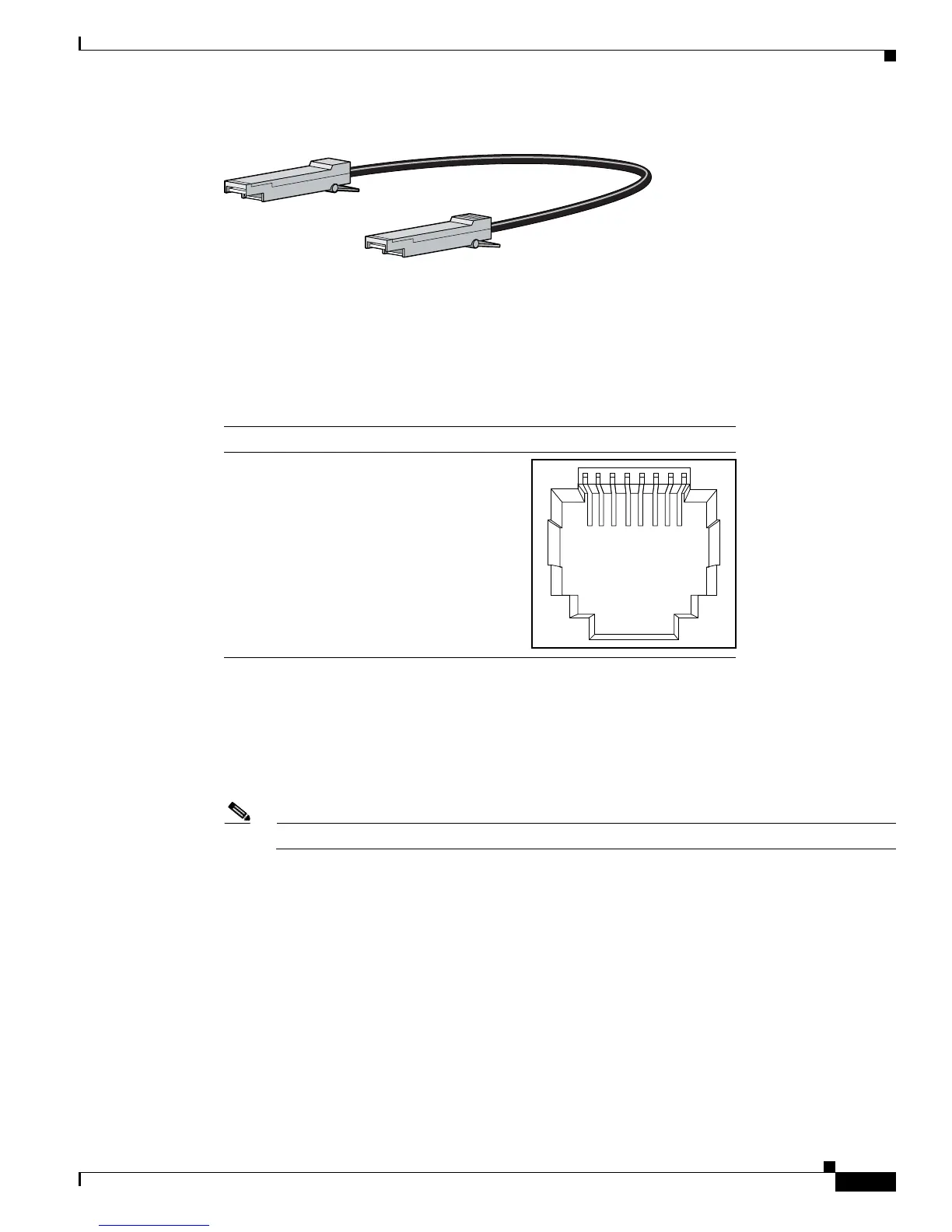

Figure B-5 SFP Module Patch Cable
10/100/1000 Ethernet Management Port
The 10/100/1000 Ethernet management port uses standard RJ-45 connectors with Ethernet pinouts.
Figure B-6 10/100/1000 Port Pinouts
Alarm Input Port
The alarm input port uses a standard RJ-45 connector. See “Alarm Input Port” section on page 1-3 for
more information.
Note We recommend using a shielded cable grounded at both ends for NEBS.
126809
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
