B-2
Cisco ME 3800X and ME 3600X Switch Hardware Installation Guide
OL-22168-01
Appendix B Connector and Cable Specifications
Connector Specifications
SFP and SFP+ Module Connectors

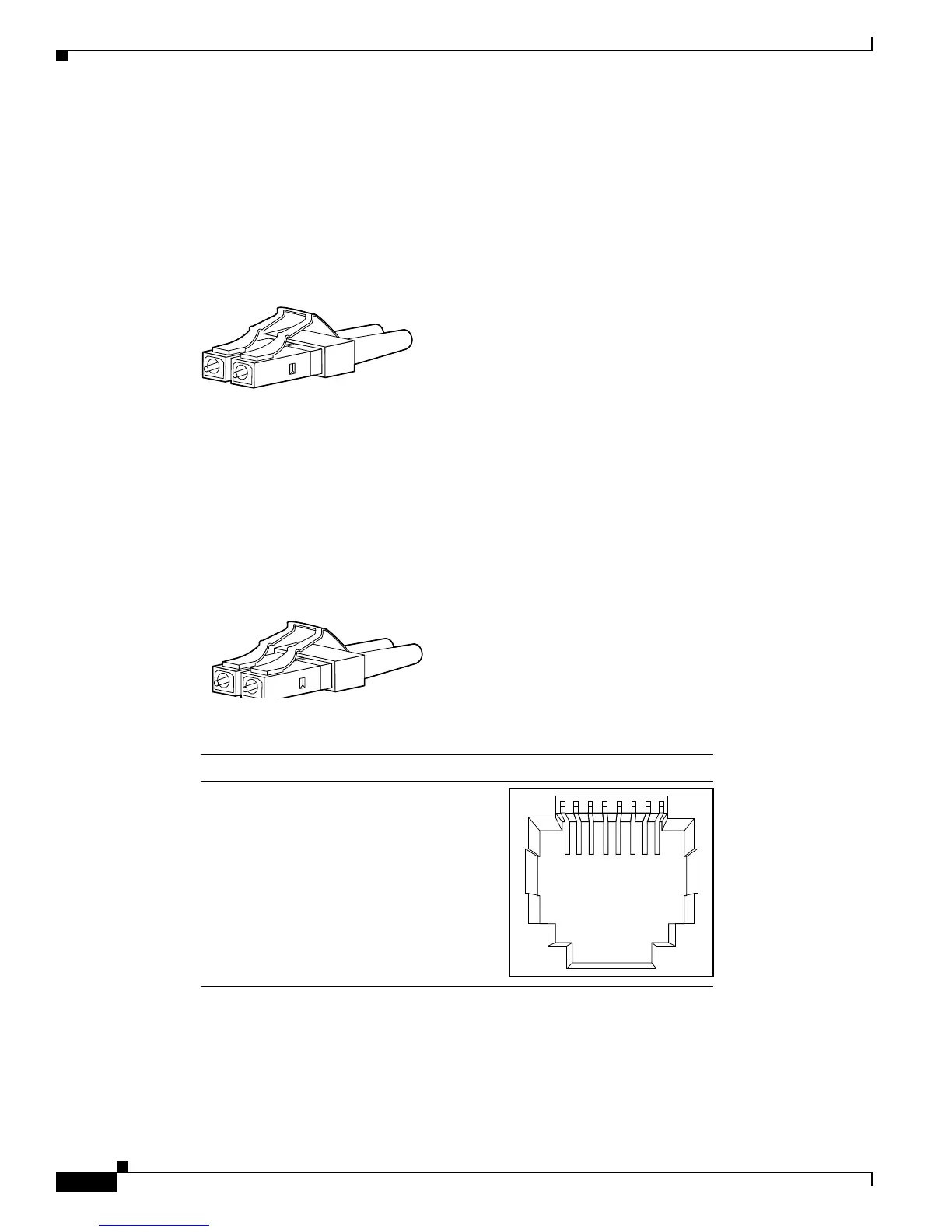

Figure B-2, Figure B-3, and Figure B-4 show the SFP module connectors.
The Cisco ME 3800X and ME 3600X switches support the SFP module patch cable, a 0.5-meter, copper,
passive cable with SFP module connectors at each end (Figure B-5). The patch cable can connect two
Cisco ME 3800X and ME 3600X switches in a cascaded configuration.
Figure B-2 Duplex LC Cable Connector
Figure B-3 Simplex LC Cable Connector
Figure B-4 Copper SFP Module RJ-45 Connector
58476
8476
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
