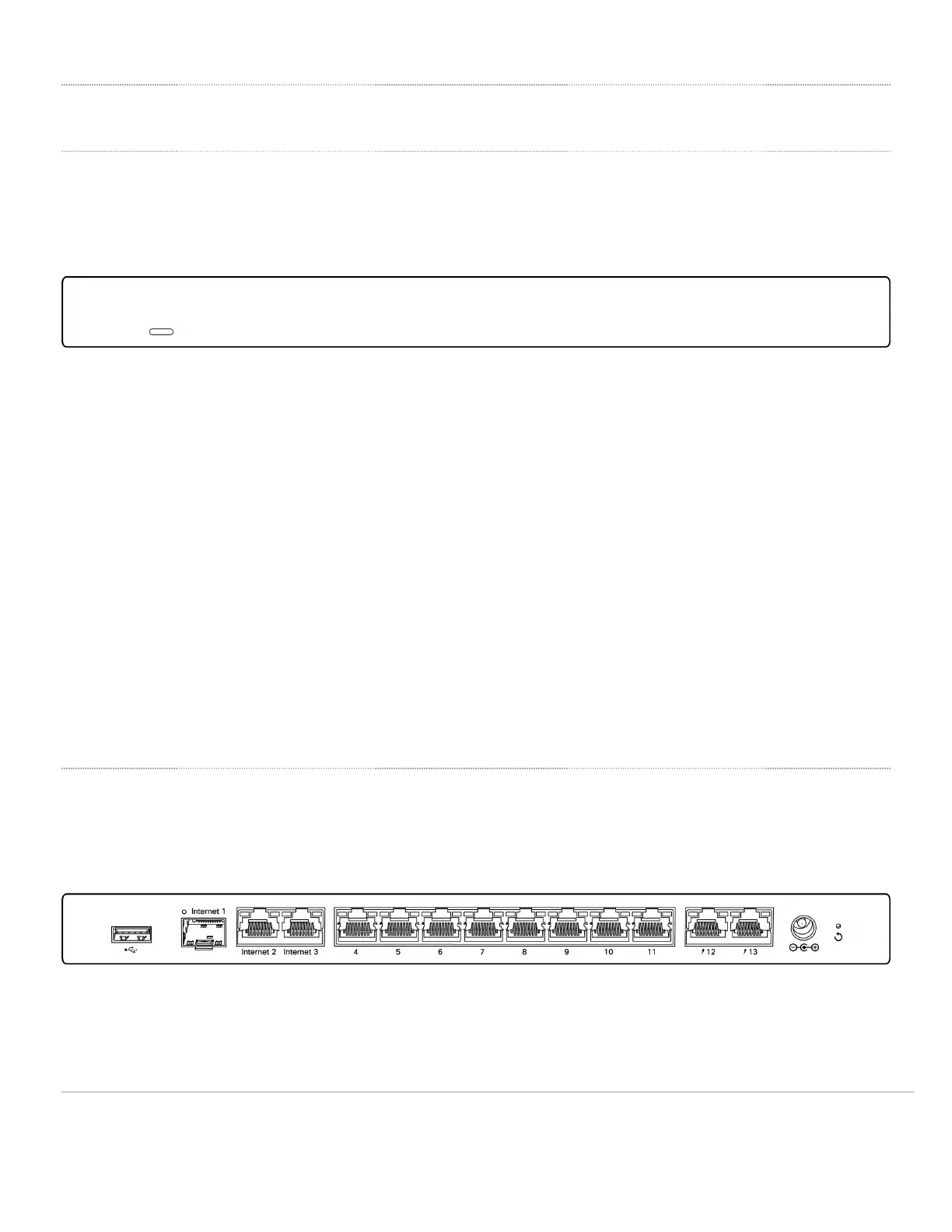

Product View and Physical Features
Front Panels
MX75
Status Indicator
The MX75 series devices uses an LED to inform the user of the device's status. LED patterns and their meanings are described below.
LED Status Meaning
Solid orange
Power is applied but the appliance is not connected to the Meraki
Dashboard
Rainbow Colors The appliance is attempting to connect to Meraki Dashboard
Flashing White Firmware upgrade in progress
Solid White
Fully operational/connected, uplink actively using wired WAN
Solid Purple Fully operational/connected, uplink actively using integrated cellular failover
