Cisco Meraki MX68 Hardware Installation Guide

MX75 Back Panel Functions
Additional functions on the back panel are described below, from left to right.
USB port USB 3.0 port for debugging.
WAN / Internet port This port provides connectivity to the WAN.
LAN ports
These 10 ports provide connectivity to computers, printers, access points, or
Ethernet switches.
A steady green LED indicates bidirectional connectivity, and flashing green
indicates traffic.
Power input Designed for use only with the unit’s power supply.
Reset button
Insert a paper clip if a reset is required.
Press for 1 second to delete a downloaded configuration and reboot.
Press and hold for more than 10 seconds to force a full factory reset.

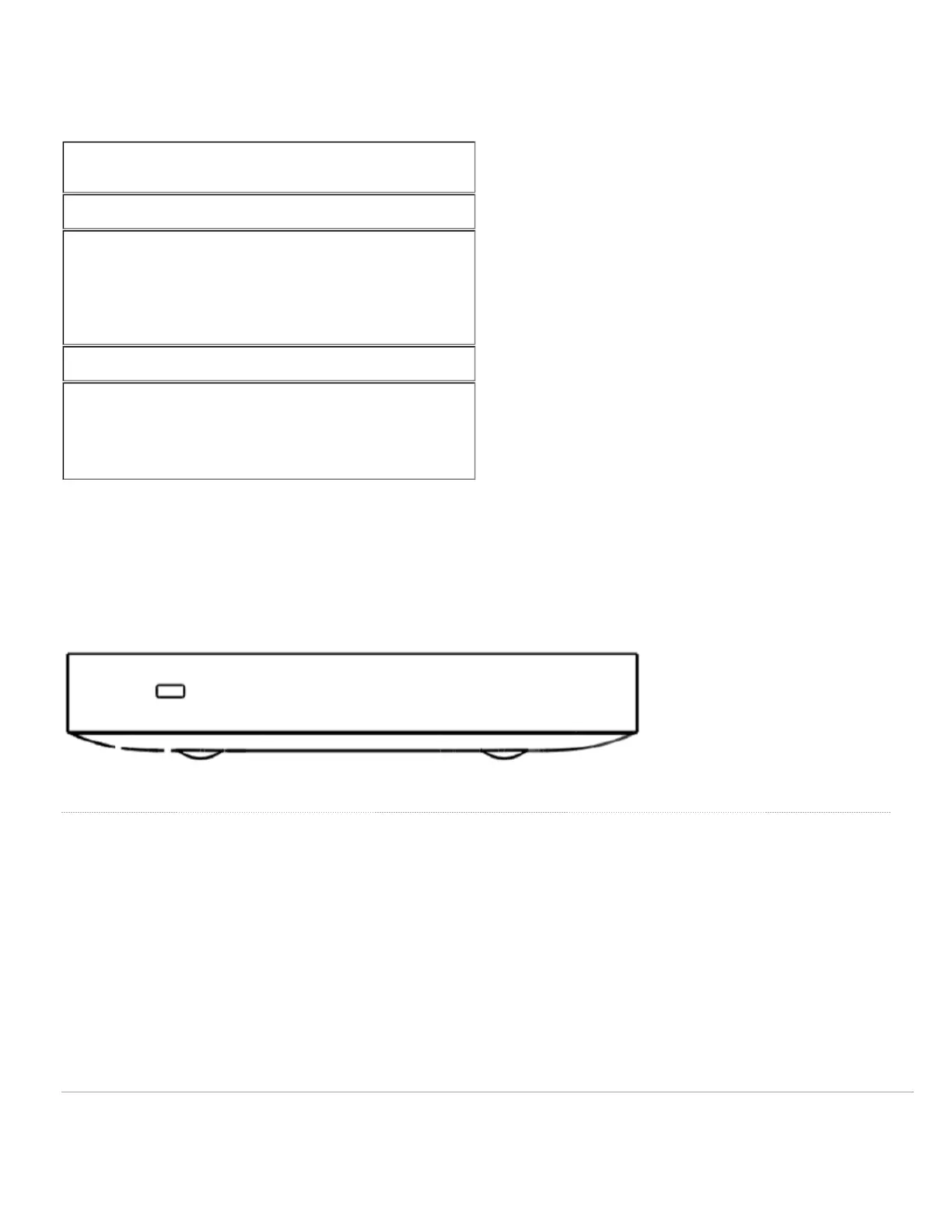

Side Panels
MX75
Bottom Panel
5

Cisco Meraki MX68 Specifications

General

Model	MX68
Category	Security System
WAN Interfaces	2 x GbE
Recommended Clients	50
Firewall Throughput	450 Mbps
VPN Throughput	200 Mbps
Maximum VPN Tunnels	50
USB Interface	1 x USB 2.0
Operating Temperature	32°F to 104°F (0°C to 40°C)
LAN Interfaces	4 x GbE
Power Supply	DC 12V
Operating Humidity	5% to 95% non-condensing
